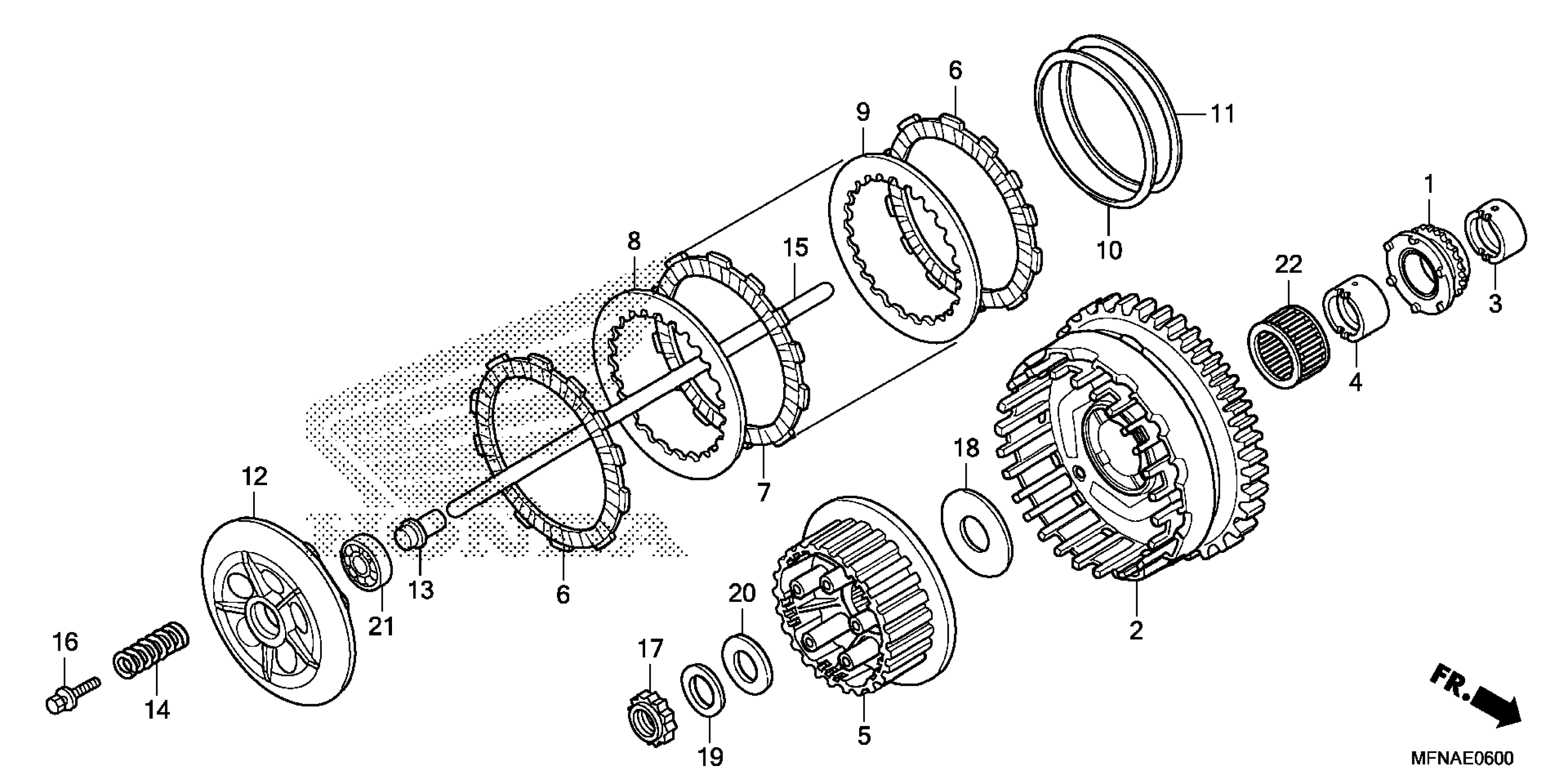

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MEL-003

$56.85

2

CLUTCH OUTER A (77T) (INDENT MARK A)

22100-MEL-020

$356.90

2

CLUTCH OUTER B (77T) (INDENT MARK B)

22110-MEL-020

$341.51

3

COLLAR, OIL PUMP SPROCKET

22116-MEL-000

Unavailable

4

GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)

22117-MEL-000

$18.36

4

GUIDE B, CLUTCH (OUTER) (2MM HOLE)

22118-MEL-000

$17.57

5

CENTER, CLUTCH

22120-MEL-000

$113.71

6

DISK, CLUTCH FRICTION

22201-MBB-000

$19.45

7

DISK, CLUTCH FRICTION

22201-MEL-000

$13.86

8

PLATE, CLUTCH (2.3)

22321-MEL-000

$13.84

9

PLATE B, CLUTCH (2.3)

22322-MEL-000

$13.84

10

SPRING, CLUTCH PLATE

22325-MEL-000

$10.69

11

SEAT, JUDDER SPRING

22326-MEL-000

$6.62

12

PLATE, CLUTCH PRESSURE

22350-MFA-D00

$54.85

13

PIECE, CLUTCH JOINT

22366-MM5-000

$22.56

14

SPRING, CLUTCH

22401-MCH-000

$4.41

15

ROD, CLUTCH LIFTER

22850-MEL-000

$26.71

16

BOLT-WASHER (6X32)

90022-MAT-000

$4.67

17

NUT, LOCK (25MM)

90231-MS2-610

$17.24

18

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$14.66

19

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.35

20

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.54

21

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$14.15

21

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$14.15

21

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$14.15

21

BEARING, RADIAL BALL (16003)

91011-KK6-013

$14.15

22

BEARING B, NEEDLE (35X41X23.8) (WHITE) This part replaces 91101-MEE-003.

91102-MEE-003

$6.25

22

BEARING B, NEEDLE (35X41X23.8) (WHITE)

91102-MEE-003

$6.25

22

BEARING B, NEEDLE (35X41X23.8) (WHITE) This part replaces 91103-MEE-003.

91102-MEE-003

$6.25
