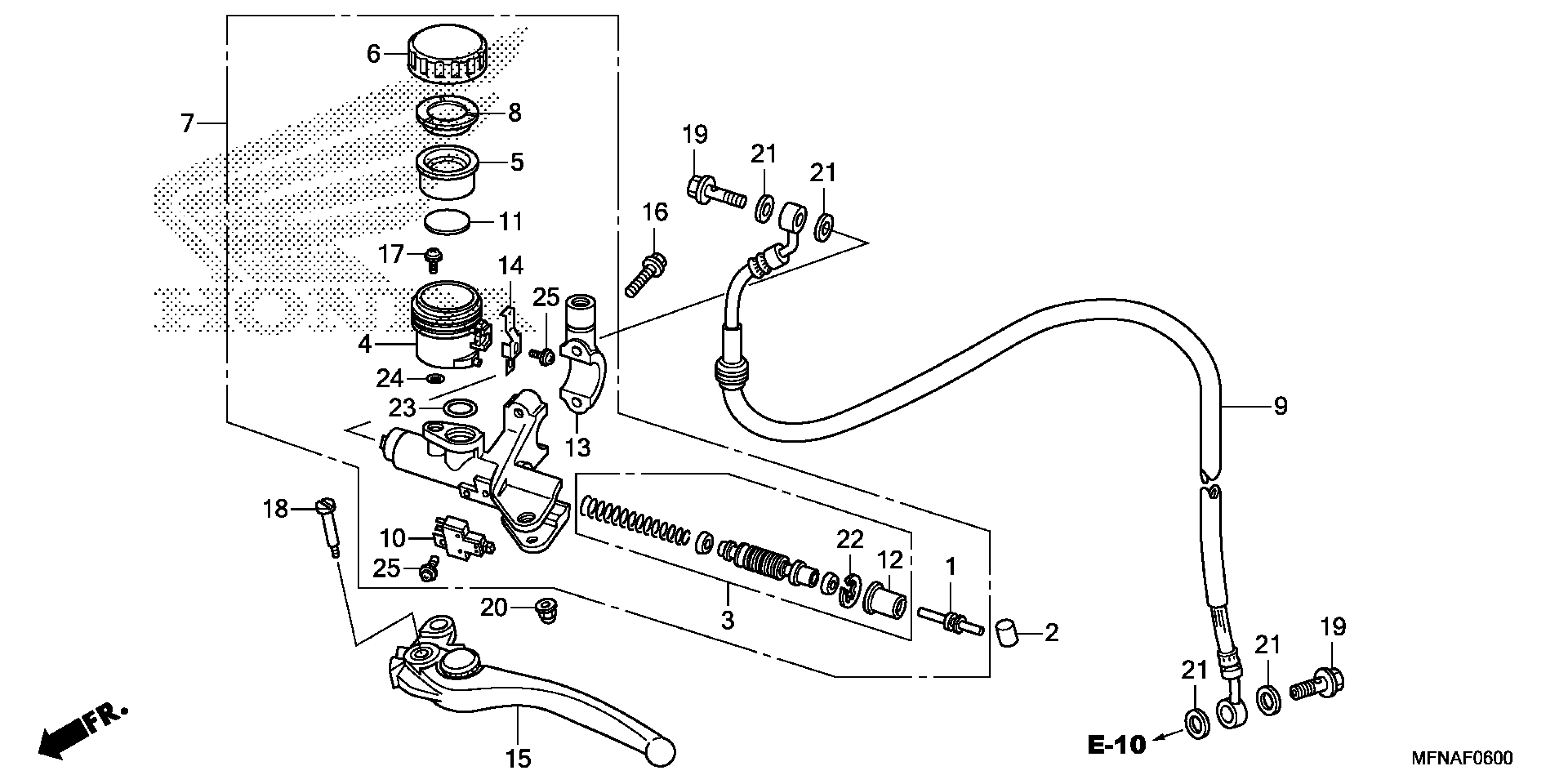

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MAT-E01

$17.78

BUSH

22885-MB0-006

$11.88

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$52.37

CUP, OIL

22887-MFN-D01

$10.00

DIAPHRAGM (NISSIN)

22888-MR7-006

$13.93

CAP, CLUTCH OIL CUP (NISSIN)

22889-MR7-006

$35.87

MASTER CYLINDER SUB-ASSY., CLUTCH (COO)

22890-MFN-305

$316.43

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$10.69

HOSE, CLUTCH

22900-MFN-D61

$66.34

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

FLOAT

43523-MFL-006

$2.90

BOOT

45504-MAT-E01

$9.79

HOLDER, MASTER CYLINDER

45517-MFN-D01

$12.87

PLATE, STOP

45535-MR8-901

$5.20

LEVER, L. HANDLE This part replaces 53180-MCF-305.

53180-MCF-D62

$78.93

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.87

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

O-RING (14.8X2.4)

91212-422-006

$2.37

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.00

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
