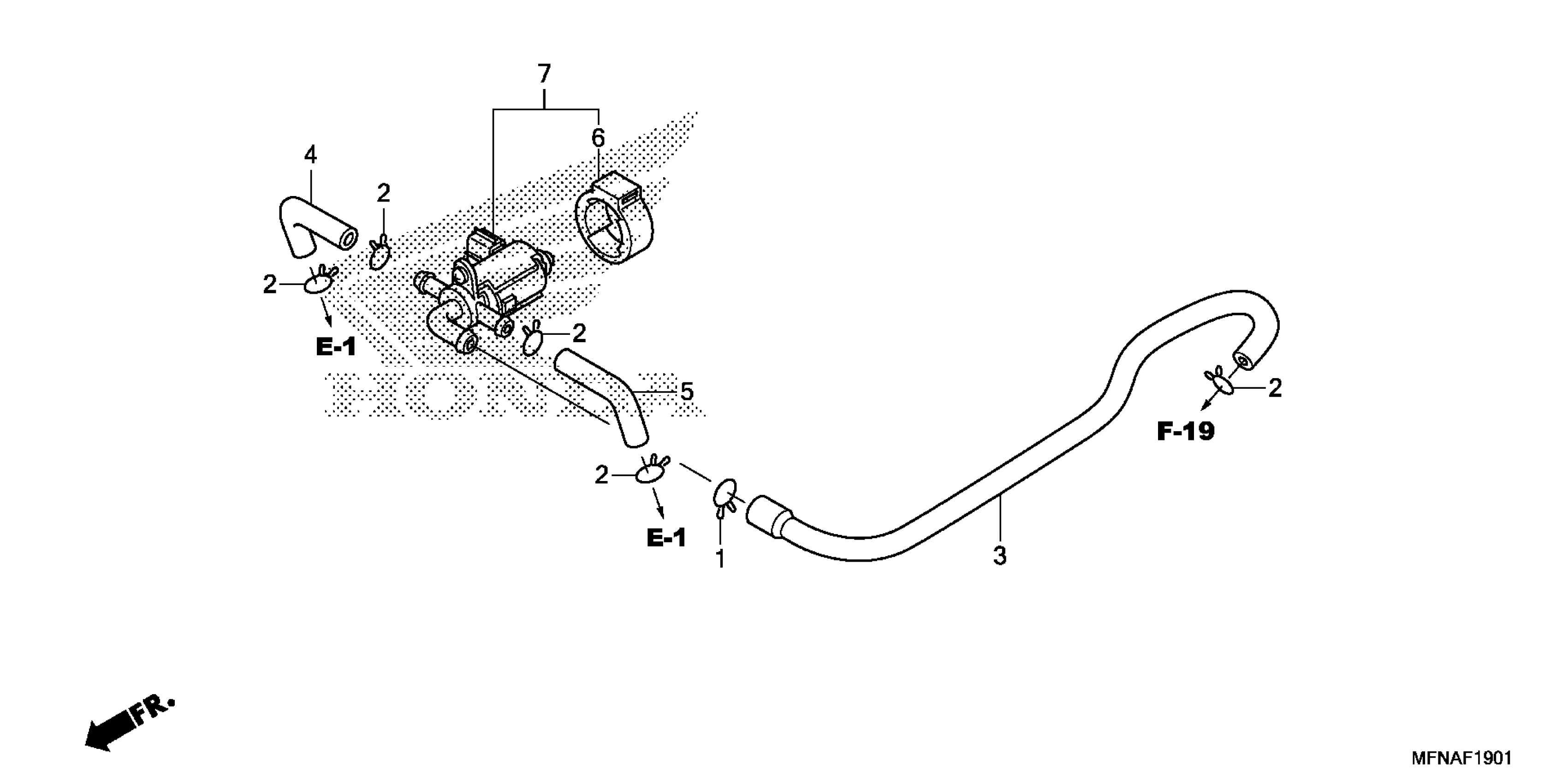

Honda CB1000R4AC (16) MOTORCYCLE, ITA, VIN# ZDCSC601-GF225001 AIR INJECTION CONTROL VALVE Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

2

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

3

TUBE A, AIR INJECTION CONTROL VALVE

18651-MFN-D00

$12.03

4

TUBE B, AIR INJECTION CONTROL VALVE

18652-MFN-D00

$4.21

5

TUBE C, AIR INJECTION CONTROL VALVE

18653-MFN-D00

$2.86

6

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$3.01

7

VALVE ASSY. This part replaces 36450-MEL-D21.

36450-MEL-D23

$74.15
