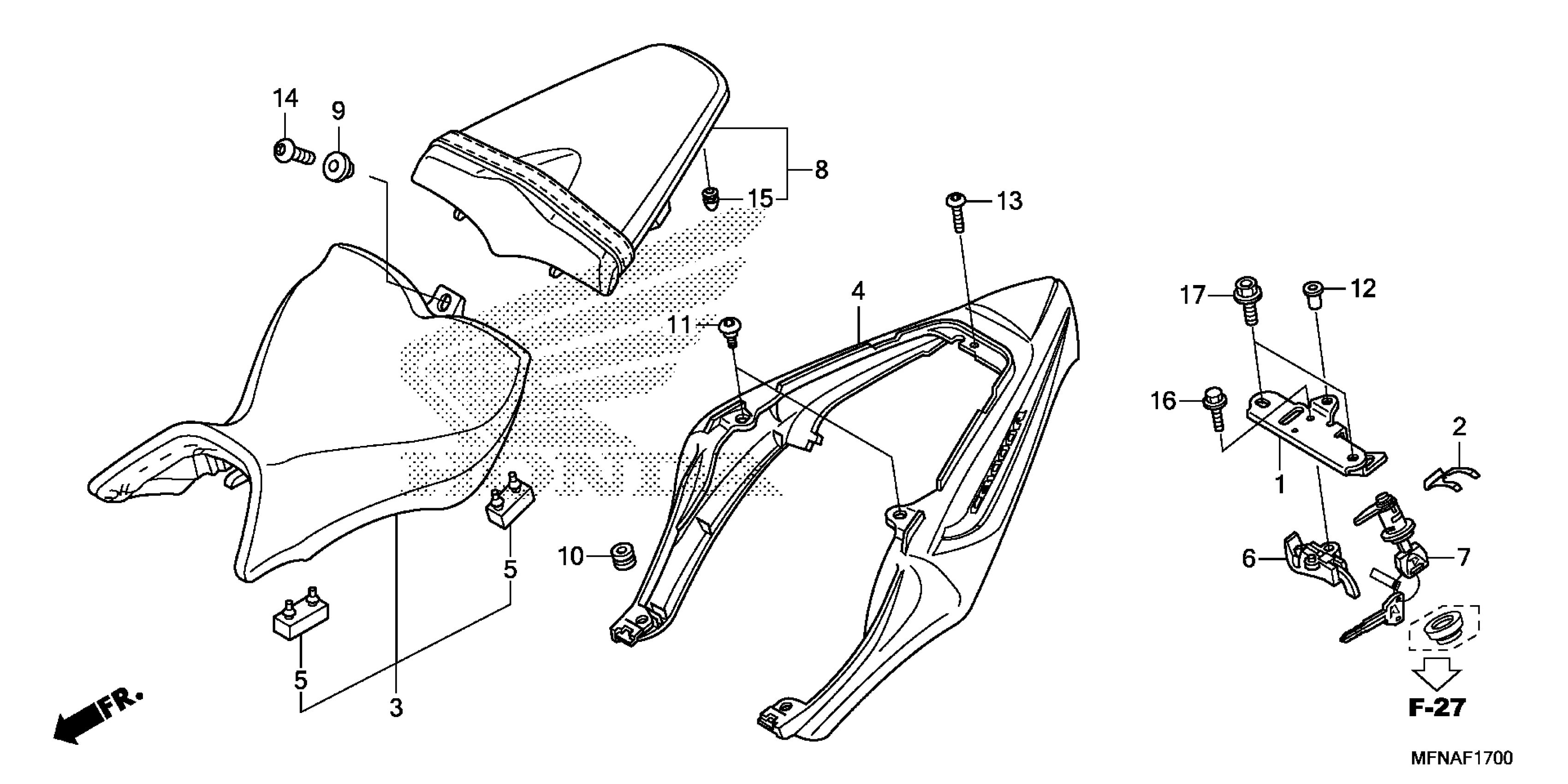

Honda CB1000R4AC (15) MOTORCYCLE, ITA, VIN# ZDCSC601-FF220001 TO ZDCSC601-FF224999 SEAT@REAR COWL Diagram

PLATE, PILLION SEAT CATCH

50206-MFN-D00

$28.08

SPRING, LOCK KEY SETTING

75581-KY4-900

$69.93

SEAT ASSY., SINGLE

77100-MFN-D01

Unavailable

COWL SET, RR. (TYPE2) (WL)

77200-MFN-730ZA

$326.98

RUBBER B, SEAT SETTING

77208-MBZ-K00

$8.25

HOOK, SEAT CATCH

77220-MFN-D00

$26.38

LOCK ASSY., SEAT

77225-MFN-D01

$45.51

SEAT ASSY., PILLION

77300-MFN-D01

$215.48

COLLAR, RR. GARNISH

80151-KGB-610

$6.75

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

SCREW, PAN (6X11)

90106-KY2-701

$4.24

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

BOLT, SOCKET (8X16)

90128-KBH-000

$3.65

PLUG, CONE TYPE

90899-422-610

$1.89

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (8X16)

96300-08016-00

$1.49
