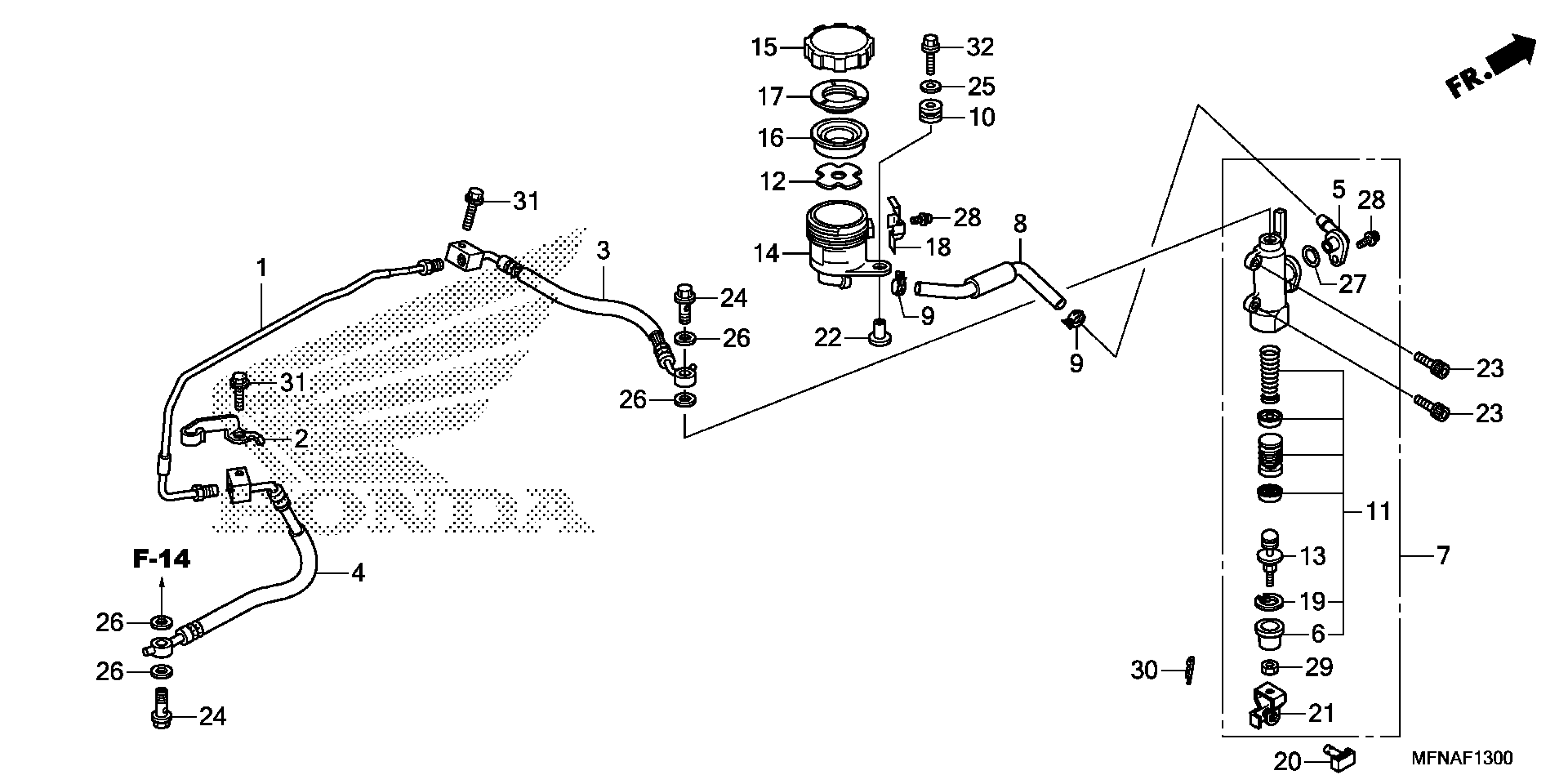

Honda CB1000R4AC (15) MOTORCYCLE, ITA, VIN# ZDCSC601-FF220001 TO ZDCSC601-FF224999 REAR BRAKE MASTER CYLINDER Diagram

PIPE E, RR. BRAKE

43135-MFN-D00

$14.38

STAY, RR. BRAKE PIPE

43161-MFN-D00

$5.20

HOSE A, RR. BRAKE

43310-MFN-D01

$34.52

HOSE C, RR. BRAKE

43312-MFN-D01

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MFN-D01

$6.20

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. (COO)

43510-MFN-305

$224.07

HOSE, RR. BRAKE MASTER CYLINDER

43512-MFN-D01

$11.72

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

RUBBER, OIL CUP

43516-MCJ-006

$4.23

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.02

ROD, PUSH

43530-KV3-701

$18.06

CUP, OIL

45511-MEL-D21

$8.83

CAP, OIL CUP

45513-MEL-D21

$16.55

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

PLATE, STOP

45535-MR8-901

$5.07

CIRCLIP

46182-MEL-D21

$1.77

PIN, BRAKE ROD

46503-MAL-000

$5.46

JOINT, BRAKE ROD

46504-MAL-601

$12.20

COLLAR (6.3X13)

50324-425-010

$4.51

SOCKET, BOLT (6X18)

90040-MN5-000

$3.08

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER (6X16)

90473-147-000

$1.26

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X12)

94201-20120

$0.94

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable

BOLT, FLANGE (6X25)

96300-06025-07

$1.72
