Description

Price

1

PAN, OIL

11210-MFN-D00

$227.41

2

GUARD, OIL FILTER

11810-MFA-D00

$15.10

3

RUBBER, OIL FILTER GUARD

11815-MFA-D00

$2.57

4

PUMP ASSY., OIL

15100-MEL-000

$203.11

5

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MEL-000

$46.30

6

CHAIN, OIL PUMP (68L) (BORG WARNER)

15141-MEL-003

$18.52

7

STRAINER, OIL

15150-MFA-D00

$33.92

8

GASKET, OIL STRAINER

15154-MAT-000

$6.16

9

COLLAR, O-RING

15155-MEL-000

$3.75

10

VALVE ASSY., RELIEF

15220-MFA-D00

$39.69

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

12

COOLER, OIL

15700-MFA-D01

$225.41

13

BOLT, FLANGE (6X22)

90004-MFN-D00

$2.49

14

BOLT, FLANGE (6X25)

90005-MFN-D00

$2.38

15

BOLT, FLANGE (6X18) (NSHF)

90006-GHB-640

$1.79

16

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

17

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

18

COLLAR, OIL FILTER GUARD

90402-MFA-D00

$4.85

19

WASHER (6MM)

90403-MFA-D00

$1.72

20

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

20

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

21

O-RING, OIL COOLER

91354-MCT-003

$7.93

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

24

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

25

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

26

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.06

27

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

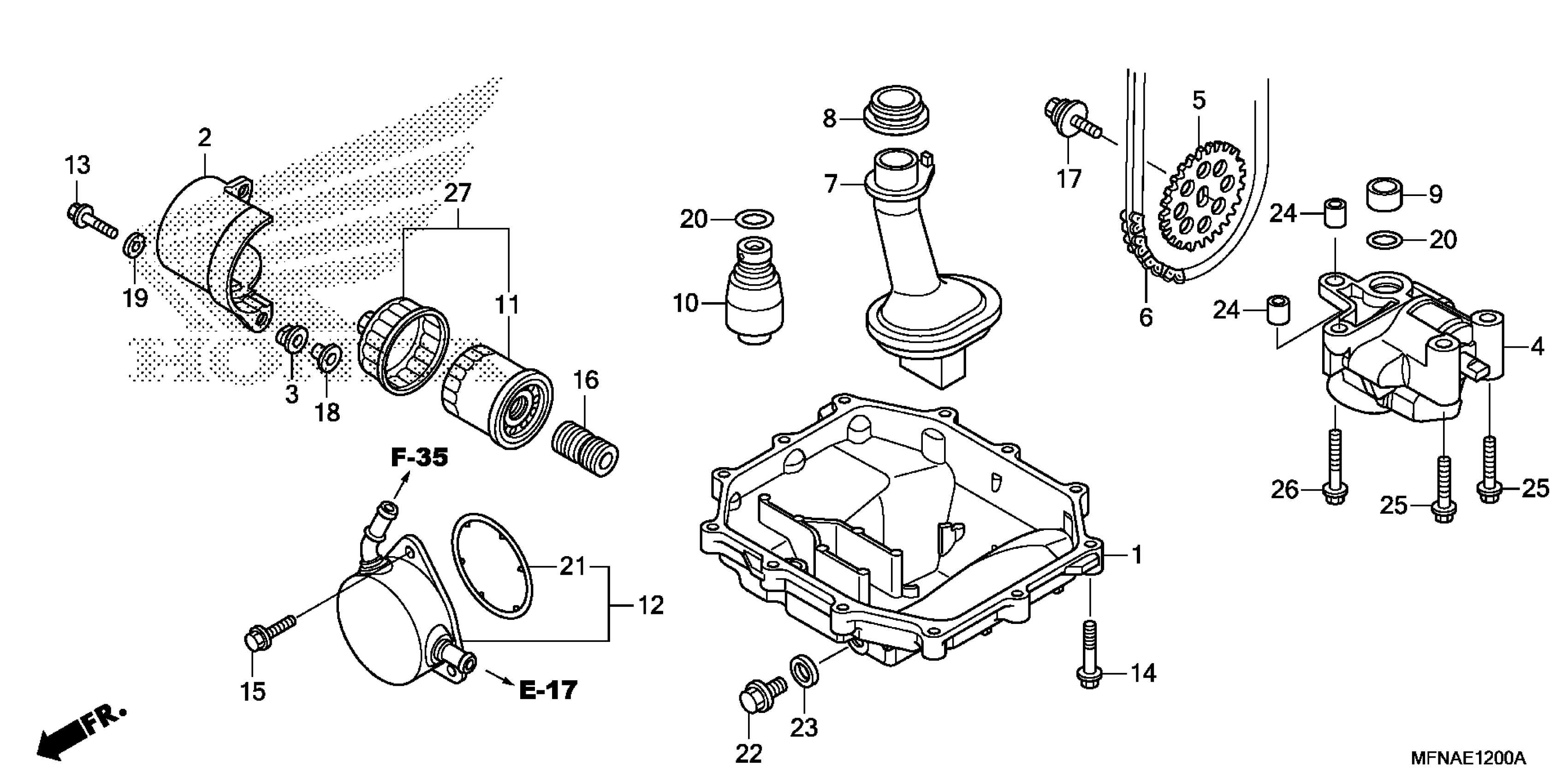

Honda CB1000R4AC (15) MOTORCYCLE, ITA, VIN# ZDCSC601-FF220001 TO ZDCSC601-FF224999 OIL PAN@OIL PUMP Diagram
