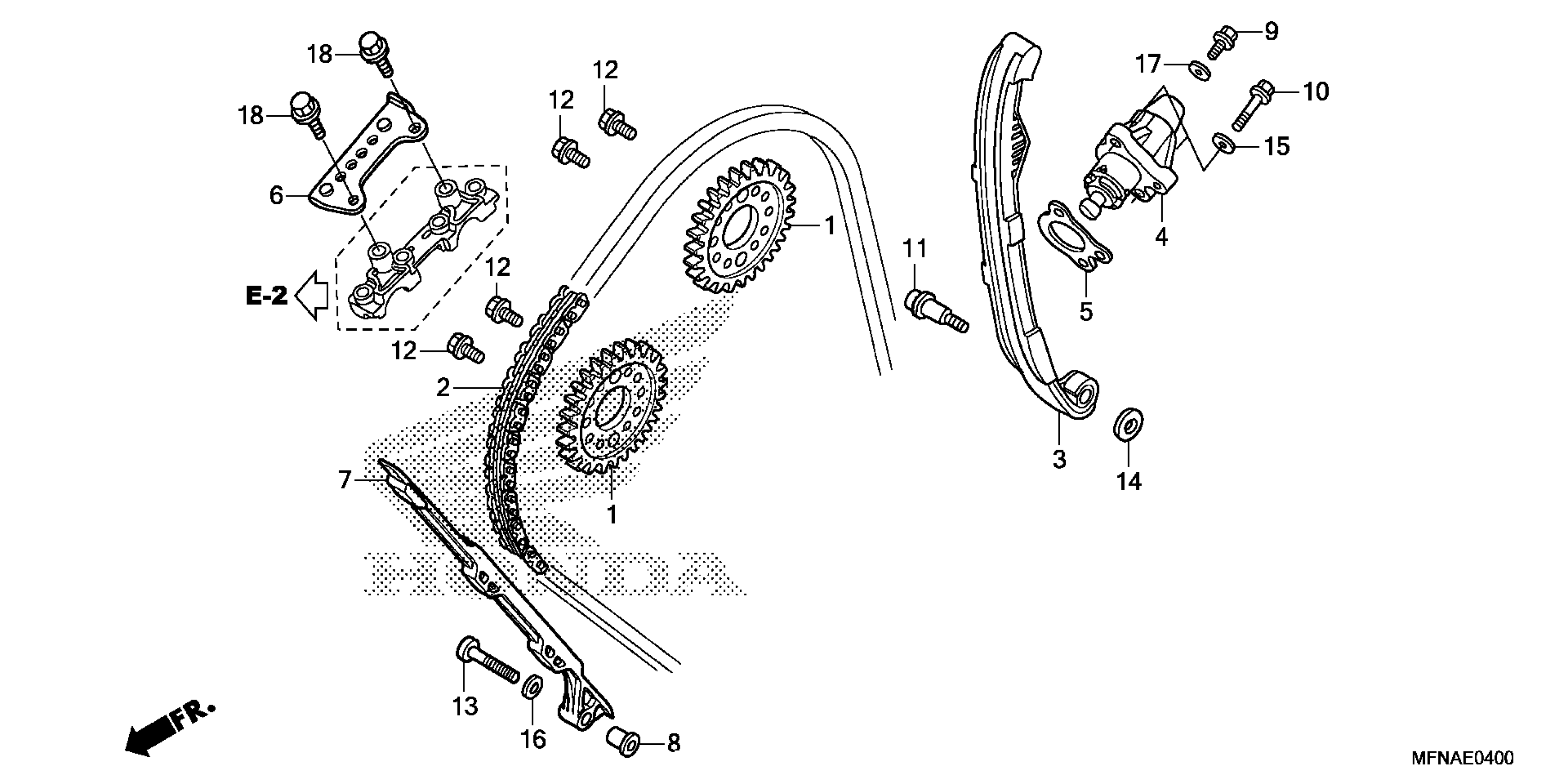

Honda CB1000R4AC (15) MOTORCYCLE, ITA, VIN# ZDCSC601-FF220001 TO ZDCSC601-FF224999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MEL-000

$50.30

CHAIN, CAM (125L) (BORG WARNER)

14401-MAS-013

$112.62

TENSIONER, CAM CHAIN

14510-MFA-D00

$67.15

LIFTER ASSY., TENSIONER

14520-MFN-D01

$105.54

GASKET, TENSIONER HOLE

14525-MFA-D01

$5.89

GUIDE B, CAM CHAIN

14546-MCJ-000

$45.51

GUIDE A, CAM CHAIN (NOK)

14620-MW0-003

$97.31

COLLAR (6MM)

14626-MCJ-000

$2.92

BOLT, FLANGE (6X10)

90001-MFN-D00

$2.34

BOLT, FLANGE (6X25)

90005-MFN-D00

$2.38

PIVOT, CAM CHAIN TENSIONER

90022-MFN-D00

$4.31

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

BOLT, TORX (6X32)

90108-MEL-000

$2.11

WASHER (6MM)

90401-MBW-000

$3.97

WASHER, SEALING (6MM)

90404-HW1-670

$1.87

WASHER (6MM)

90408-KW1-900

$4.23

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
