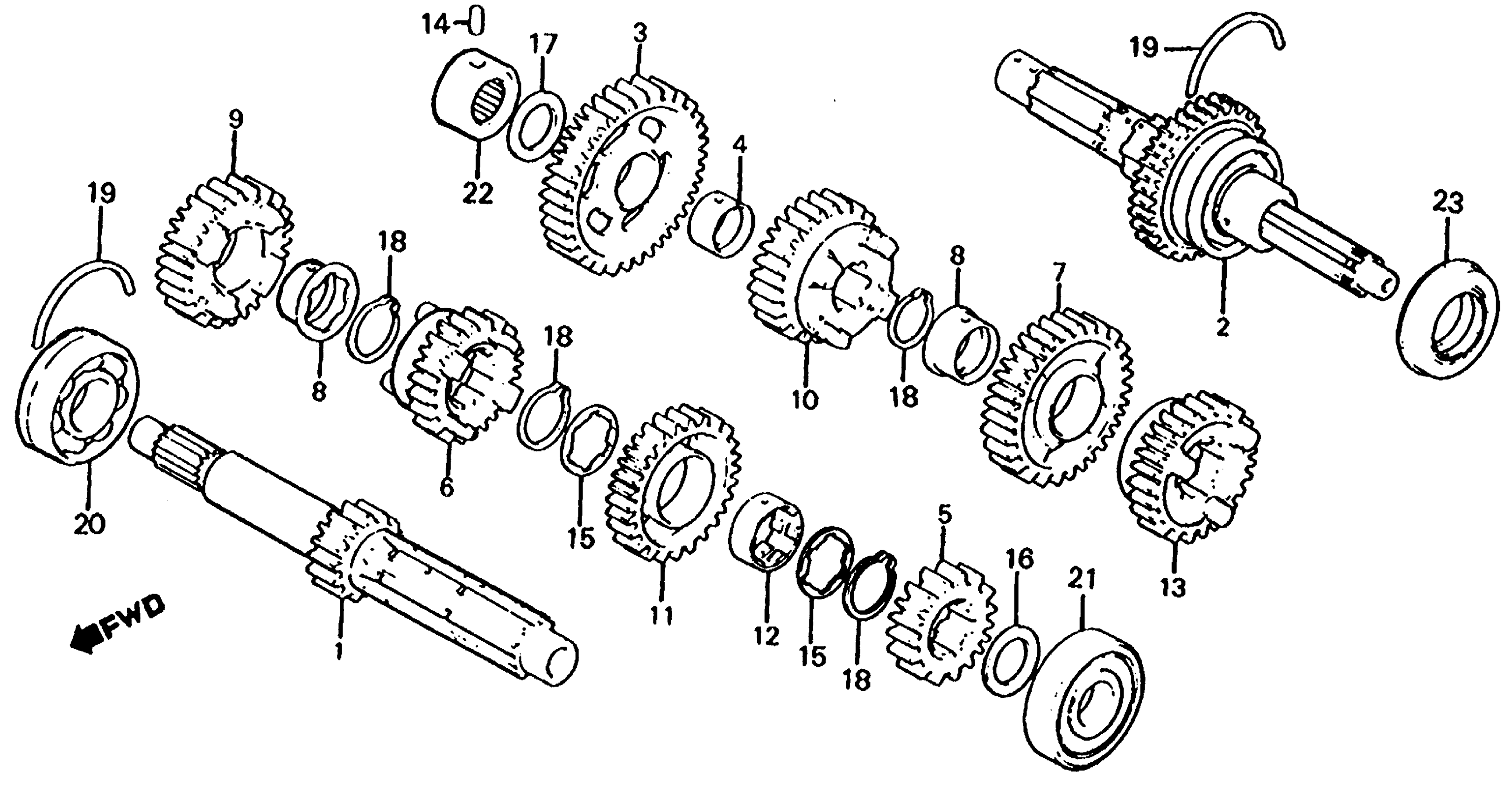

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (16T) (NOT AVAILABLE)

23211-461-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 2004598 This part replaces 23220-461-000.

23220-461-030

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 2004598 This part replaces 23220-461-010.

23220-461-030

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 2004598 This part replaces 23220-461-020.

23220-461-030

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 2004599

23220-461-030

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23411-461-000

Unavailable

4

BUSH, COUNTERSHAFT LOW GEAR (NOT AVAILABLE)

23422-425-000

Unavailable

5

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23431-425-010

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE) | Use up to Engine SN 2006694

23451-MG1-670

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) (NOT AVAILABLE) | Use from Engine SN 2006695 This part replaces 23451-MG5-670.

23451-MG1-670

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T)

23461-MG1-670

Unavailable

8

BUSH (31MM) (NOT AVAILABLE)

23465-MA3-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)

23471-MA3-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (29T)

23481-MG5-670

Unavailable

11

GEAR, MAINSHAFT FIFTH (28T) (NOT AVAILABLE)

23491-MG1-670

Unavailable

12

COLLAR, SPLINE (28X17) (NOT AVAILABLE)

23495-422-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (27T) (NOT AVAILABLE)

23501-MG1-670

Unavailable

14

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

15

WASHER, THRUST (28MM)

90451-422-000

$8.36

16

WASHER, THRUST (22.5MM) (NOT AVAILABLE)

90453-426-000

Unavailable

17

WASHER, THRUST (NOT AVAILABLE)

90457-425-000

Unavailable

18

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

19

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable

20

BEARING, RADIAL BALL (6305) (NTN CORP.)

91003-KY2-003

Unavailable

20

BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91004-438-003.

91003-KY2-003

Unavailable

21

BEARING, RADIAL BALL (63/22U) (NOT AVAILABLE)

91005-425-003

Unavailable

22

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91022-438-008

Unavailable

23

OIL SEAL (40X62X13)

91205-425-003

$32.89
