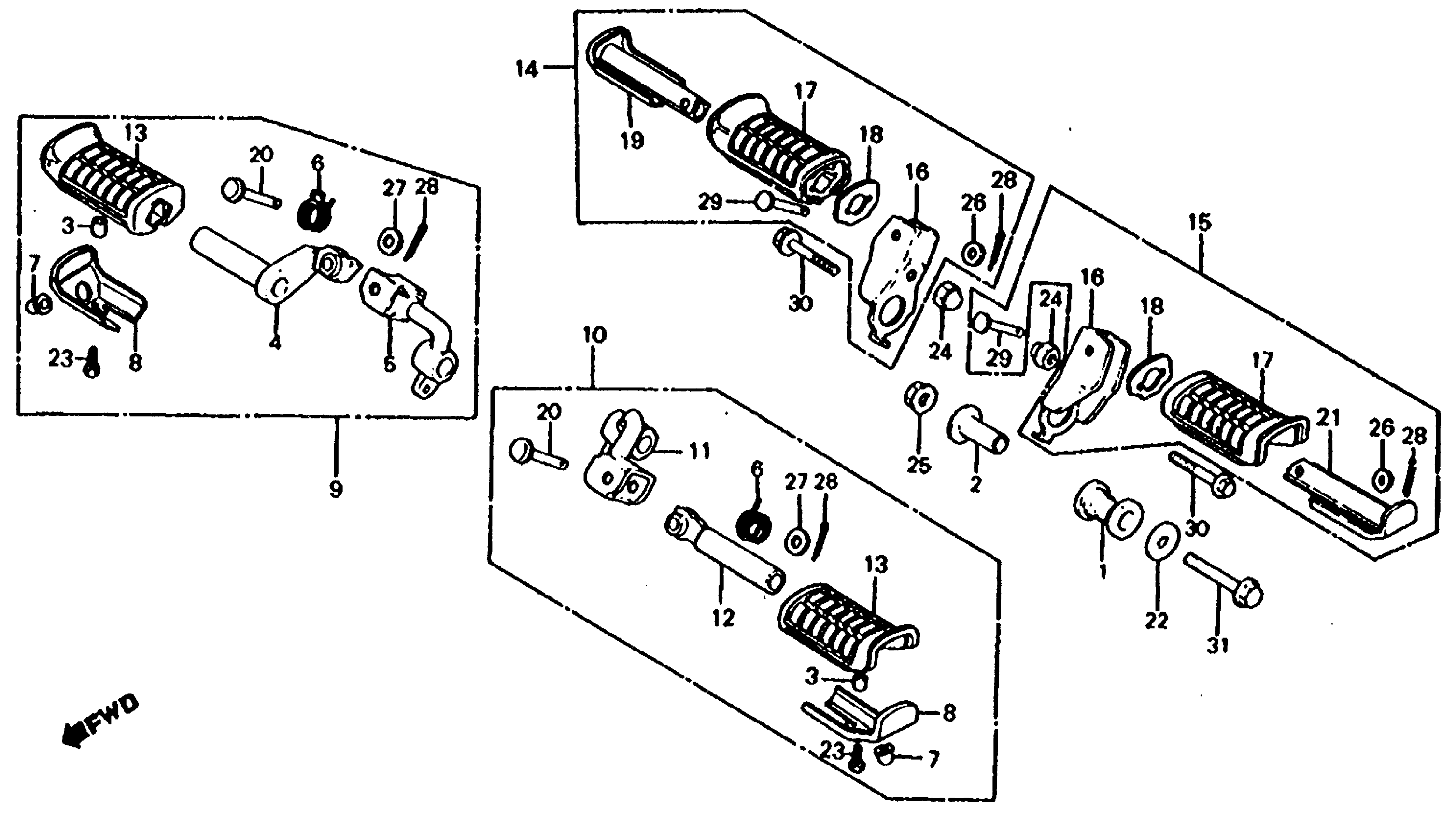

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 STEP Diagram

#

Description
Price

1

RUBBER, MUFFLER SETTING

18421-438-000

$5.71

1

RUBBER, MUFFLER SETTING This part replaces 18421-461-000.

18421-438-000

$5.71

2

COLLAR, MUFFLER SETTING

18422-438-000

Unavailable

3

COLLAR, CHAIN CASE

40515-413-000

$2.80

4

BAR, R. STEP

50612-MG1-000

Unavailable

5

BAR, R. STEP (NOT AVAILABLE)

50615-461-000

Unavailable

6

SPRING, FOOTPEG RETURN (NOT AVAILABLE)

50617-438-000

Unavailable

7

SLIDER, STEP

50618-MB1-000

$3.77

8

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

9

STEP ASSY., R. (NOT AVAILABLE)

50630-MG1-000

Unavailable

10

STEP ASSY., L.

50640-MG1-000

Unavailable

11

BAR, L. STEP (NOT AVAILABLE)

50641-461-000

Unavailable

12

BAR, L. STEP

50645-MG1-000

Unavailable

13

RUBBER, MAIN STEP

50661-MB1-000

Unavailable

14

STEP ASSY., R. PILLION

50700-MG1-000

Unavailable

15

STEP ASSY., L. PILLION (NOT AVAILABLE)

50705-MG1-000

Unavailable

16

BRACKET, PILLION STEP

50711-MG1-000

Unavailable

17

RUBBER, PILLION STEP

50713-MB1-000

$14.41

18

WASHER, PILLION STEP

50714-MB1-000

Unavailable

19

BAR, R. PILLION STEP (NOT AVAILABLE)

50715-MG1-000

Unavailable

20

PIN, FOOTPEG BAR JOINT (NOT AVAILABLE)

50716-445-000

Unavailable

21

BAR, L. PILLION STEP (NOT AVAILABLE)

50718-MG1-000

Unavailable

22

WASHER, SPECIAL (10MM)

90557-461-000

$2.67

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

24

NUT, CAP (8MM)

94021-08000-0S

$1.48

25

NUT, FLANGE (10MM)

94050-10000

$1.41

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

WASHER, PLAIN (8MM)

94101-08000

$0.75

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

28

PIN, COTTER (1.6X25)

94201-16250

$0.94

29

PIN A, PILLION STEP

95015-81000

$2.01

30

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

30

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

31

BOLT, FLANGE (10X50) This part replaces 95700-10050-00.

95701-10050-00

$2.55

31

BOLT, FLANGE (10X50)

95701-10050-00

$2.55
