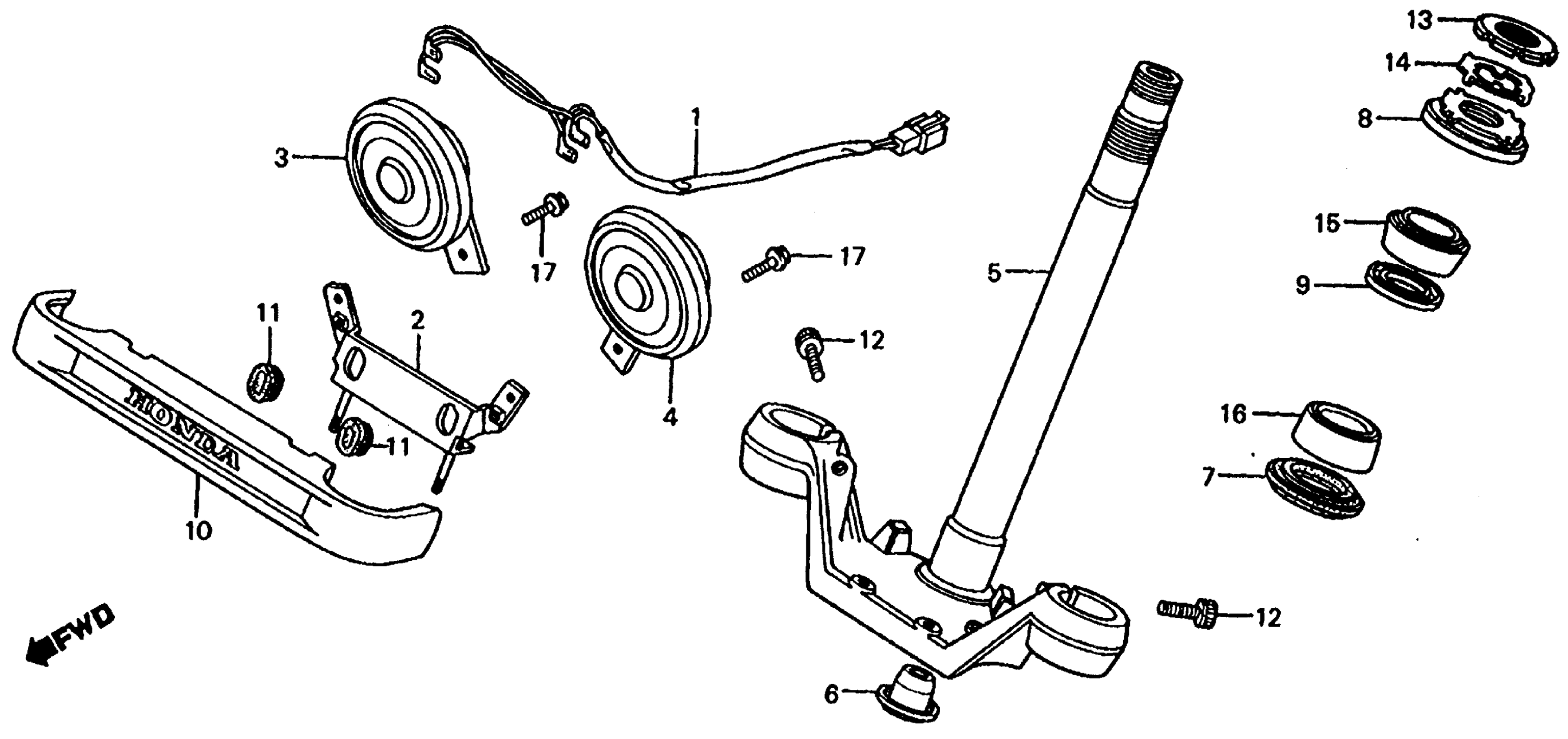

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 STEERING STEM Diagram

SUB-CABLE, HORN (NOT AVAILABLE)

32101-MG1-000

Unavailable

STAY, HORN (NOT AVAILABLE)

38102-MG1-000

Unavailable

HORN ASSY. (HIGH) This part replaces 38110-MG1-004.

38110-MJ1-831

Unavailable

HORN ASSY. (HIGH)

38110-MJ1-831

Unavailable

HORN ASSY. (LOW) (NOT AVAILABLE) This part replaces 38120-MB1-700.

38120-MB1-740

Unavailable

HORN ASSY. (LOW) (NOT AVAILABLE)

38120-MB1-740

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-MG1-000

Unavailable

CAP, STEERING STEM (NOT AVAILABLE)

53205-461-000

Unavailable

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

HOLDER, GREASE

53223-371-010

Unavailable

COVER, FR. (NOT AVAILABLE)

61401-MG1-000

Unavailable

GROMMET, FR. COVER (NOT AVAILABLE)

83551-MG1-000

Unavailable

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

BOLT, SOCKET (10X30) This part replaces 90152-MB1-000.

90152-MB0-000

Unavailable

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
