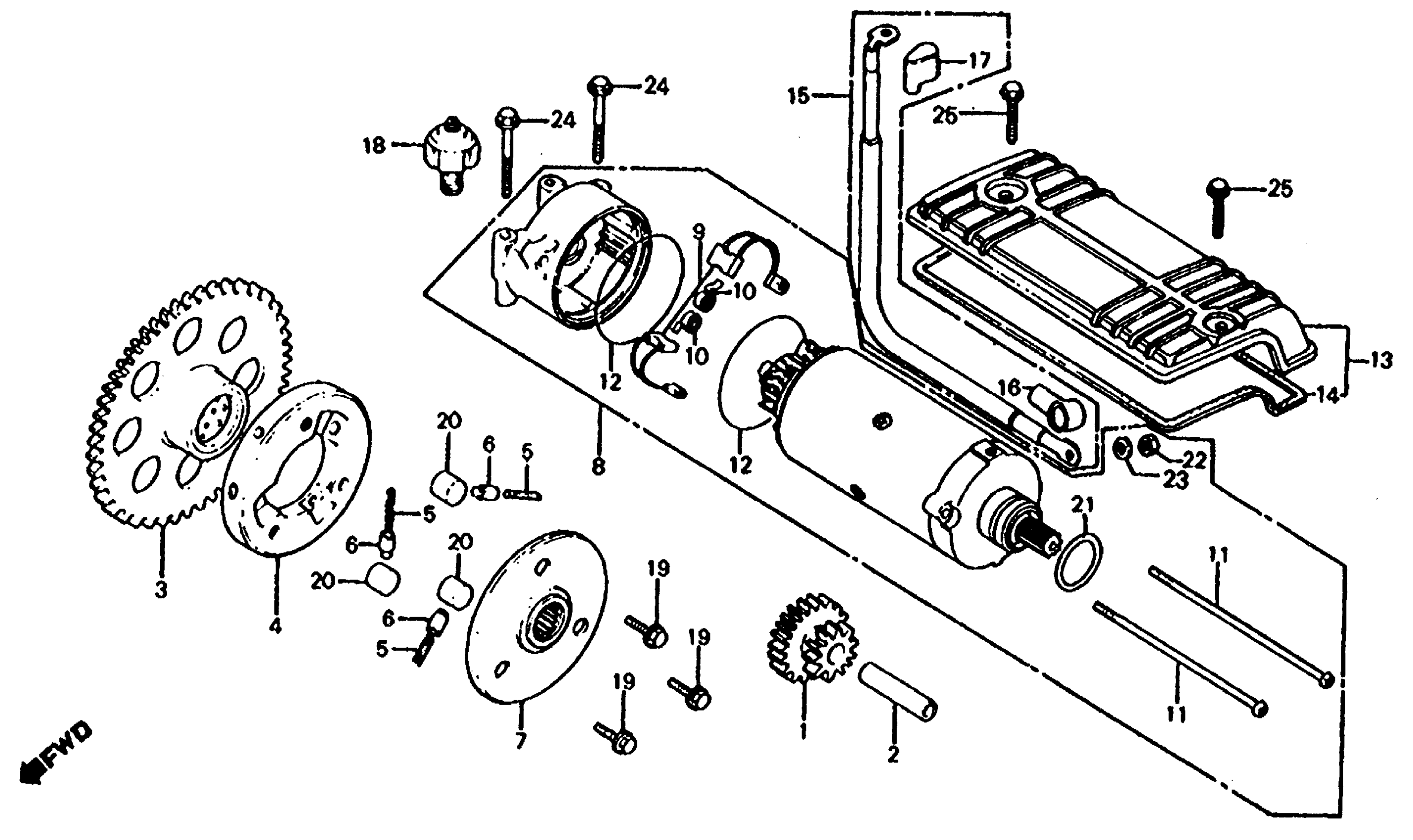

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 STARTER MOTOR + STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION

28101-425-000

Unavailable

2

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-425-000

Unavailable

3

GEAR, STARTER CLUTCH (75T)

28110-425-010

Unavailable

4

CLUTCH, STARTER (OUTER)

28120-425-000

Unavailable

5

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

6

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

7

FLANGE, STARTER DRIVE (NOT AVAILABLE)

28130-425-000

Unavailable

8

MOTOR ASSY., STARTER This part replaces 31200-438-018.

31200-438-505

Unavailable

8

MOTOR ASSY., STARTER This part replaces 31200-438-405.

31200-438-505

Unavailable

8

MOTOR ASSY., STARTER

31200-438-505

Unavailable

9

BRUSH SET, CARBON

31201-292-158

$26.15

10

SPRING, CARBON BRUSH

31204-292-158

$3.83

11

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

12

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

12

O-RING (60X1.4)

31206-402-008

Unavailable

13

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-438-670

Unavailable

14

GASKET, STARTER MOTOR COVER

31282-425-300

Unavailable

15

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-461-000

Unavailable

16

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

16

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

17

COVER, MAGNETIC SWITCH TERMINAL

32412-426-000

Unavailable

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

18

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

18

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

19

BOLT, FLANGE (8X16)

90022-425-000

$2.94

20

ROLLER (15X13)

91101-516-000

$6.32

21

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

21

O-RING (24.4X3.1)

91312-MG7-003

$6.34

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

24

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

25

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
