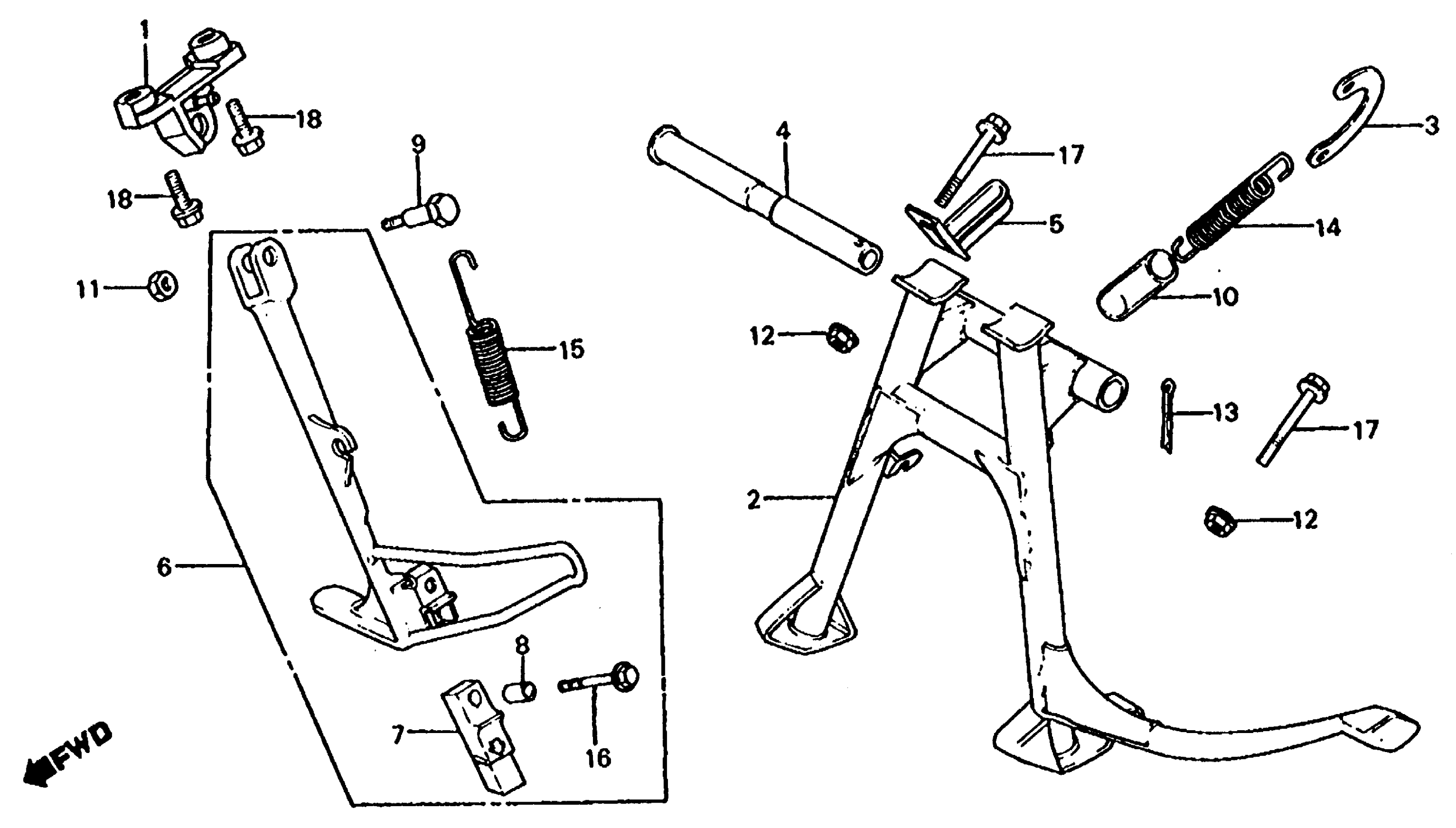

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 STAND Diagram

BRACKET B, SIDE STAND

50115-MG1-000

Unavailable

STAND, MAIN (NOT AVAILABLE)

50500-MG1-000

Unavailable

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

PIPE, MAIN STAND PIVOT (NOT AVAILABLE)

50526-461-000

Unavailable

GUIDE, DRAIN TUBE (NOT AVAILABLE)

50527-461-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-461-770

Unavailable

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BOLT, SIDE STAND PIVOT (NOT AVAILABLE) This part replaces 90108-425-000.

90108-ME1-670

Unavailable

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

NUT, HEX. (10MM)

94031-10000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

SPRING D, SIDE STAND

95014-72402

$2.92

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (10X50) (NOT AVAILABLE) This part replaces 95800-10050-07.

95801-10050-07

$2.02
