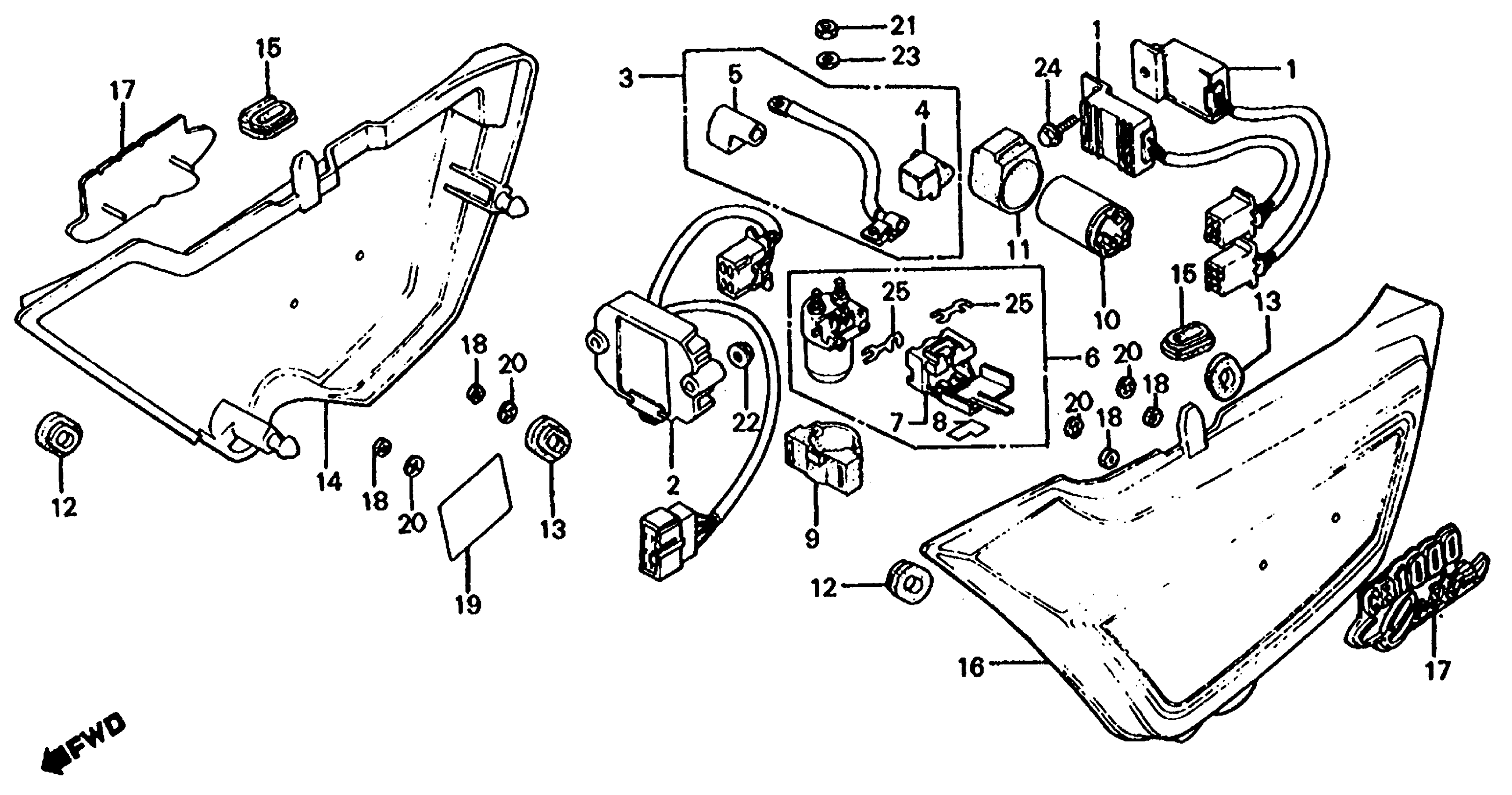

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 SIDE COVER + SPARK UNIT + RECTIFIER Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-461-155.

30400-MA4-601

Unavailable

2

RECTIFIER ASSY., REGULATE (NOT AVAILABLE)

31600-MA7-008

Unavailable

3

CABLE, STARTER BATTERY

32401-461-010

Unavailable

4

COVER B, TERMINAL (NOT AVAILABLE)

32414-425-000

Unavailable

4

COVER B, TERMINAL (NOT AVAILABLE)

32414-425-910

Unavailable

5

COVER, MAGNETIC SWITCH TERMINAL (NOT AVAILABLE)

32415-461-000

Unavailable

6

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$118.18

6

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-425-017.

35850-MB0-007

$118.18

7

COVER, FUSE

35852-425-017

$8.71

8

LABEL, FUSE COVER

35853-425-300

Unavailable

9

RUBBER, MAGNETIC SHOCK

35856-425-000

$9.79

10

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MB0-004.

38301-KK9-952

$65.61

10

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$65.61

11

SUSPENSION, TURN SIGNAL RELAY

38306-KB4-010

Unavailable

11

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-438-000.

38306-KB4-010

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

13

GROMMET, SIDE COVER

83551-376-000

Unavailable

14

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

836A0-MG1-000ZA

Unavailable

14

COVER, R. SIDE *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

836A0-MG1-000ZB

Unavailable

15

GROMMET, SIDE COVER (NOT AVAILABLE)

83601-461-770

Unavailable

16

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

837A0-MG1-000ZA

Unavailable

16

COVER, L. SIDE *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

837A0-MG1-000ZB

Unavailable

17

EMBLEM, SIDE COVER (NOT AVAILABLE)

87127-MG1-000

Unavailable

18

RUBBER, RR. EMBLEM SETTING

87411-538-910

$6.52

19

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-461-770

Unavailable

20

NUT, SPEED (3MM)

90313-567-000

$3.69

21

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.19

21

NUT, HEX. (6MM)

94002-06080-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.19

21

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.19

22

NUT, FLANGE (6MM)

94050-06000

$0.59

23

WASHER, SPRING (6MM)

94111-06800

$1.03

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

25

FUSE F (30A)

98200-53000

$1.22
