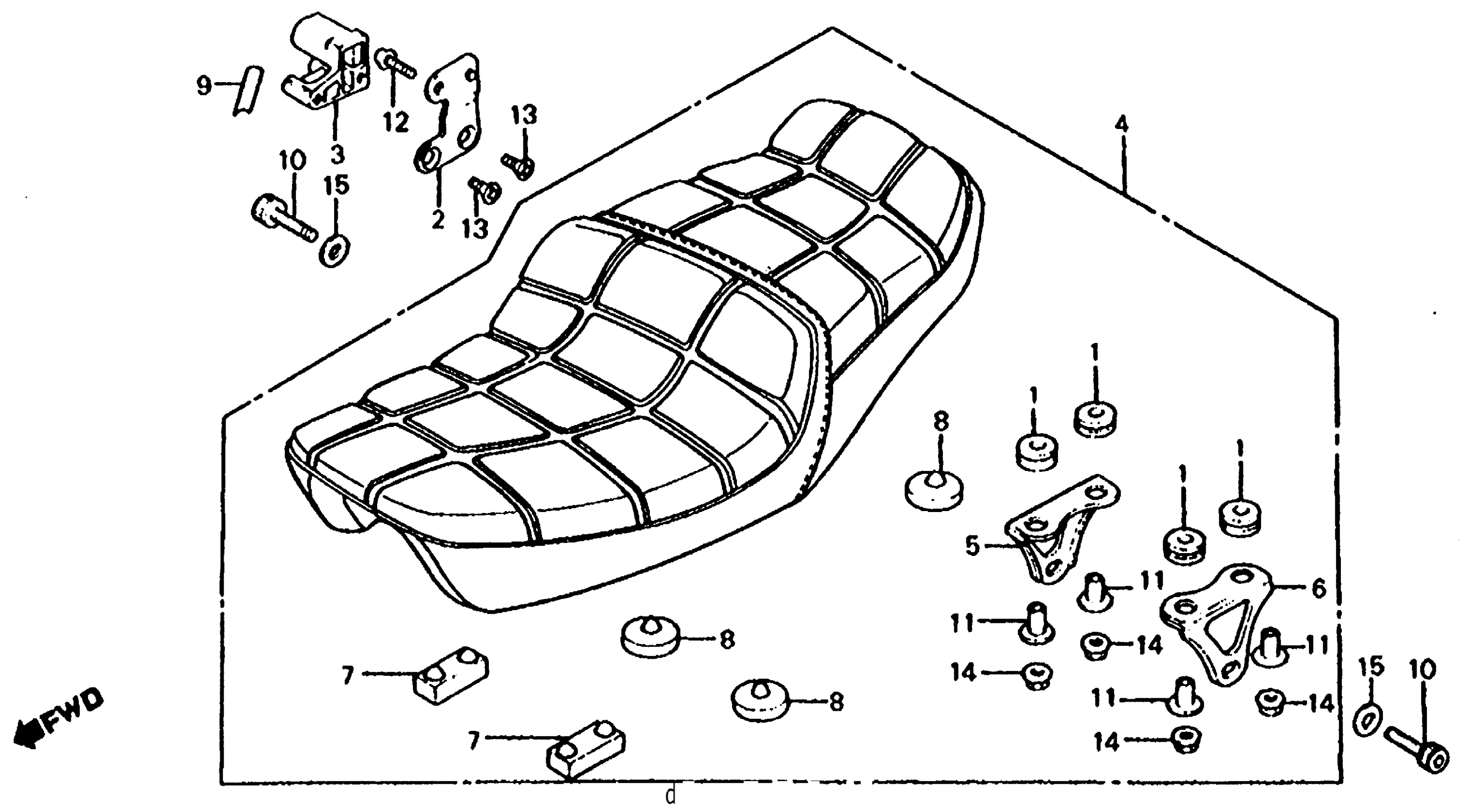

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 SEAT Diagram

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

BRACKET, HELMET HOLDER

50709-461-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

SEAT ASSY., DOUBLE (NOT AVAILABLE)

77100-MG1-000

Unavailable

STAY, R. SEAT SETTING (NOT AVAILABLE)

77203-461-000

Unavailable

STAY, L. SEAT SETTING (NOT AVAILABLE)

77204-461-000

Unavailable

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT (NOT AVAILABLE)

77206-425-000

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, SOCKET (8X16)

90115-463-000

$8.94

COLLAR, SEAT MOUNT (NOT AVAILABLE)

90501-461-000

Unavailable

SCREW, PAN (6X12)

93500-06012-0G

$1.49

SCREW, FLAT (6X10) This part replaces 93600-06010.

93600-06010-0A

$3.90

SCREW, FLAT (6X10)

93600-06010-0A

$3.90

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, FLAT (8MM)

94101-08700

$1.49
