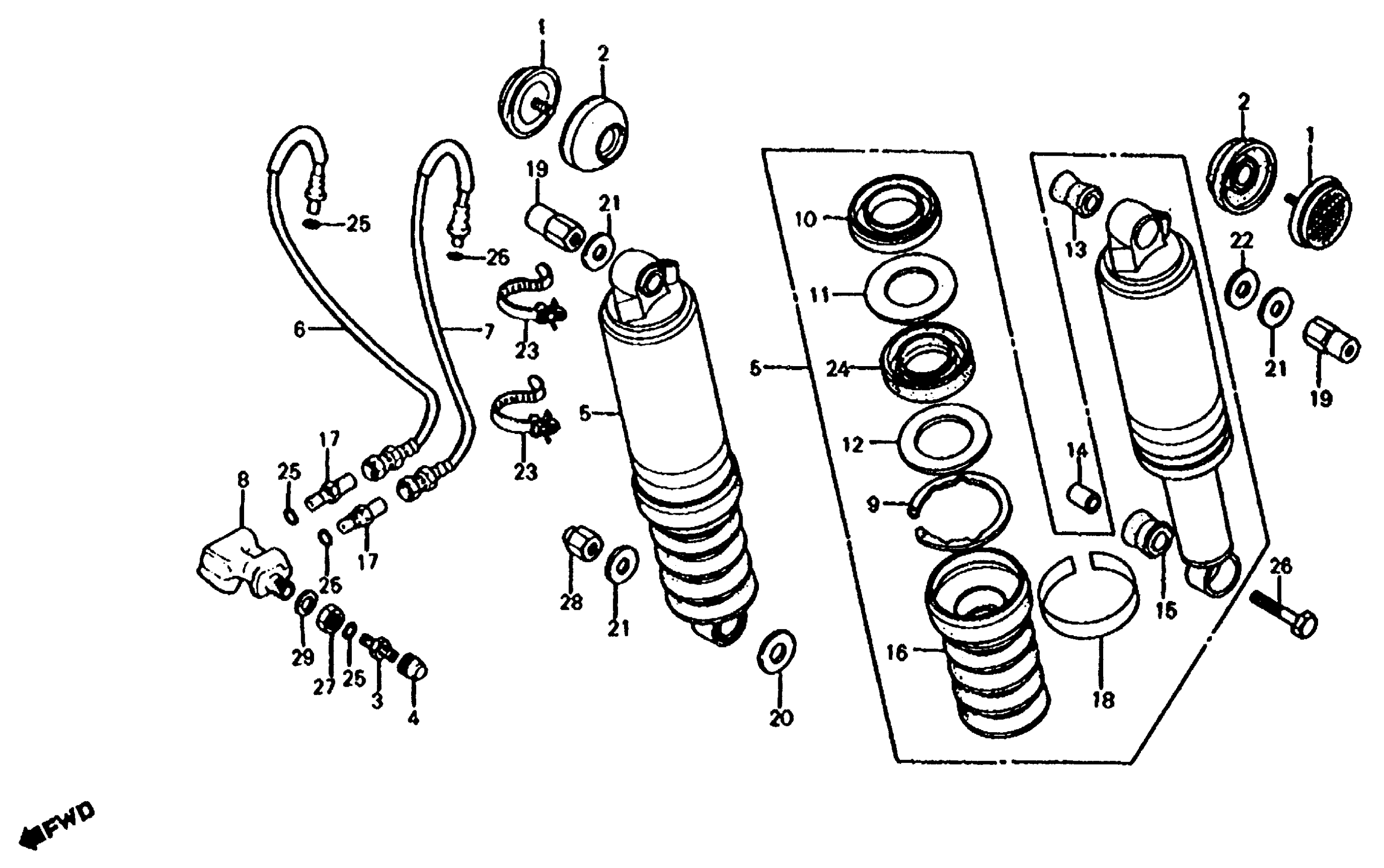

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX

33741-HB9-641

$13.66

1

REFLECTOR, RR. REFLEX This part replaces 33741-148-871.

33741-HB9-641

$13.66

1

REFLECTOR, RR. REFLEX This part replaces 33741-148-872.

33741-HB9-641

$13.66

2

BASE, FR. REFLECTOR

33743-425-600

Unavailable

3

VALVE, AIR (SHOWA)

51456-469-013

$33.69

4

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

5

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-MG1-305

Unavailable

6

HOSE, R. RR. SHOCK ABSORBER (NOT AVAILABLE)

52432-461-003

Unavailable

7

HOSE, L. RR. SHOCK ABSORBER (NOT AVAILABLE)

52433-461-003

Unavailable

8

JOINT (THREE-WAY) (NOT AVAILABLE)

52434-MG1-003

Unavailable

9

CIRCLIP (INNER) (66MM) (NOT AVAILABLE)

52447-463-003

Unavailable

10

GUIDE, DAMPER CASE

52462-463-003

Unavailable

11

RING A, BACK-UP

52463-463-003

Unavailable

12

RING B, BACK-UP (NOT AVAILABLE)

52464-463-003

Unavailable

13

RUBBER, JOINT

52484-292-000

$5.87

14

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

15

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$5.28

16

BOOT, RR. DAMPER

52611-463-013

Unavailable

17

CONNECTOR

53139-463-000

Unavailable

18

LABEL, RR. SHOCK (NOT AVAILABLE)

87519-MG1-000

Unavailable

19

NUT, RR. CUSHION (UPPER) (NOT AVAILABLE)

90309-MG1-000

Unavailable

20

WASHER, PLAIN (16MM)

90439-463-000

$1.50

21

WASHER (10.3MM)

90521-292-000

$3.42

22

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

23

BAND (100MM) (BLACK)

90676-692-000

$6.64

24

OIL SEAL (33X66X10.5)

91257-463-013

$19.28

25

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

25

O-RING (5.8X1.9)

91305-323-000

$2.92

25

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

26

BOLT, HEX. (10X35) This part replaces 93200-10035-0B.

93201-10035-0B

Unavailable

27

NUT, HEX. (14MM)

94002-14080-0S

$2.08

28

NUT, CAP (10MM)

94021-10220-0S

$2.00

29

WASHER, PLAIN (14MM)

94102-14800

$1.49
