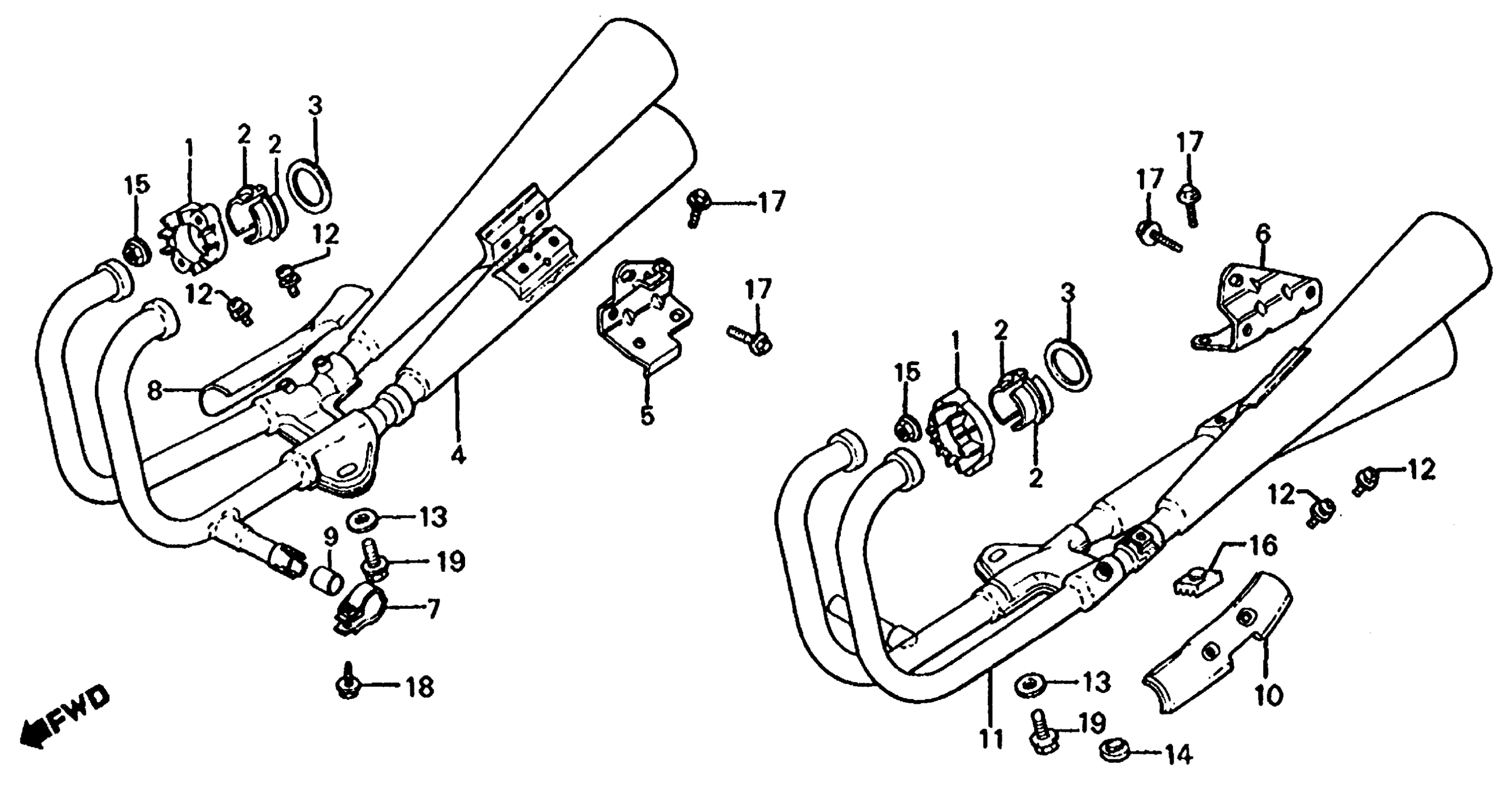

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-425-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-425-000

$16.69

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

4

MUFFLER, R. EX. (NOT AVAILABLE) | Use up to Frame SN DA004094 This part replaces 18300-MG1-000.

18300-MG1-020

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE) | Use from Frame SN DA004095 to DA006347 This part replaces 18300-MG1-010.

18300-MG1-020

Unavailable

4

MUFFLER, R. EX. (NOT AVAILABLE) | Use from Frame SN DA006348

18300-MG1-020

Unavailable

5

BRACKET, R. MUFFLER

18312-MG1-000

Unavailable

6

BRACKET, L. MUFFLER (NOT AVAILABLE)

18313-MG1-000

Unavailable

7

BAND, EX. PIPE

18373-461-000

$38.77

8

PROTECTOR, R. JOINT (NOT AVAILABLE)

18375-MG1-000

Unavailable

9

GASKET, MUFFLER

18391-HB7-000

$11.62

9

GASKET, MUFFLER This part replaces 18391-461-000.

18391-HB7-000

$11.62

10

PROTECTOR, L. JOINT (NOT AVAILABLE)

18425-MG1-000

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) | Use up to Frame SN DA004094 This part replaces 18400-MG1-020.

18450-MG1-020

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) | Use up to Frame SN DA004094 This part replaces 18450-MG1-000.

18450-MG1-020

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) | Use from Frame SN DA004095 to DA006347 This part replaces 18450-MG1-010.

18450-MG1-020

Unavailable

11

MUFFLER, L. EX. (NOT AVAILABLE) | Use from Frame SN DA006348

18450-MG1-020

Unavailable

12

SCREW-WASHER (6X12) (NOT AVAILABLE)

90136-461-000

Unavailable

13

WASHER (10.3MM)

90521-427-770

$2.28

14

RUBBER, STAND STOPPER

91451-MG1-000

Unavailable

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

RUBBER A, STAND STOPPER

95011-61000

$1.49

17

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

17

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

18

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

18

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

19

BOLT, FLANGE (10X45) This part replaces 95700-10045-00.

95701-10045-00

$2.98

19

BOLT, FLANGE (10X45)

95701-10045-00

$2.98
