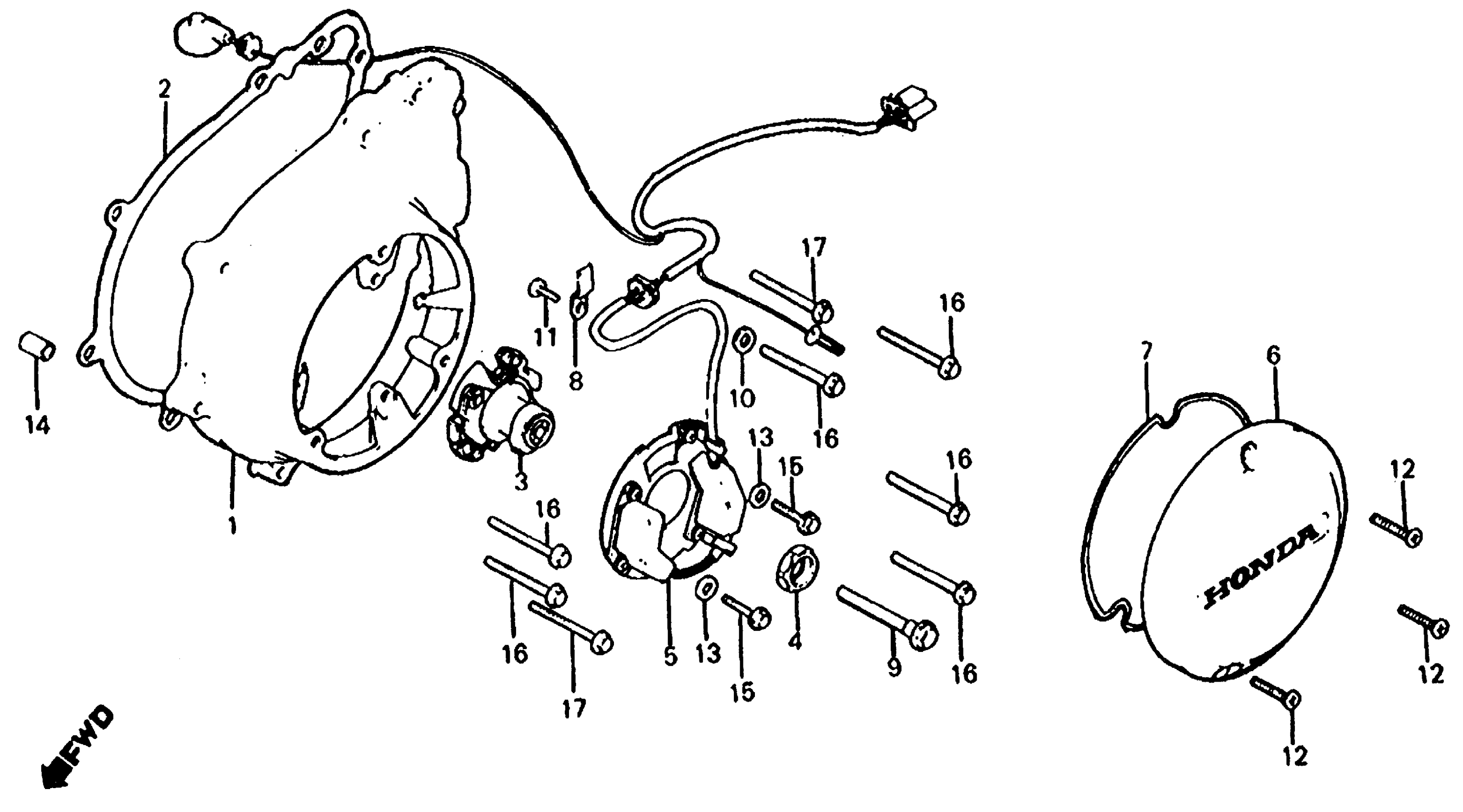

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 LEFT CRANKCASE COVER + ADVANCER Diagram

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-461-750.

11341-438-670

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-425-000.

11395-425-306

$14.62

GASKET, L. CRANKCASE COVER

11395-425-306

$14.62

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-MG1-154

Unavailable

BOSS, TIMING (NOT AVAILABLE)

30228-425-010

Unavailable

GENERATOR, PULSE This part replaces 30300-MG1-000.

30300-461-405

Unavailable

GENERATOR, PULSE

30300-461-405

Unavailable

COVER, POINTS

30371-425-010

Unavailable

GASKET, POINTS COVER

30372-425-000

$8.09

PLATE, PULSER WIRE SETTING (NOT AVAILABLE)

32116-425-000

Unavailable

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90052-MA3-000

Unavailable

WASHER, THRUST (11MM)

90425-300-000

$2.66

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.49

SCREW, OVAL (6X25)

93700-06025-0A

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
