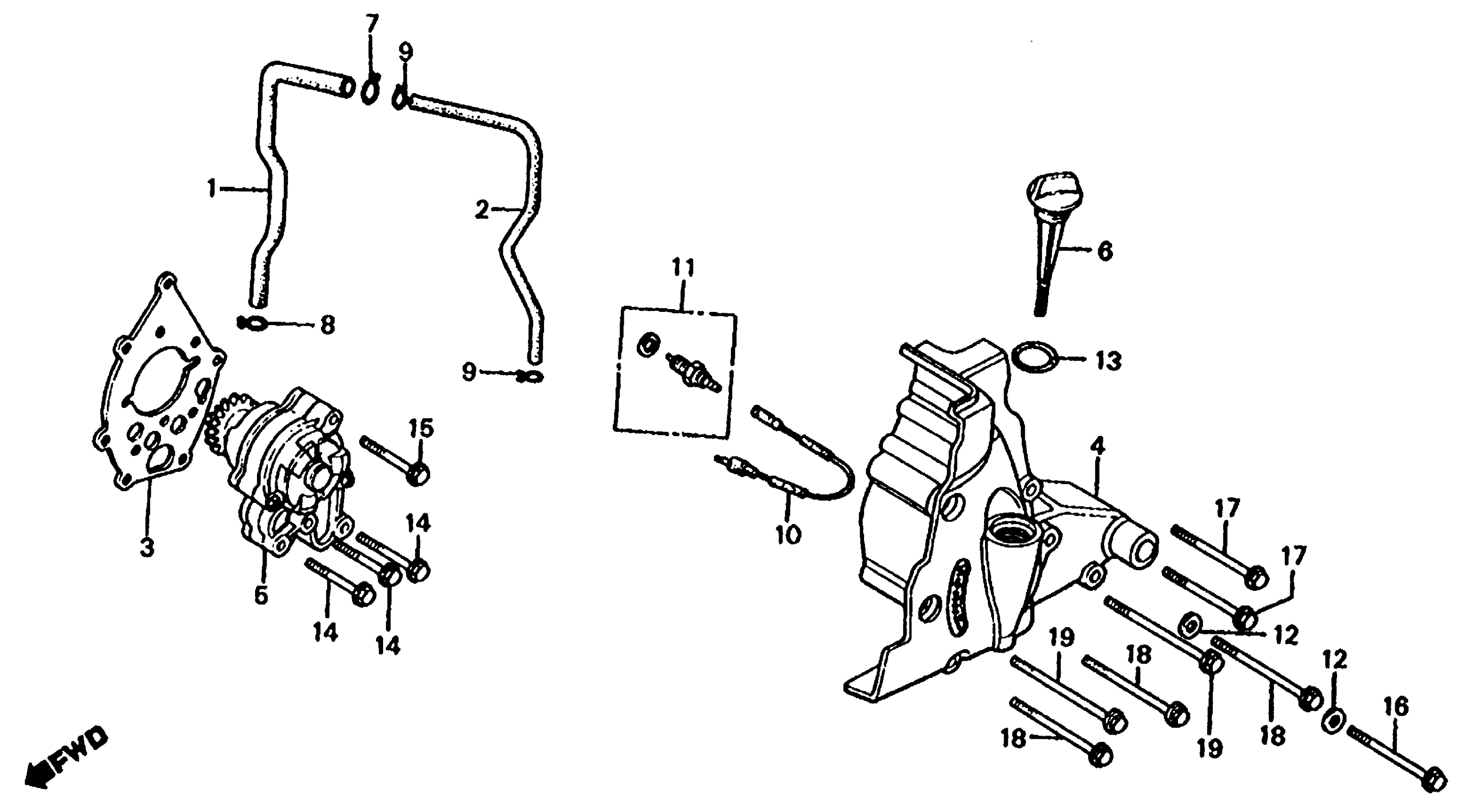

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 LEFT COVER + OIL PUMP Diagram

#

Description
Price

1

TUBE, R. BREATHER (NOT AVAILABLE)

11355-MA4-670

Unavailable

2

TUBE, L. BREATHER (NOT AVAILABLE)

11356-425-010

Unavailable

3

GSKT, L. SIDE COVER This part replaces 11359-461-000.

11359-461-405

Unavailable

4

COVER, L. SIDE

11360-461-750

Unavailable

5

PUMP ASSY., OIL

15100-438-003

Unavailable

6

DIPSTICK, OIL (NOT AVAILABLE)

15650-461-000

Unavailable

7

CLIP, OIL DRAIN

15707-634-000

$5.13

8

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

9

CLIP, BREATHER TUBE

17316-611-000

$9.23

10

CABLE, NEUTRAL SWITCH (NOT AVAILABLE)

30301-461-000

Unavailable

11

SWITCH ASSY., NEUTRAL This part replaces 35600-425-003.

35600-425-023

$21.73

11

SWITCH ASSY., NEUTRAL This part replaces 35600-425-013.

35600-425-023

$21.73

11

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

12

WASHER, THRUST (11MM)

90425-300-000

$2.66

13

O-RING (22X3.0)

91307-425-003

$2.59

14

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

14

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

14

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

15

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

15

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

16

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

16

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

17

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

17

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

18

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

18

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

19

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

19

BOLT, FLANGE (6X60)

96001-06060-00

$2.06
