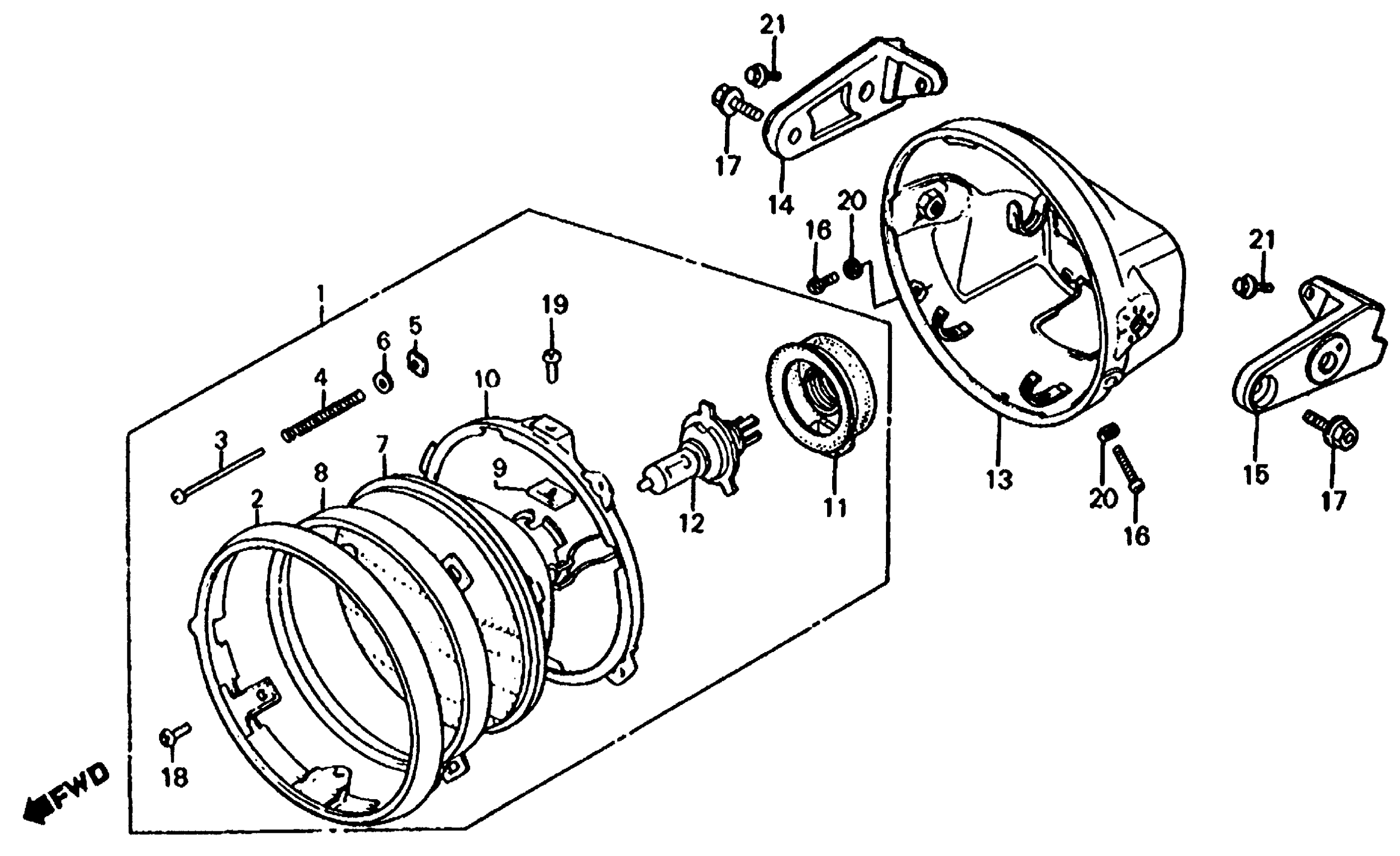

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-431-671

Unavailable

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT

33120-431-671

Unavailable

8

RING, RETAINING

33121-405-671

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

11

COVER, RUBBER

33180-422-003

Unavailable

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

CASE, HEADLIGHT (NOT AVAILABLE)

61301-MG1-000

Unavailable

14

STAY, R. HEADLIGHT (NOT AVAILABLE)

61312-MG1-000

Unavailable

15

STAY, L. HEADLIGHT (NOT AVAILABLE)

61313-MG1-000

Unavailable

16

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.94

17

BOLT, SOCKET (10X20)

90106-MG1-000

Unavailable

18

SCREW, PAN (3X8)

93500-03008-0H

$1.49

18

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

19

SCREW, PAN (5X8)

93500-05008-0H

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

21

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
