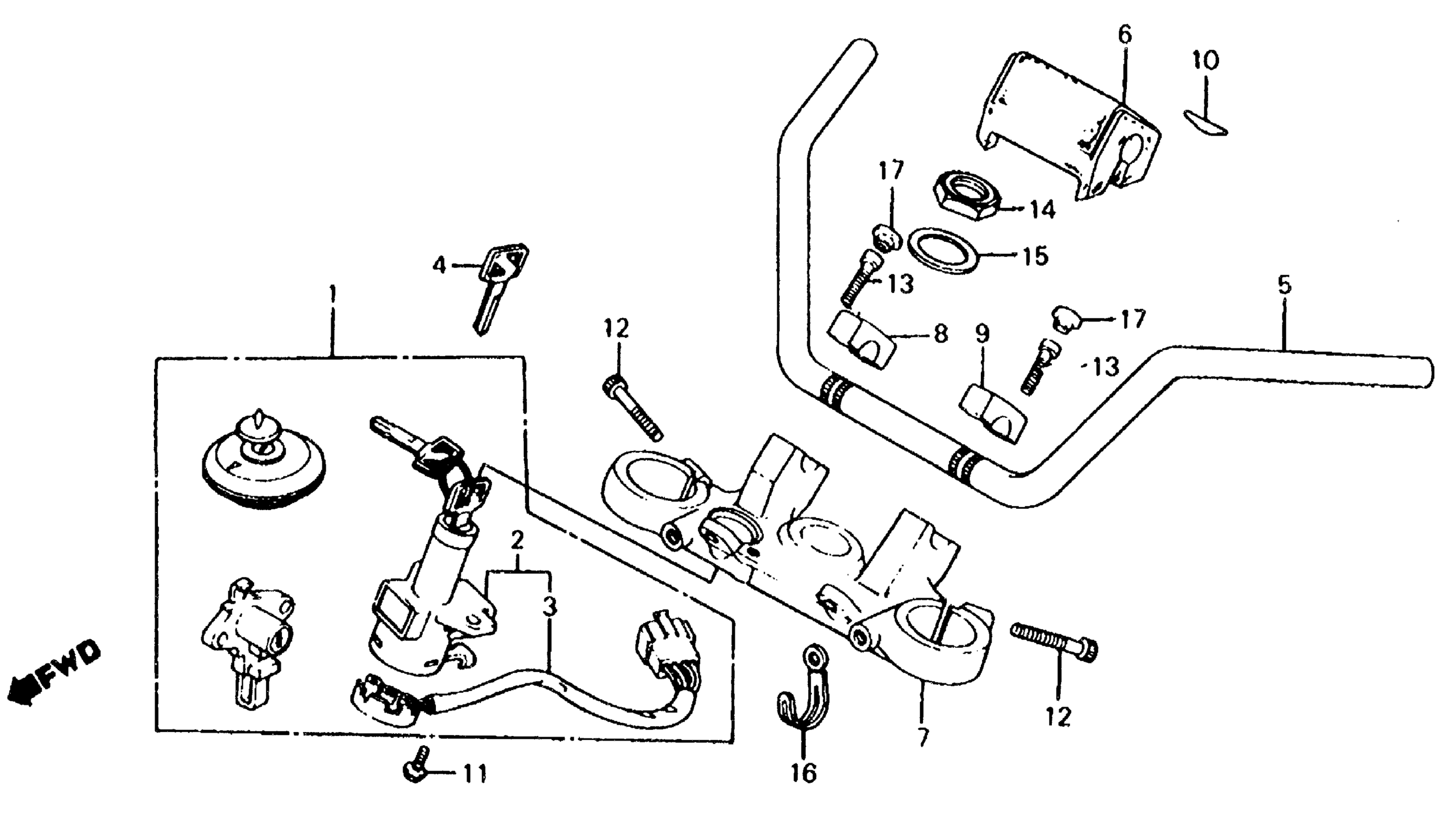

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 HANDLEBAR + TOP BRIDGE Diagram

LOCK SET (NOT AVAILABLE) This part replaces 35010-MG1-000.

35010-MG1-010

Unavailable

LOCK SET (NOT AVAILABLE)

35010-MG1-010

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-MB0-007

Unavailable

BASE, CONTACT This part replaces 35101-MA6-007.

35101-MC5-000

Unavailable

BASE, CONTACT

35101-MC5-000

Unavailable

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

HANDLEBAR (NOT AVAILABLE)

53100-MG1-000

Unavailable

COVER, HANDLEBAR (NOT AVAILABLE)

53105-MB1-000

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MG1-000

Unavailable

HOLDER, R. HANDLEBAR (UPPER) (NOT AVAILABLE)

53235-MB1-000

Unavailable

HOLDER, L. HANDLEBAR (UPPER) (NOT AVAILABLE)

53236-MB1-000

Unavailable

LABEL, FR. CUSHION CAUTION (NOT AVAILABLE)

87517-MG1-670

Unavailable

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

BOLT, SOCKET (8X32)

90154-MB1-000

Unavailable

NUT, STEERING STEM

90304-425-000

$9.69

WASHER, STEERING STEM

90503-425-000

$4.21

CLIP, WIRE HARNESS

91405-MG1-000

$2.31

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77
