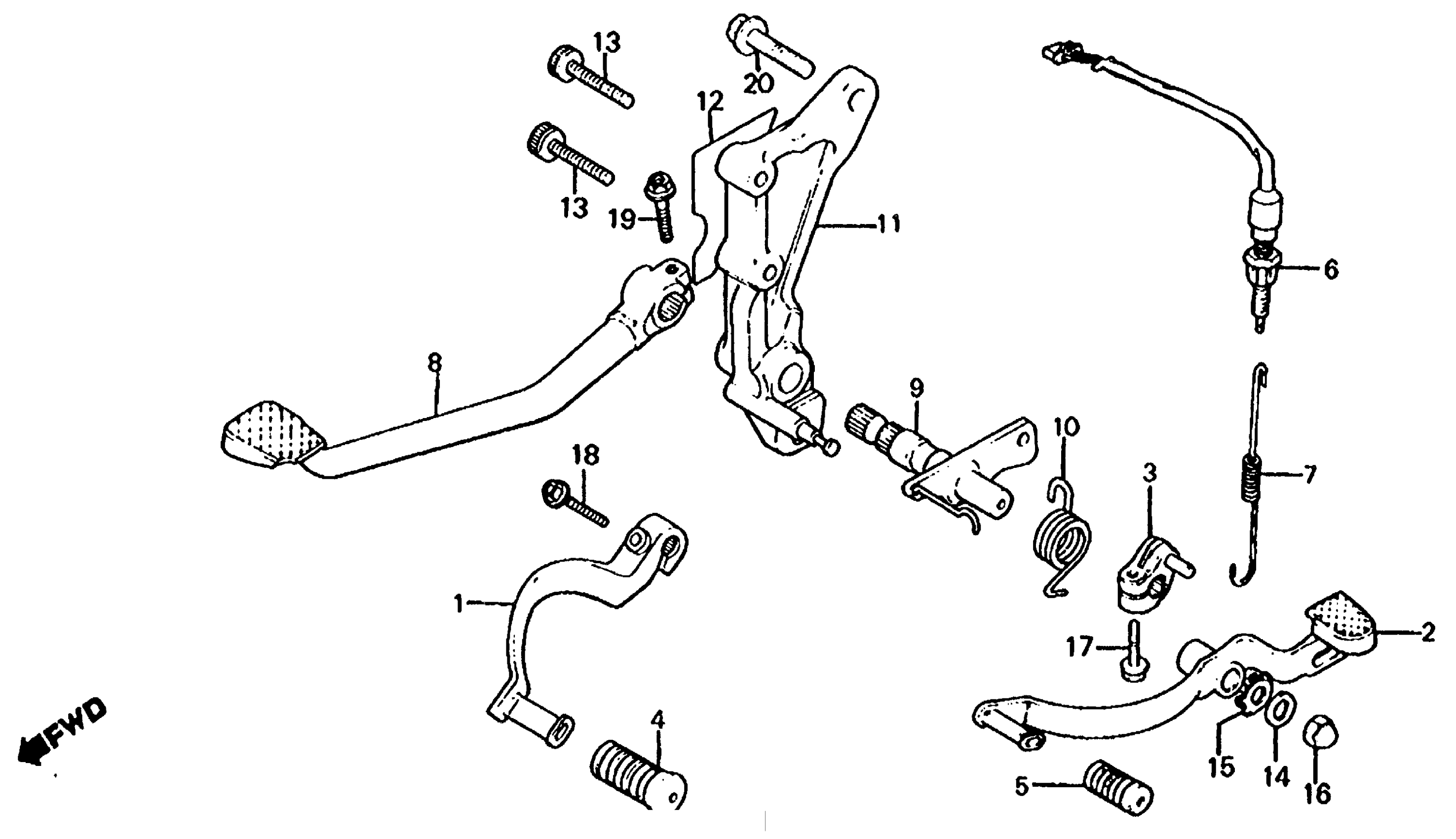

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 GEARSHIFT PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-MG1-000

Unavailable

2

PEDAL, SELECT (NOT AVAILABLE)

24710-461-000

Unavailable

3

ARM, SELECT (NOT AVAILABLE)

24711-461-000

Unavailable

4

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

5

RUBBER, GEARSHIFT

24781-461-000

Unavailable

6

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

6

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$16.22

7

SPRING, STOP SWITCH

35357-MA2-610

Unavailable

7

SPRING, STOP SWITCH This part replaces 35357-428-000.

35357-MA2-610

Unavailable

8

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MG1-000

Unavailable

9

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-461-000

Unavailable

10

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-461-000

Unavailable

11

HOLDER, RR. BRAKE PEDAL (NOT AVAILABLE)

46515-461-000

Unavailable

12

LABEL, MUFFLER CAUTION (NOT AVAILABLE)

87504-461-670

Unavailable

13

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

13

BOLT, SOCKET (8X28) This part replaces 90105-422-000.

90105-MA6-750

$5.43

14

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

15

WASHER (6MM) (NOT AVAILABLE)

90503-461-000

Unavailable

16

NUT, CAP (6MM)

94021-06220-0S

$1.61

17

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

19

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

20

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

20

BOLT, FLANGE (10X25)

95701-10025-00

$2.19
