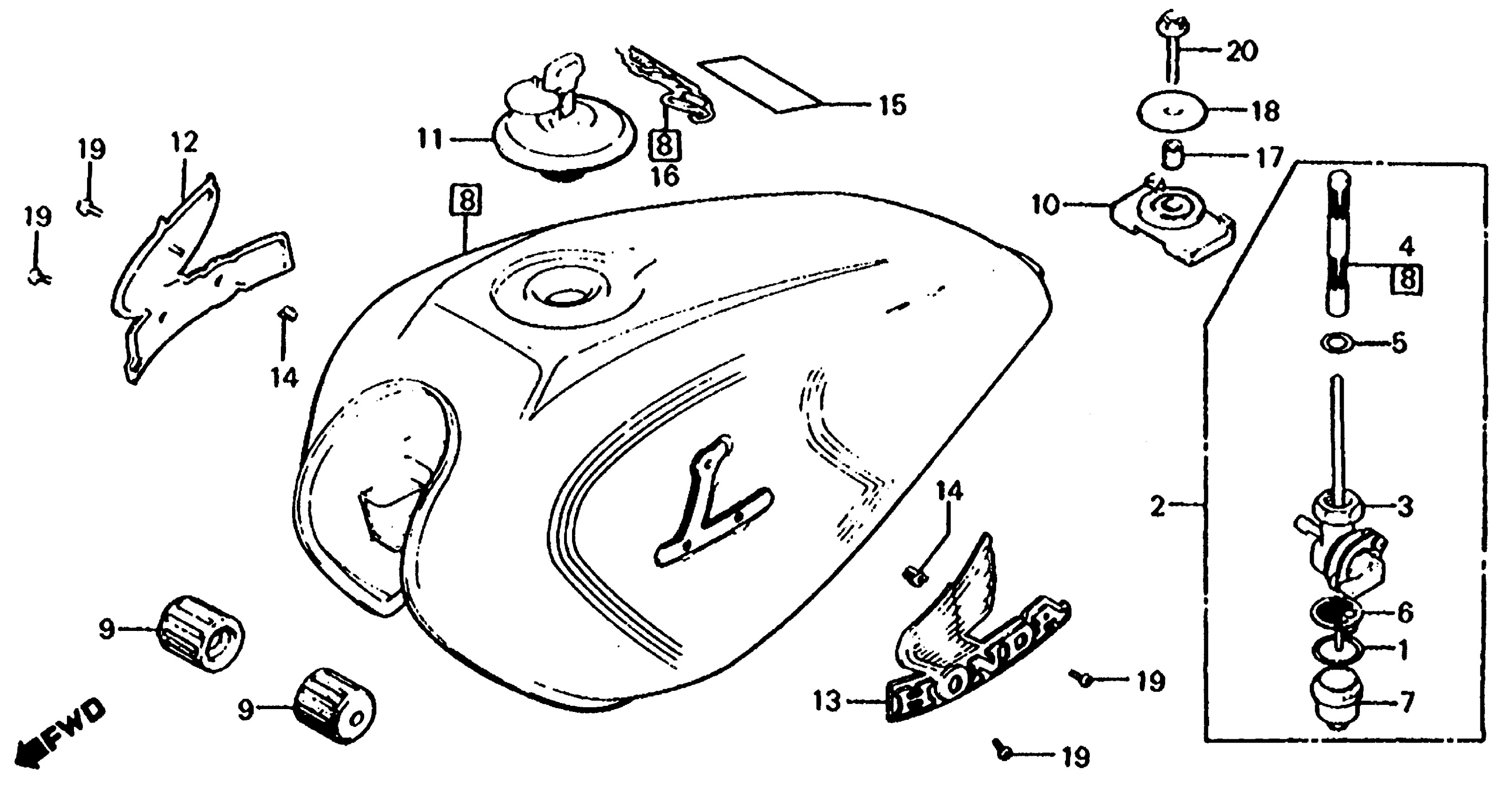

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 FUEL TANK Diagram

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

PETCOCK ASSY.

16950-461-751

$219.33

BODY, PETCOCK

16951-461-751

Unavailable

SCREEN, FUEL STRAINER

16952-461-751

Unavailable

O-RING

16958-MA2-771

$4.44

FILTER, CUP

16959-461-751

$17.88

CUP, FUEL STRAINER

16967-MA2-771

$25.08

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)

175A1-MG1-000ZA

Unavailable

TANK SET, FUEL *YR120CU* (CANDY REGAL BROWN-U) (NOT AVAILABLE)

175A1-MG1-000ZB

Unavailable

RUBBER, FR. FUEL TANK

17611-425-000

$8.18

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-461-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-460-037.

17620-460-077

$55.99

CAP, FUEL FILLER This part replaces 17620-460-047.

17620-460-077

$55.99

CAP, FUEL FILLER This part replaces 17620-460-057.

17620-460-077

$55.99

CAP, FUEL FILLER This part replaces 17620-460-067.

17620-460-077

$55.99

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-MG1-000

Unavailable

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-MG1-000

Unavailable

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

NUT, EMBLEM CLAMP

87311-634-600

$4.79

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

LABEL, FUEL TANK (TYPE1) (A.M.) (NOT AVAILABLE)

87566-MG1-300ZA

Unavailable

LABEL, FUEL TANK (TYPE2) (A.M.) (NOT AVAILABLE)

87566-MG1-300ZB

Unavailable

COLLAR (8MM)

90324-300-000

$4.35

WASHER (8.3X38)

90502-461-000

Unavailable

SCREW, PAN (4X6)

93500-04006-0G

$1.49

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
