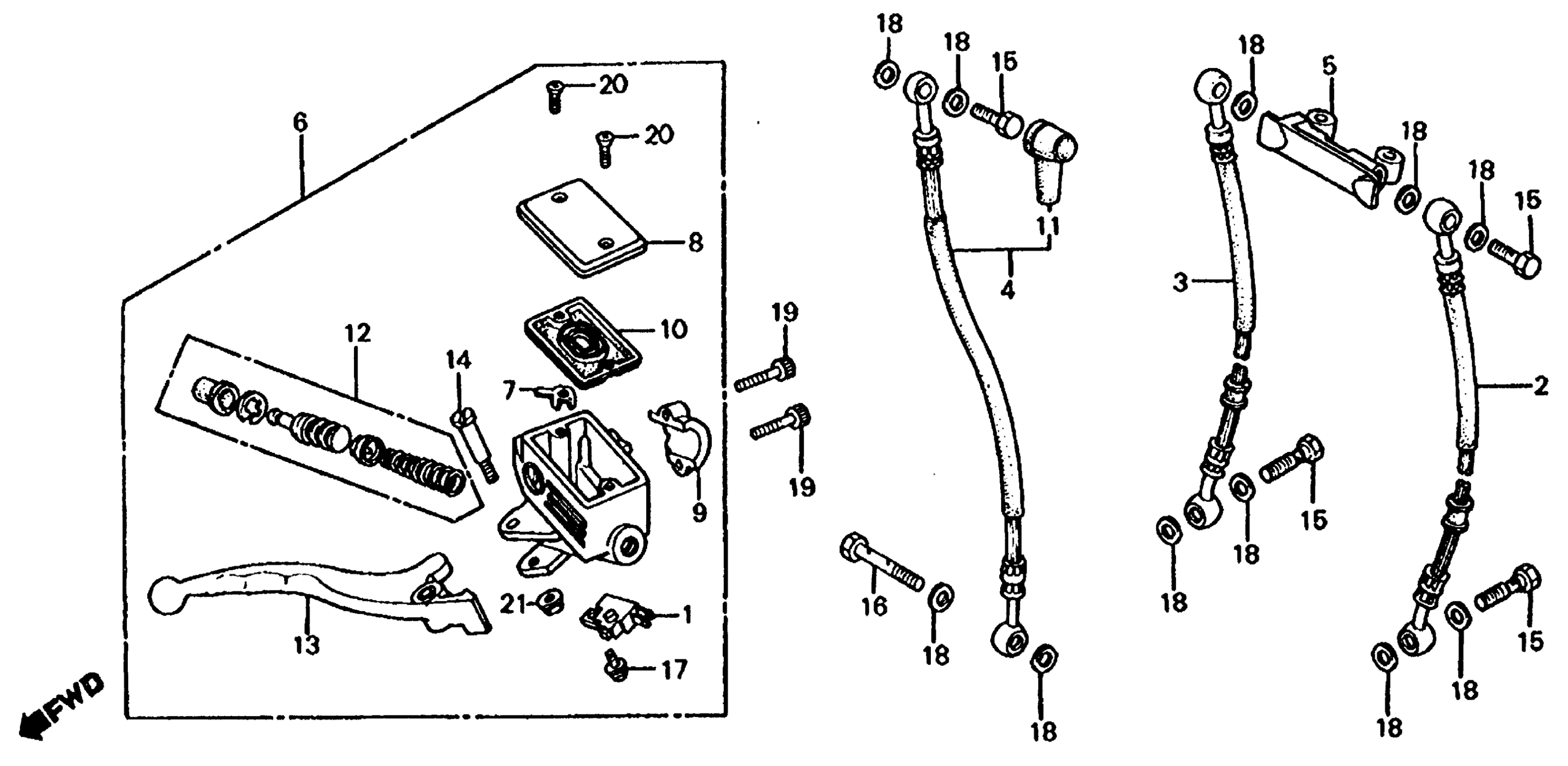

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 FRONT BRAKE MASTER + CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, L. FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN DA000100 This part replaces 45124-MB1-003.

45124-MB1-013

Unavailable

2

HOSE, L. FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN DA000100

45124-MB1-013

Unavailable

2

HOSE, L. FR. BRAKE (NOT AVAILABLE) | Use from Frame SN DA000101

45124-MG1-003

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN DA000100 This part replaces 45125-MB1-003.

45125-MB1-013

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN DA000100

45125-MB1-013

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE) | Use from Frame SN DA000101

45125-MG1-003

Unavailable

4

HOSE B, FR. BRAKE This part replaces 45126-MB1-003.

45126-MB1-013

Unavailable

4

HOSE B, FR. BRAKE

45126-MB1-013

Unavailable

5

JOINT (TWO-WAY)

45127-MB1-000

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MB1-406)

45500-MB1-673

Unavailable

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP

45540-MA6-621

Unavailable

9

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

10

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET

45530-MA5-671

$71.69

13

LEVER, R. HANDLE This part replaces 53175-MB0-006.

53175-MK7-671

$17.88

13

LEVER, R. HANDLE This part replaces 53175-MB1-006.

53175-MK7-671

$17.88

13

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

14

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

15

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

15

BOLT, OIL

90145-300-010

$9.68

15

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

16

BOLT, OIL (10X34) This part replaces 90145-MB0-000.

90145-MB0-010

Unavailable

16

BOLT, OIL (10X34)

90145-MB0-010

Unavailable

17

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

19

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49
