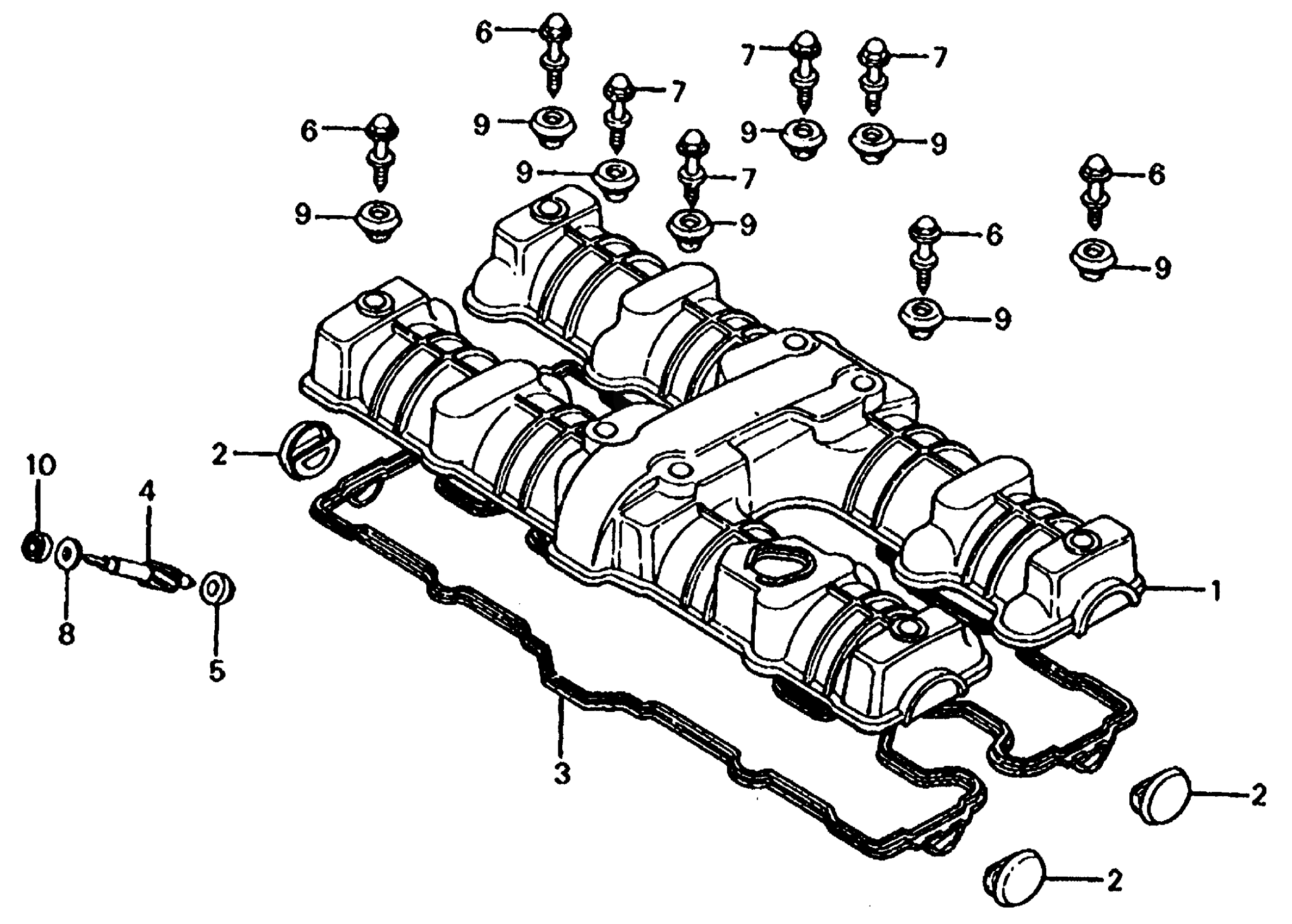

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-461-000

Unavailable

2

COVER, CYLINDER HEAD SIDE

12331-425-000

$24.29

3

GASKET, CYLINDER HEAD COVER

12391-425-010

$53.11

4

GEAR, TACHOMETER (NOT AVAILABLE)

12432-425-000

Unavailable

5

COLLAR, TACHOMETER GEAR

12435-425-000

Unavailable

6

BOLT, SPECIAL (6X27.5)

90017-425-000

$4.13

7

BOLT, SPECIAL (6X37)

90038-425-000

Unavailable

8

WASHER, THRUST (7MM)

90454-425-000

Unavailable

9

RUBBER, SETTING

90541-425-000

$9.60

10

OIL SEAL (4.8X14.5X5) (ARAI)

91256-425-003

$4.77

10

OIL SEAL (4.8X14.5X5) (ARAI) This part replaces 91256-425-005.

91256-425-003

$4.77
