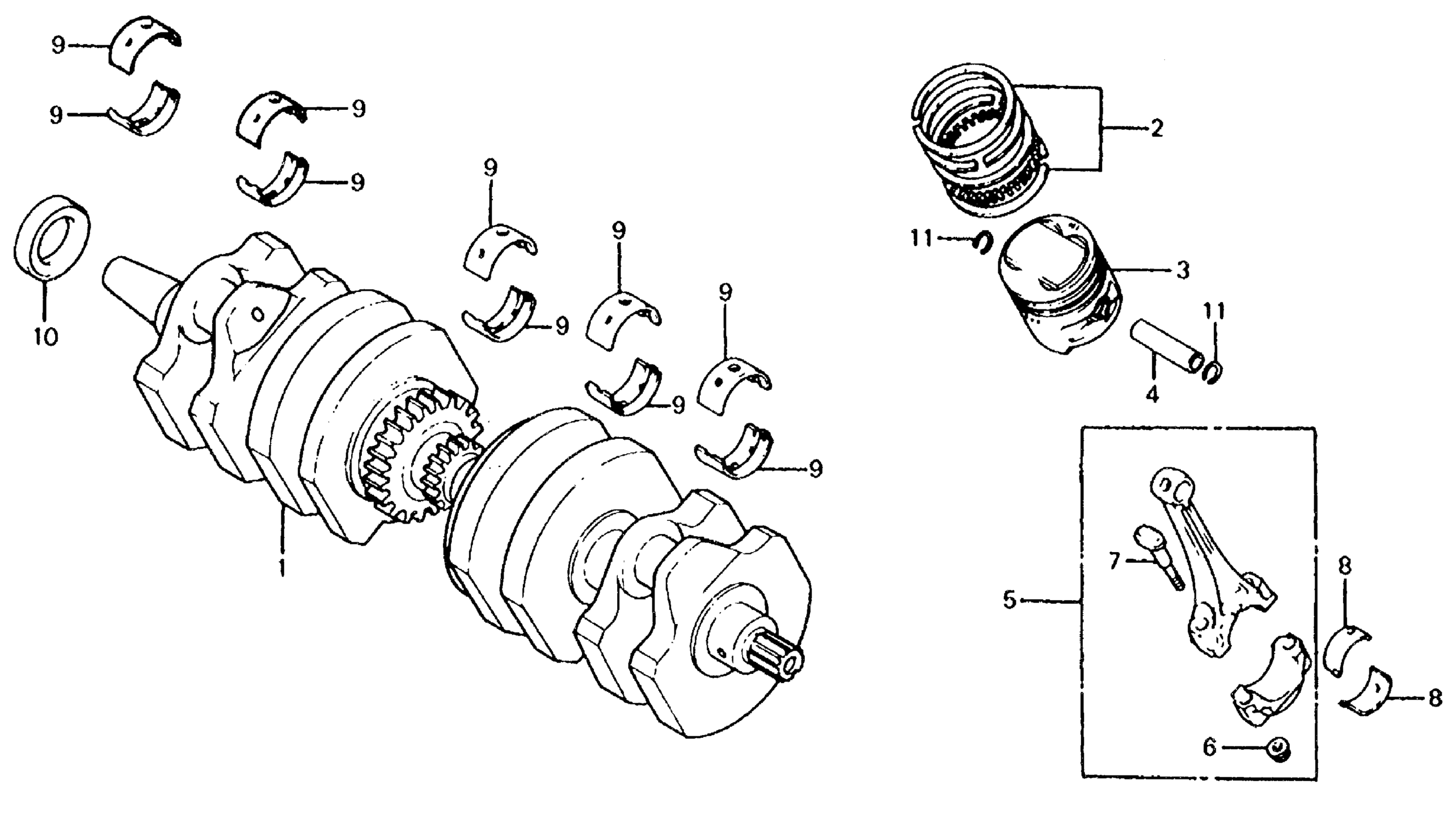

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-438-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE)

13011-MG1-671

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13021-MG1-671

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13031-MG1-671

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE)

13041-MG1-671

Unavailable

2

RING SET, PISTON (1.00)

13051-MG1-671

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-MG1-670

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-MG1-670

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-MG1-670

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-MG1-670

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-MG1-670

Unavailable

4

PIN, PISTON

13111-413-000

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13202-MA3-000.

13203-MA3-405

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13203-MA3-000.

13203-MA3-405

Unavailable

5

ROD ASSY., CONNECTING

13203-MA3-405

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13204-MA3-000.

13203-MA3-405

Unavailable

5

ROD ASSY., CONNECTING This part replaces 13205-MA3-000.

13203-MA3-405

Unavailable

6

NUT, CONNECTING ROD

13205-634-010

$5.26

6

NUT, CONNECTING ROD This part replaces 13205-689-004.

13205-634-010

$5.26

7

BOLT, CONNECTING ROD (NAGOYA NEJI)

13213-463-003

$16.11

8

BEARING A, CONNECTING ROD (BLUE) (TAIHO) This part replaces 13214-413-004.

13214-413-015

$14.67

8

BEARING A, CONNECTING ROD (BLUE) (TAIHO) This part replaces 13214-413-005.

13214-413-015

$14.67

8

BEARING A, CONNECTING ROD (BLUE) (TAIHO)

13214-413-015

$14.67

8

BEARING B, CONNECTING ROD (BLACK) (TAIHO) This part replaces 13215-413-004.

13215-413-015

$16.52

8

BEARING B, CONNECTING ROD (BLACK) (TAIHO) This part replaces 13215-413-005.

13215-413-015

$16.52

8

BEARING B, CONNECTING ROD (BLACK) (TAIHO)

13215-413-015

$16.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO) This part replaces 13216-413-004.

13216-413-015

$16.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO) This part replaces 13216-413-005.

13216-413-015

$16.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO)

13216-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO) This part replaces 13217-413-004.

13217-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO) This part replaces 13217-413-005.

13217-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO)

13217-413-015

$16.52

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO) This part replaces 13218-413-004.

13218-413-015

$17.31

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO) This part replaces 13218-413-005.

13218-413-015

$17.31

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO)

13218-413-015

$17.31

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO)

13315-425-003

$18.95

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO)

13316-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO)

13317-425-003

$18.95

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO)

13318-425-003

$21.05

9

BEARING E, CRANKSHAFT (BLUE) (DAIDO)

13319-425-003

Unavailable

10

OIL SEAL (25X42X8)

91201-425-003

$9.20

11

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
