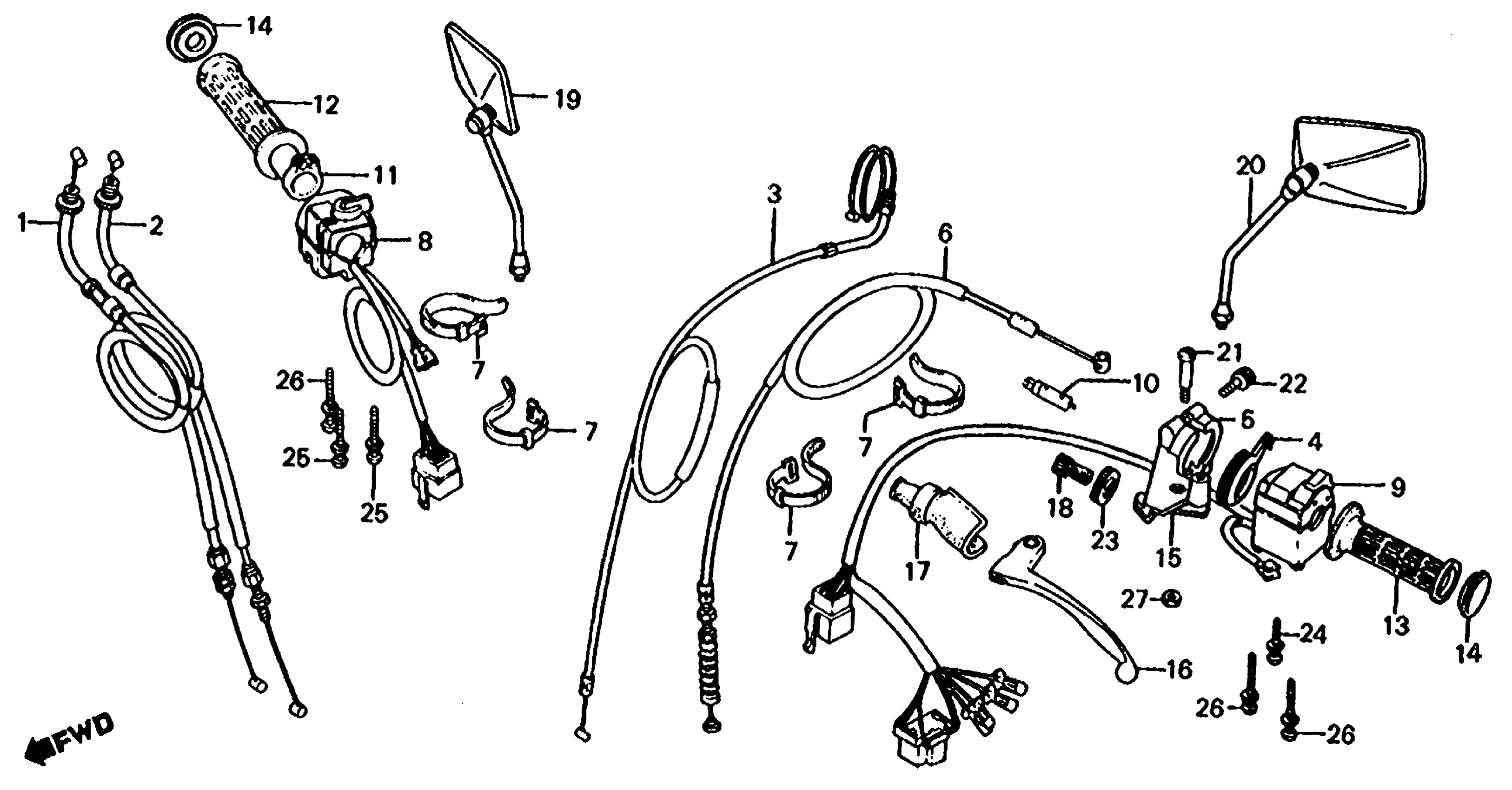

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-425-030.

17910-425-405

Unavailable

1

CABLE A, THROTTLE

17910-425-405

Unavailable

2

CABLE B, THROTTLE

17920-425-030

Unavailable

3

CABLE, CHOKE

17950-MG1-000

Unavailable

4

LEVER, CHOKE This part replaces 17962-MB0-000.

17962-ME8-000

Unavailable

4

LEVER, CHOKE

17962-ME8-000

Unavailable

5

HOLDER, CHOKE LEVER This part replaces 17963-MB0-000.

17963-ME8-000

Unavailable

5

HOLDER, CHOKE LEVER

17963-ME8-000

Unavailable

6

CABLE, CLUTCH (NOT AVAILABLE) This part replaces 22870-MG1-000.

22870-425-700

Unavailable

6

CABLE, CLUTCH (NOT AVAILABLE)

22870-425-700

Unavailable

7

BAND B1, CABLE

32161-404-000

$2.23

8

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE)

35130-MB1-305

Unavailable

8

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) | Use up to Frame SN DA005602 This part replaces 35130-MB1-671.

35130-MB1-305

Unavailable

8

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) | Use from Frame SN DA005603 This part replaces 35130-MB1-672.

35130-MB1-305

Unavailable

9

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN DA005602 This part replaces 35200-MB1-671.

35200-MB1-672

Unavailable

9

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN DA005603

35200-MB1-672

Unavailable

10

SWITCH, FR. LEVER

35330-413-003

$21.91

11

PIPE, THROTTLE GRIP

53141-300-010

$20.93

12

GRIP, R. HANDLE

53165-MB1-000

Unavailable

13

GRIP, L. HANDLEBAR

53166-MB1-000

Unavailable

14

CAP, GRIP RUBBER

53171-MB1-000

$3.81

15

BRACKET, L. CONTROL LEVER (NOT AVAILABLE)

53172-MG1-000

Unavailable

16

LEVER, L. HANDLEBAR

53178-MF5-000

Unavailable

16

LEVER, L. HANDLEBAR This part replaces 53178-MG1-000.

53178-MF5-000

Unavailable

17

BOOT, HANDLEBAR

53180-425-010

$18.53

18

BOLT, CABLE ADJUSTING

53192-422-000

Unavailable

18

BOLT, CABLE ADJUSTING This part replaces 53192-425-000.

53192-422-000

Unavailable

19

MIRROR, R.

88110-MB1-003

Unavailable

20

MIRROR, L.

88120-MB1-003

Unavailable

21

BOLT, L. HANDLEBAR CONTROL LEVER PIVOT

90113-422-000

$8.96

22

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

23

NUT, FIXING

90321-422-000

Unavailable

24

SCREW-WASHER (5X28)

93891-05028-07

$1.49

25

SCREW-WASHER (5X32)

93891-05032-00

$1.49

25

SCREW-WASHER (5X32)

93891-05032-07

$1.49

26

SCREW-WASHER (5X45)

93891-05045-07

$1.49

27

NUT, FLANGE (6MM)

94050-06000

$1.49
