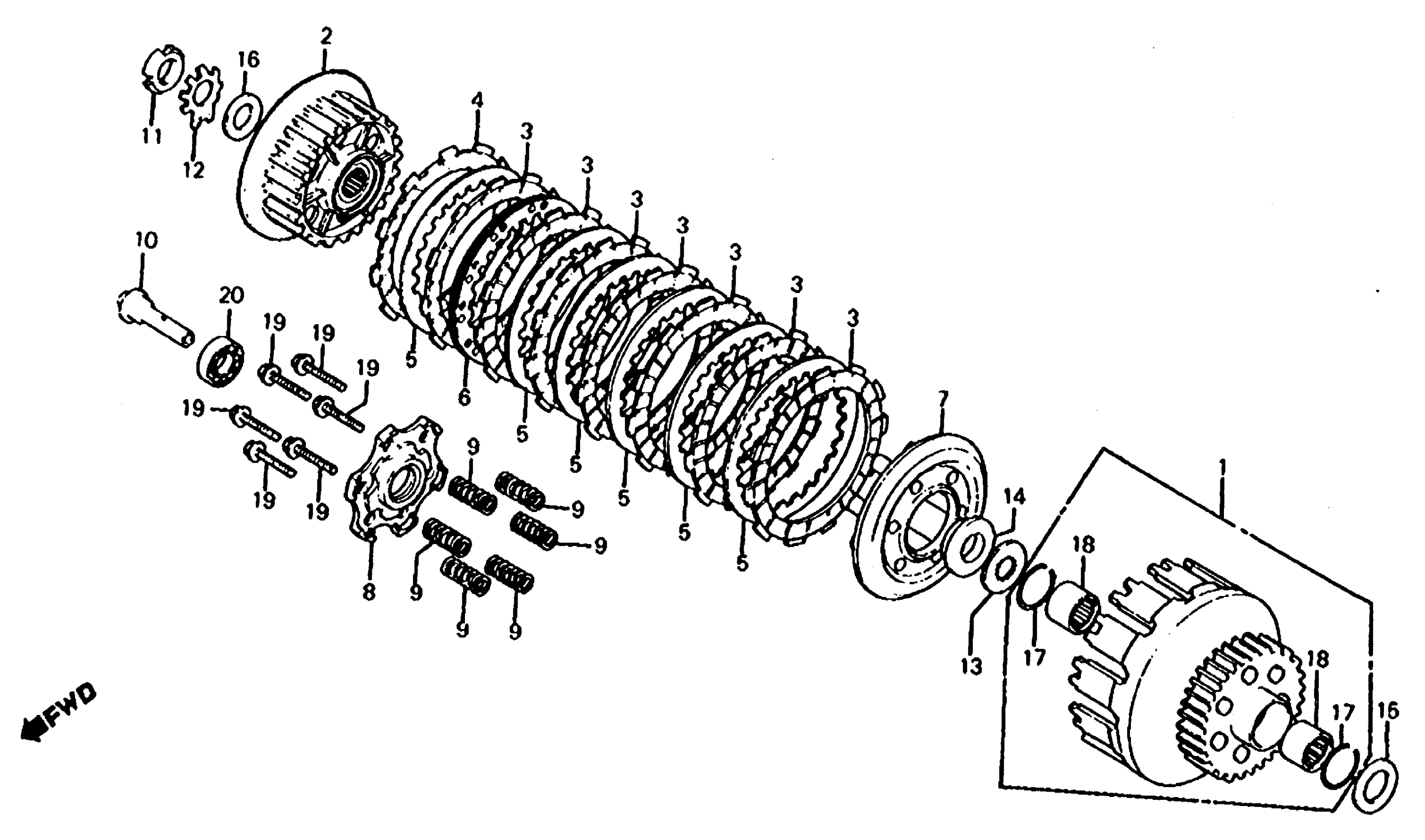

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 CLUTCH Diagram

CLUTCH (OUTER) This part replaces 22100-MA3-000.

22100-MG5-670

Unavailable

CLUTCH (OUTER)

22100-MG5-670

Unavailable

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22120-425-000.

22120-MG5-670

Unavailable

DISK A, CLUTCH FRICTION This part replaces 22201-MN5-020.

22201-MT8-000

$20.25

DISK A, CLUTCH FRICTION

22201-MT8-000

$20.25

DISK A, CLUTCH FRICTION This part replaces 22201-425-000.

22201-MT8-000

$20.25

DISK B, CLUTCH FRICTION

22202-MT8-000

$20.25

DISK B, CLUTCH FRICTION This part replaces 22202-425-000.

22202-MT8-000

$20.25

PLATE, CLUTCH

22321-425-000

$28.37

PLATE B, CLUTCH

22322-425-000

Unavailable

PLATE, CLUTCH PRESSURE

22350-425-000

Unavailable

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-MG1-670

Unavailable

SPRING, CLUTCH This part replaces 22401-MG1-670.

22401-MG5-670

Unavailable

SPRING, CLUTCH

22401-MG5-670

Unavailable

GUIDE, CLUTCH LIFTER (NOT AVAILABLE)

22843-425-000

Unavailable

NUT, LOCK (16MM)

90231-KCS-651

$4.21

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

WASHER, SPRING (16MM)

90431-292-000

$2.92

WASHER, SPLINE (23MM) This part replaces 90432-371-000.

90433-MB0-000

$15.39

WASHER, SPLINE (23MM)

90433-MB0-000

$15.39

COLLAR, CLUTCH (NOT AVAILABLE)

90432-425-000

Unavailable

WASHER A, THRUST (25MM) (NOT AVAILABLE) This part replaces 90455-333-010.

90466-MC7-000

Unavailable

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

CLIP, BEARING STOPPER

90602-MA3-300

Unavailable

BEARING, NEEDLE (25X32X16) (NOT AVAILABLE)

91010-MA3-003

Unavailable

BOLT, FLANGE (6X25)

95725-06025-00

Unavailable

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
