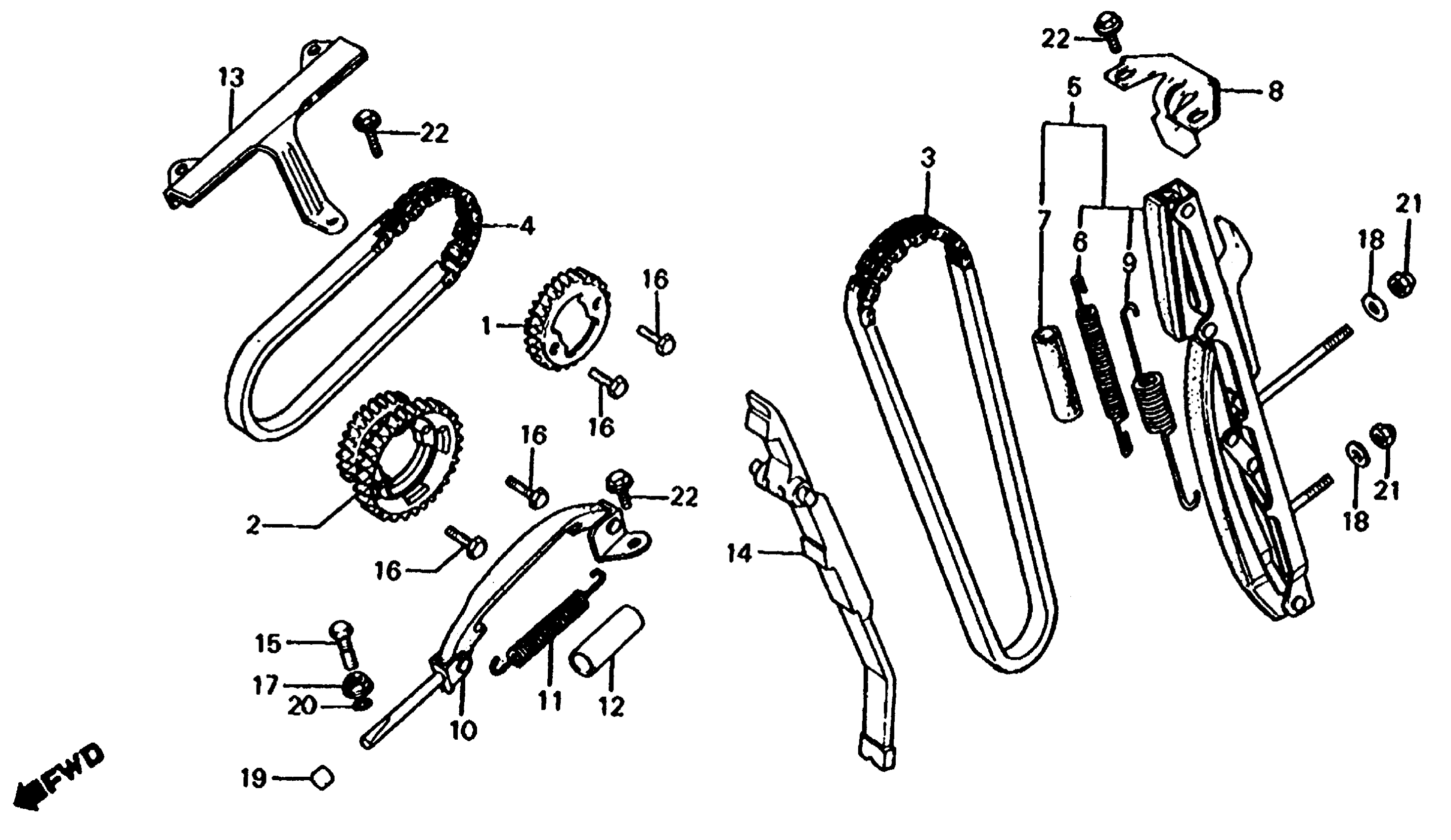

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 CAM CHAIN + TENSIONER Diagram

SPROCKET, IN. CAM This part replaces 14321-425-020.

14321-MA3-000

Unavailable

SPROCKET, CAM (NOT AVAILABLE)

14322-425-020

Unavailable

CHAIN, CAM (BORG WARNER) (NOT AVAILABLE) This part replaces 14401-MA3-003.

14401-MN4-003

Unavailable

CHAIN, CAM (BORG WARNER)

14401-MN4-003

Unavailable

CHAIN B, CAM

14402-MA3-003

Unavailable

TENSIONER A, CAM CHAIN

14500-MG1-670

Unavailable

SPRING A, CAM CHAIN TENSIONER

14518-MA3-620

Unavailable

TUBE, CAM CHAIN TENSIONER SPRING

14519-MA3-620

Unavailable

PLATE, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14521-438-000

Unavailable

SPRING, TENSIONER DAMPER (NOT AVAILABLE)

14528-MG1-670

Unavailable

TENSIONER B, CAM CHAIN

14530-MG5-670

Unavailable

TENSIONER B, CAM CHAIN This part replaces 14530-425-010.

14530-MG5-670

Unavailable

SPRING B, CAM CHAIN TENSIONER

14538-425-000

Unavailable

TUBE, CAM CHAIN TENSIONER SPRING

14539-425-000

Unavailable

GUIDE B, CAM CHAIN

14541-425-020

Unavailable

GUIDE, CAM CHAIN

14620-438-010

Unavailable

BOLT, TENSIONER ADJUSTING

90021-469-000

Unavailable

BOLT, UBS (7X15) This part replaces 90026-MB0-000.

90026-MM8-000

$2.92

BOLT, UBS (7X15) This part replaces 90026-ME9-000.

90026-MM8-000

$2.92

BOLT, UBS (7X15)

90026-MM8-000

$2.92

NUT, FLANGE (10MM)

90202-469-000

Unavailable

WASHER, SEALING (6MM)

90441-706-000

$1.49

SEAL, PLUG (11.5X7)

91208-422-003

$6.02

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

NUT, CAP (6MM)

90201-415-000

$2.05

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
