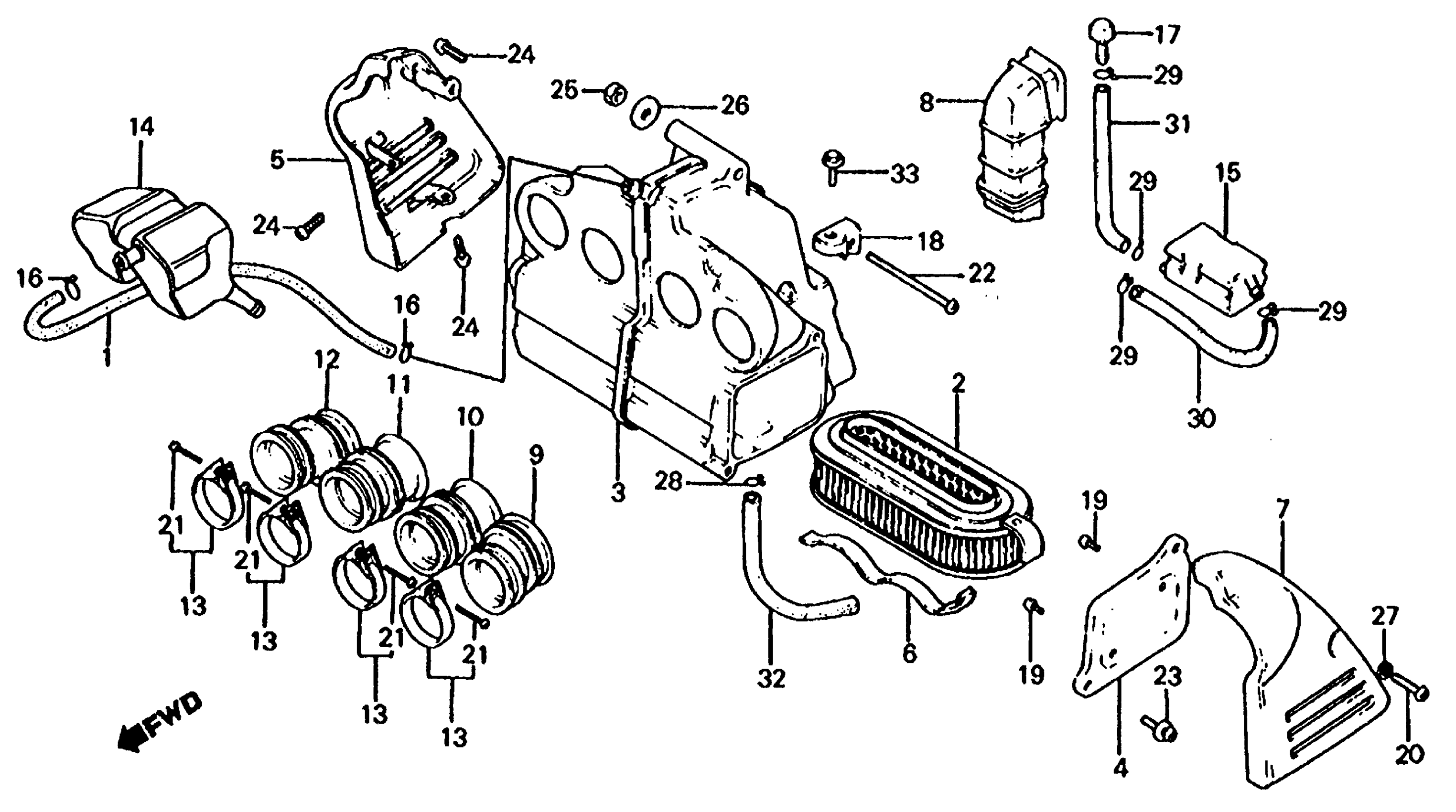

Honda CB1000CA (83) 1000 CUSTOM, JPN, VIN# 1HFSC100-DA000001 TO 1HFSC100-DA007620 AIR CLEANER Diagram

#

Description
Price

1

TUBE, CENTER BREATHER (NOT AVAILABLE)

11357-MG1-000

Unavailable

2

ELEMENT, AIR CLEANER

17211-425-000

$32.44

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17213-425-020

Unavailable

4

CAP, AIR CLEANER (NOT AVAILABLE)

17221-461-300

Unavailable

5

COVER, R. AIR CLEANER (NOT AVAILABLE)

17222-MG1-000

Unavailable

6

SPRING, ELEMENT SETTING

17223-425-000

Unavailable

7

COVER, L. AIR CLEANER (NOT AVAILABLE)

17232-461-000

Unavailable

8

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-425-670

Unavailable

9

TUBE 1, AIR CLEANER CONNECTING

17251-438-000

Unavailable

10

TUBE 2, AIR CLEANER CONNECTING

17252-438-000

Unavailable

11

TUBE 3, AIR CLEANER CONNECTING

17253-438-000

Unavailable

12

TUBE 4, AIR CLEANER CONNECTING

17254-438-000

Unavailable

13

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

14

TANK, BREATHER (NOT AVAILABLE)

17300-MG1-000

Unavailable

15

TANK, STORAGE (NOT AVAILABLE)

17300-425-000

Unavailable

16

CLIP, BREATHER TUBE

17316-611-000

$9.23

17

PLUG, BREATHER TUBE

17370-419-700

$3.74

18

STAY, AIR CLEANER HANGER (NOT AVAILABLE)

17375-461-000

Unavailable

19

SCREW, PAN (4X6)

93500-04006-0A

$1.49

20

SCREW, PAN (5X14)

93500-05014-0B

$1.49

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

22

SCREW, PAN (6X70)

93500-06070-0A

$1.49

23

SCREW-WASHER (5X16)

93891-05016-07

$1.49

24

SCREW, TAPPING (4X12)

93901-14380

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

25

NUT, HEX. (6MM)

94001-06080-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

26

WASHER, PLAIN (6MM)

94103-06800

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

CLIP, TUBE (C11)

95002-70000

$1.56

29

CLIP, TUBE (C12)

95002-80000

$1.49

30

BULK HOSE, VINYL (8X12X8000) (8X12X190)

95003-23008-60M

Unavailable

31

BULK HOSE, VINYL (8X12X8000) (8X12X290)

95003-23008-60M

Unavailable

32

BULK HOSE, VACUUM (8X1000) (8X490)

95005-80001-30M

Unavailable

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

33

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
