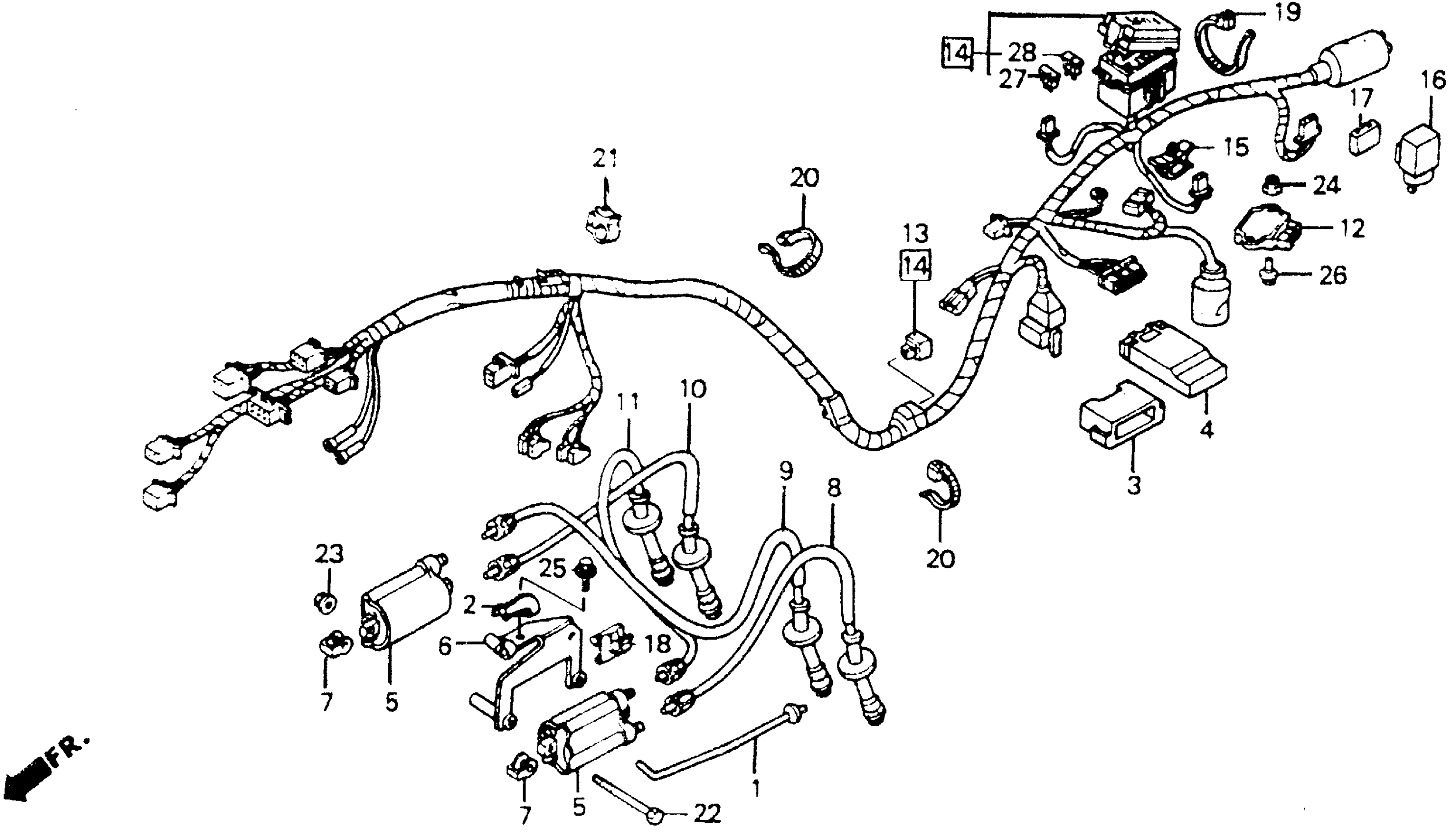

Honda CB1000AC (95) MOTORCYCLE, JPN, VIN# JH2SC301-SM000001 WIRE HARNESS Diagram

#

Description
Price

1

ROD, TANK OPEN (NOT AVAILABLE)

17515-MZ1-000

Unavailable

2

STOPPER, TANK OPEN ROD (SOURCE: VINTAGE PARTS INC.)

17516-MZ1-000

Unavailable

3

RUBBER, SPARK UNIT (SOURCE: VINTAGE PARTS INC.)

30405-MS2-000

Unavailable

4

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-MZ1-691

Unavailable

5

COIL, IGNITION

30510-KT7-023

$142.15

6

STAY, IGNITION COIL (NOT AVAILABLE)

30515-MZ1-000

Unavailable

7

SPACER, IGNITION COIL

30520-ML7-000

$3.77

8

CAP ASSY. 1, IGNITION (NOT AVAILABLE)

30751-MZ1-000

Unavailable

9

CAP ASSY. 2, IGNITION (NOT AVAILABLE)

30752-MZ1-000

Unavailable

10

CAP ASSY. 3, IGNITION (NOT AVAILABLE)

30753-MZ1-000

Unavailable

11

CAP ASSY. 4, IGNITION (NOT AVAILABLE)

30754-MZ1-000

Unavailable

12

RECTIFIER ASSY., REGULATE

31600-MS2-601

$373.69

13

RECTIFIER, SILICON

31700-196-000

$26.42

14

WIRE HARNESS (NOT AVAILABLE)

32100-MZ1-770

Unavailable

15

CLIP, WIRE HARNESS

32171-GJ1-003

$3.47

16

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

17

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

18

CLIP, FLAG POLE (NOT AVAILABLE)

50323-HE0-671

Unavailable

19

BAND, WIRE HARNESS

90650-MA6-720

$4.15

20

BAND, WIRE HARNESS

90651-MA6-720

$3.73

21

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

22

BOLT, HEX. (6X60) (NOT AVAILABLE)

92101-06060-4J

Unavailable

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

NUT, FLANGE (6MM)

94050-06080

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

27

FUSE, BLADE (10A)

98200-31000

$1.49

28

FUSE, BLADE (15A)

98200-31500

$1.49
