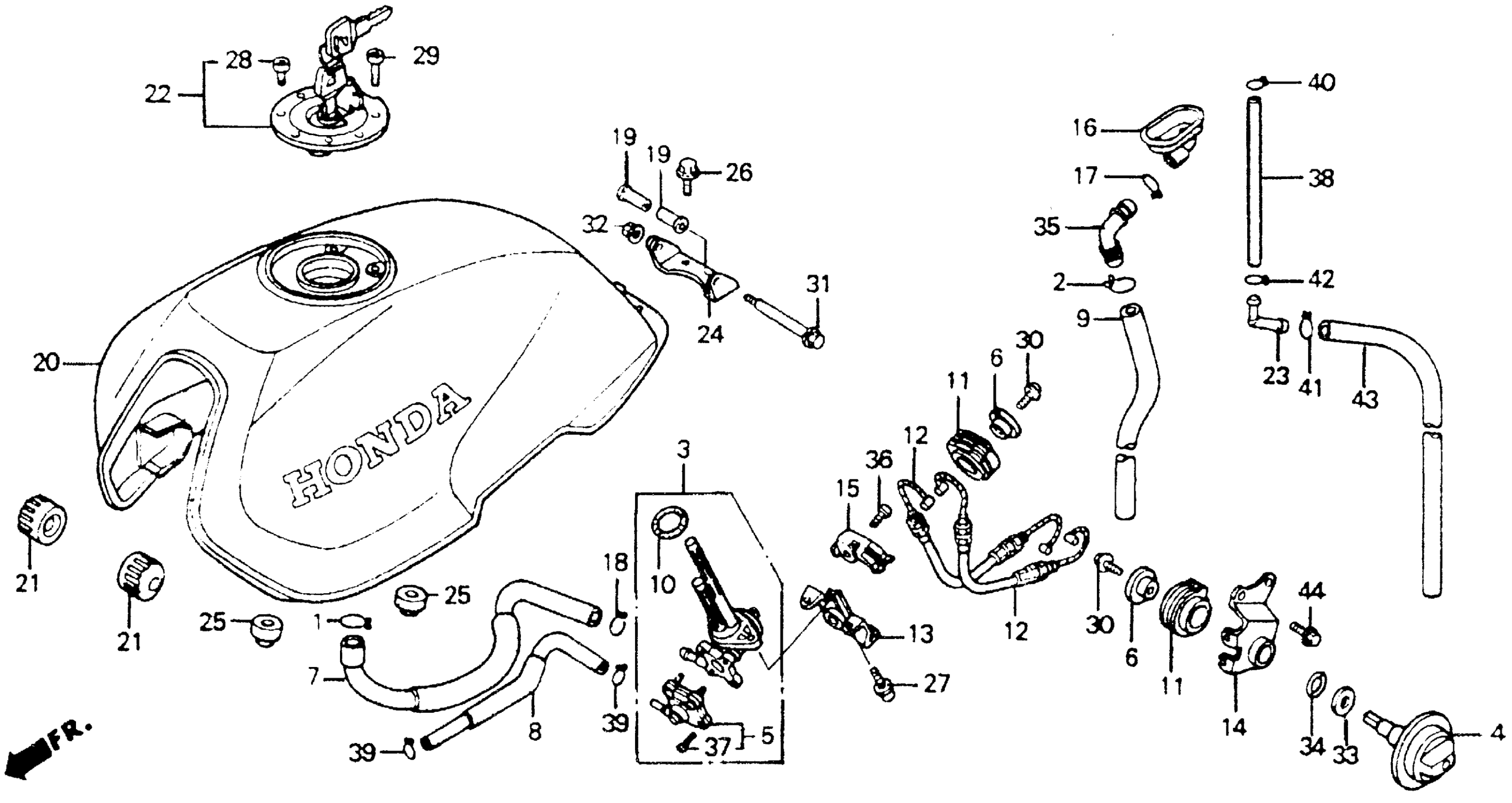

Honda CB1000AC (95) MOTORCYCLE, JPN, VIN# JH2SC301-SM000001 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

2

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

3

COCK ASSY,FUEL This part replaces 16950-MZ1-000.

16950-MZ1-013

Unavailable

4

LEVER, PETCOCK (NOT AVAILABLE)

16952-MZ1-000

Unavailable

5

COVER SET, PETCOCK

16953-MBZ-B51

$52.66

5

COVER SET, PETCOCK This part replaces 16953-MV9-000.

16953-MBZ-B51

$52.66

6

COLLAR, PETCOCK (SOURCE: VINTAGE PARTS INC.)

16953-MZ1-000

Unavailable

7

TUBE, FUEL (NOT AVAILABLE)

16955-MZ1-000

Unavailable

8

TUBE, VACUUM (NOT AVAILABLE)

16956-MZ1-770

$4.69

9

TUBE, FUEL TANK DRAIN (NOT AVAILABLE)

16957-MZ1-000

Unavailable

10

O-RING

16958-KY6-003

$4.08

11

DRUM, REMOTE PETCOCK (SOURCE: VINTAGE PARTS INC.)

16964-MZ1-000

Unavailable

12

CABLE A, PETCOCK (NOT AVAILABLE)

16970-MZ1-790

Unavailable

13

BRACKET, PETCOCK (NOT AVAILABLE)

16971-MZ1-000

Unavailable

14

STAY, PETCOCK LEVER (SOURCE: VINTAGE PARTS INC.)

16974-MZ1-000

Unavailable

15

PLATE, PETCOCK LEVER (NOT AVAILABLE)

16975-MZ1-790

Unavailable

16

TRAY, FUEL TANK DRAIN (NOT AVAILABLE)

17223-MN8-700

Unavailable

17

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

18

CLIP, BREATHER TUBE

17371-174-670

$2.20

19

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

20

TANK SET, FUEL *NH1* (TYPE9) (WL) (BLACK) (NOT AVAILABLE)

17520-MZ1-850ZA

Unavailable

21

CUSHION, FR. FUEL TANK

17611-425-000

$8.18

22

CAP COMP.,FUEL FILL This part replaces 17620-MT4-010.

17620-MT4-040

$266.95

22

CAP COMP.,FUEL FILL This part replaces 17620-MT4-020.

17620-MT4-040

$266.95

22

CAP COMP.,FUEL FILL This part replaces 17620-MT4-030.

17620-MT4-040

$266.95

24

STAY, FUEL TANK PIVOT (SOURCE: VINTAGE PARTS INC.)

50197-MZ1-000

Unavailable

25

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

26

BOLT, FLANGE (6X16) (NSHF) This part replaces 90001-GHB-630.

90004-GHB-630

$3.51

26

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

27

BOLT, SOCKET (6X18) (NOT AVAILABLE)

90002-KN8-730

Unavailable

28

BOLT, SOCKET (4X6)

90073-MT4-000

$3.83

29

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

30

SCREW, HANDLE COVER SETTING

90103-GB6-930

$3.44

31

BOLT, TANK HINGE

90135-MS2-000

$6.22

32

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

33

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

34

WASHER, WAVE (17.5MM)

90505-MR7-000

$5.92

35

JOINT, TUBE

91463-MC4-000

$5.90

36

SCREW, PAN (4X8)

93500-04008-0H

$1.49

37

SCREW-WASHER (4X16)

93892-04016-08

$1.49

37

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

39

CLIP, TUBE (B7)

95002-02070

$1.80

40

CLIP, TUBE (B8)

95002-02080

$1.80

44

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
