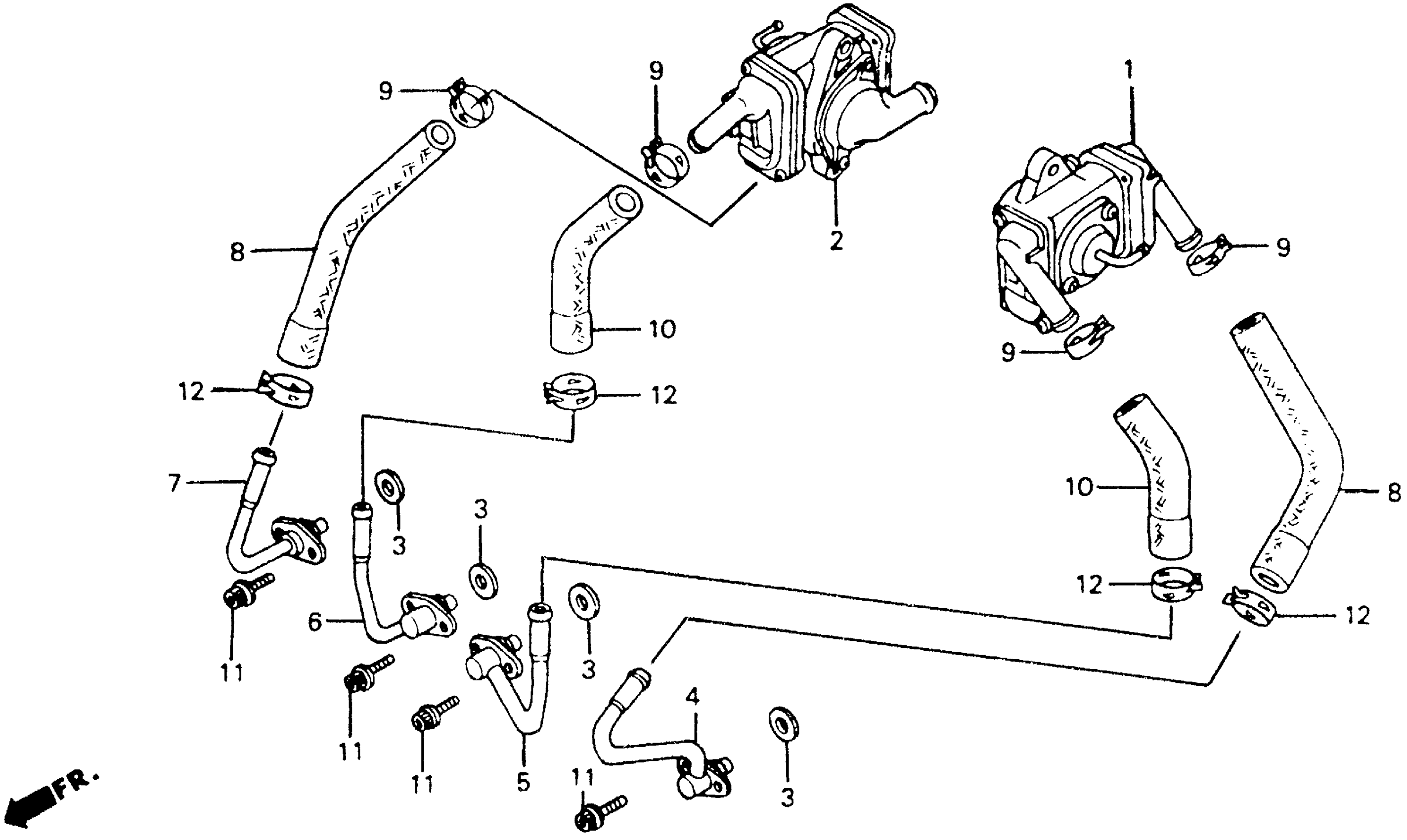

Honda CB1000AC (95) MOTORCYCLE, JPN, VIN# JH2SC301-SM000001 AIR SUCTION VALVE Diagram

#

Description
Price

1

VALVE ASSY., L. AIR SUCTION (NOT AVAILABLE)

18610-MZ1-650

Unavailable

2

VALVE ASSY., R. AIR SUCTION (NOT AVAILABLE)

18620-MZ1-650

Unavailable

3

GASKET, AIR PATH PIPE

18621-MS6-930

$4.08

4

PIPE 1, AIR PATH (NOT AVAILABLE)

18641-MZ1-650

Unavailable

5

PIPE 2, AIR PATH (NOT AVAILABLE)

18644-MZ1-650

Unavailable

6

PIPE 3, AIR PATH (NOT AVAILABLE)

18646-MZ1-650

Unavailable

7

PIPE 4, AIR PATH (NOT AVAILABLE)

18648-MZ1-650

Unavailable

8

TUBE 1, AIR SUCTION VALVE (NOT AVAILABLE)

18651-MZ1-650

Unavailable

9

CLAMP, AIR SUCTION VALVE TUBE (NOT AVAILABLE)

18652-MS2-680

Unavailable

10

TUBE 2, AIR SUCTION VALVE (NOT AVAILABLE)

18652-MZ1-650

Unavailable

11

BOLT, FLANGE SOCKET (6X18) (SOURCE: VINTAGE PARTS INC.)

90072-MF5-860

Unavailable

12

CLAMP, TUBE (D17)

91405-PM5-004

$8.97

12

CLAMP, TUBE (D17) This part replaces 91405-679-004.

91405-PM5-004

$8.97
