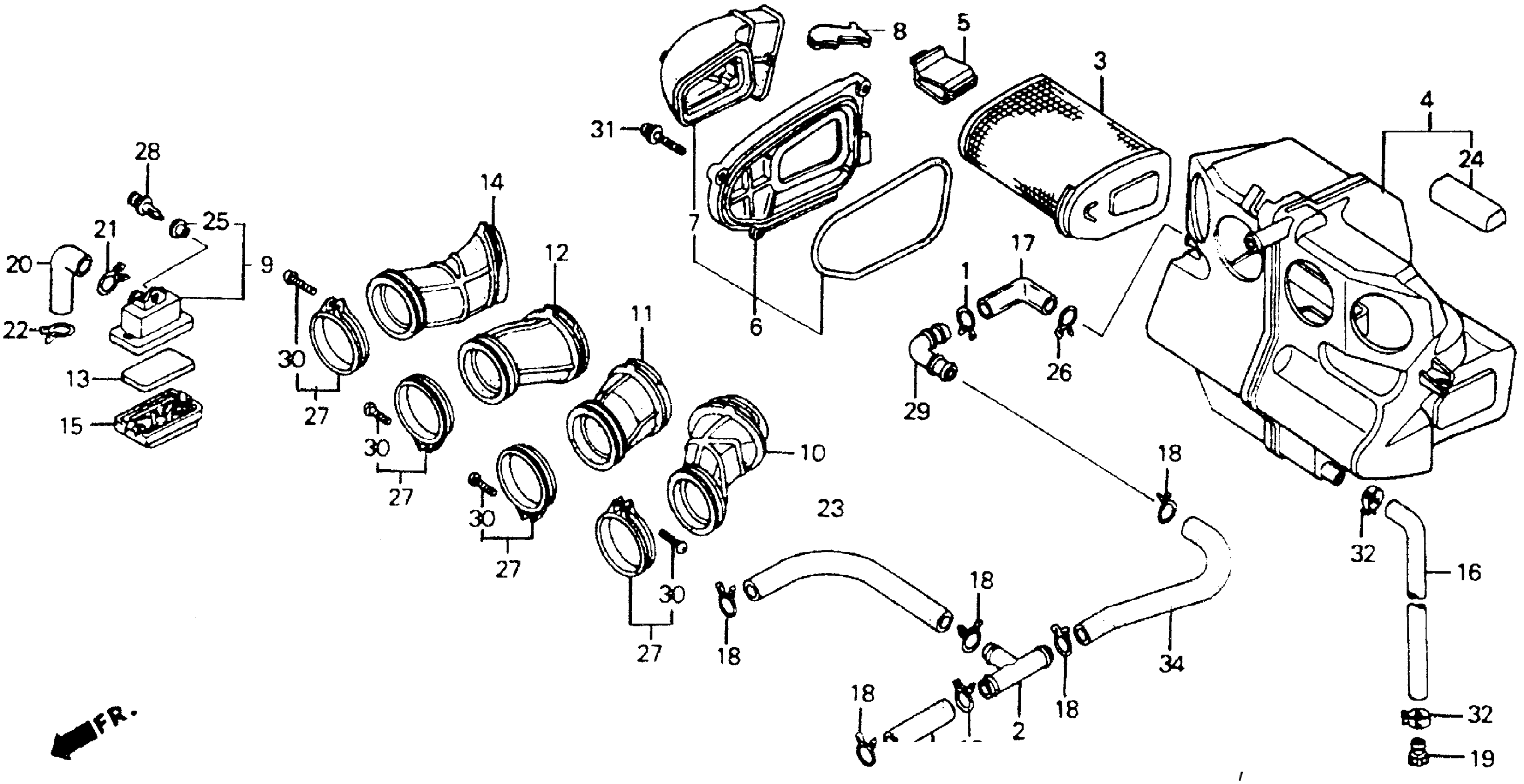

Honda CB1000AC (95) MOTORCYCLE, JPN, VIN# JH2SC301-SM000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

2

JOINT, BREATHER THREE WAY

15772-376-000

$17.75

3

AIR CLEANER (NOT AVAILABLE)

17211-MZ1-000

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17215-MZ1-650

Unavailable

5

HOLDER, AIR CLEANER ELEMENT (NOT AVAILABLE)

17217-MM5-000

Unavailable

6

COVER, AIR CLEANER HOUSING (SOURCE: VINTAGE PARTS INC.)

17220-MZ1-000

Unavailable

7

DUCT, R. AIR CLEANER IN. (NOT AVAILABLE)

17240-MZ1-300

Unavailable

8

SEPARATOR, L. DUCT (NOT AVAILABLE)

17244-MS2-000

Unavailable

9

CASE, SUB-AIR CLEANER

17251-KT8-000

$23.78

10

TUBE 1, AIR CLEANER CONNECTING (NOT AVAILABLE)

17251-MZ1-300

Unavailable

11

TUBE 2, AIR CLEANER CONNECTING (NOT AVAILABLE)

17252-MZ1-300

Unavailable

12

TUBE 3, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-MZ1-300

Unavailable

13

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$1.94

14

TUBE 4, AIR CLEANER CONNECTING (NOT AVAILABLE)

17254-MZ1-300

Unavailable

15

COVER, SUB-AIR CLEANER

17256-MM4-000

$17.55

16

TUBE, AIR CLEANER DRAIN (NOT AVAILABLE)

17265-MM5-000

Unavailable

17

TUBE A, DRAIN

17366-428-670

$7.64

18

CLIP, BREATHER TUBE

17369-KB4-670

$5.16

19

PLUG, BREATHER TUBE

17370-419-700

$3.49

20

TUBE, MINI CLEANER (NOT AVAILABLE)

17371-MZ1-000

Unavailable

21

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

22

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

23

TUBE, R. AIR IN. (NOT AVAILABLE)

18656-MZ1-650

Unavailable

24

RUBBER, SEAL (NOT AVAILABLE)

81240-MZ1-300

Unavailable

25

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

26

CLIP, AIR HOSE (16MM)

90646-657-000

$6.82

27

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 90652-GHB-730.

95018-60250

$5.81

27

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$5.81

28

CLIP, BODY COVER

90683-GR1-003

$2.71

29

JOINT, TUBE

91463-MC4-000

$5.50

30

SCREW, PAN (4X25)

93500-04025-0G

$0.59

31

SCREW-WASHER (5X20)

93891-05020-08

$1.04

32

CLAMP, TUBE (D12.5)

95002-41250-08

$2.30

33

BULK HOSE, VACUUM (12X1000) (12X70)

95005-12001-10M

Unavailable

34

BULK HOSE, VACUUM (12X1000) (12X420)

95005-12001-10M

Unavailable
