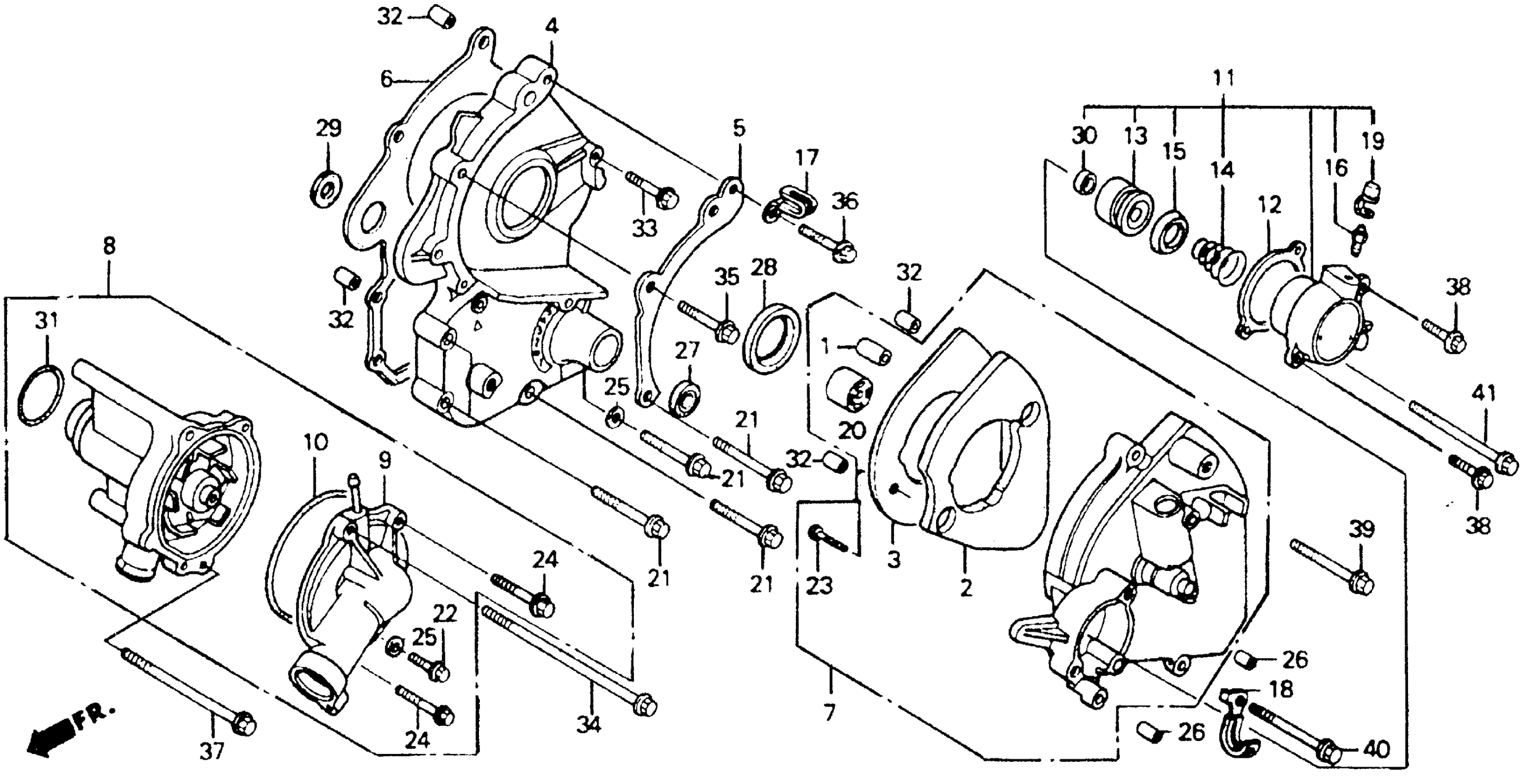

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 WATER PUMP Diagram

#

Description
Price

1

DAMPER, R. COVER (NOT AVAILABLE)

11332-MB4-300

Unavailable

2

RUBBER, L. RR. COVER

11352-MZ1-000

$27.38

3

PLATE, L. RR. COVER RUBBER

11353-MZ1-000

$16.86

4

HOLDER, L. SIDE (NOT AVAILABLE)

11360-MZ1-000

Unavailable

5

PLATE, DRIVE CHAIN GUIDE (NOT AVAILABLE)

11365-MM5-000

Unavailable

6

GASKET, L. SIDE (NOT AVAILABLE)

11394-MW7-790

Unavailable

7

COVER ASSY., L. RR. CRANKCASE (NOT AVAILABLE)

11650-MZ1-670

Unavailable

8

WATER PUMP ASSY. (NOT AVAILABLE)

19200-MZ1-315

Unavailable

9

COVER, WATER PUMP (SOURCE: VINTAGE PARTS INC.)

19221-MZ1-305

Unavailable

10

GASKET, WATER PUMP COVER

19226-MM5-003

$4.96

11

CYLINDER ASSY., CLUTCH SLAVE

22860-ML7-010

$126.69

12

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.64

12

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.64

13

PISTON, SLAVE CYLINDER

22863-MJ8-003

$23.93

14

SPRING, SLAVE CYLINDER

22864-MB0-003

$5.81

15

CUP, SLAVE CYLINDER

22865-MJ8-003

$10.33

16

SCREW, BLEEDER

22866-MF2-711

$4.76

17

CLIP, SUB-WIRE

32901-MA1-000

$4.74

18

CLIP, BYSTARTER WIRE (NOT AVAILABLE)

32906-GR1-000

Unavailable

19

CAP, BLEEDER

43353-461-771

$4.70

20

JOINT, SPEEDOMETER

44808-MR7-013

$8.96

21

BOLT, FLANGE (6X40) (NSHF) This part replaces 90001-GHB-710.

90004-GHB-710

$3.79

21

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

22

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.41

23

SCREW, PAN (6X14)

90118-MR1-000

$2.88

24

BOLT, FLANGE (6X25)

90121-MV9-670

$2.71

25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

26

PIN, DOWEL (8X10)

91103-429-000

$2.51

27

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$2.90

28

OIL SEAL (40X55X7) (ARAI)

91205-MM5-003

$13.07

29

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

29

OIL SEAL (8X16X6)

91254-792-003

$2.80

30

OIL SEAL (8X18X5)

91209-MB0-003

$3.77

31

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

32

PIN, DOWEL (8X14)

94301-08140

$2.04

33

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

34

BOLT, FLANGE (6X100)

95701-06100-00

$2.75

35

BOLT, FLANGE (6X35)

95801-06035-00

$0.97

36

BOLT, FLANGE (6X40) (SOURCE: VINTAGE PARTS INC.)

95801-06040-00

$1.45

37

BOLT, FLANGE (6X85)

95801-06085-00

$2.09

38

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

39

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

40

BOLT, FLANGE (6X65)

96001-06065-00

$2.30

41

BOLT, FLANGE (6X75)

96001-06075-00

$2.03
