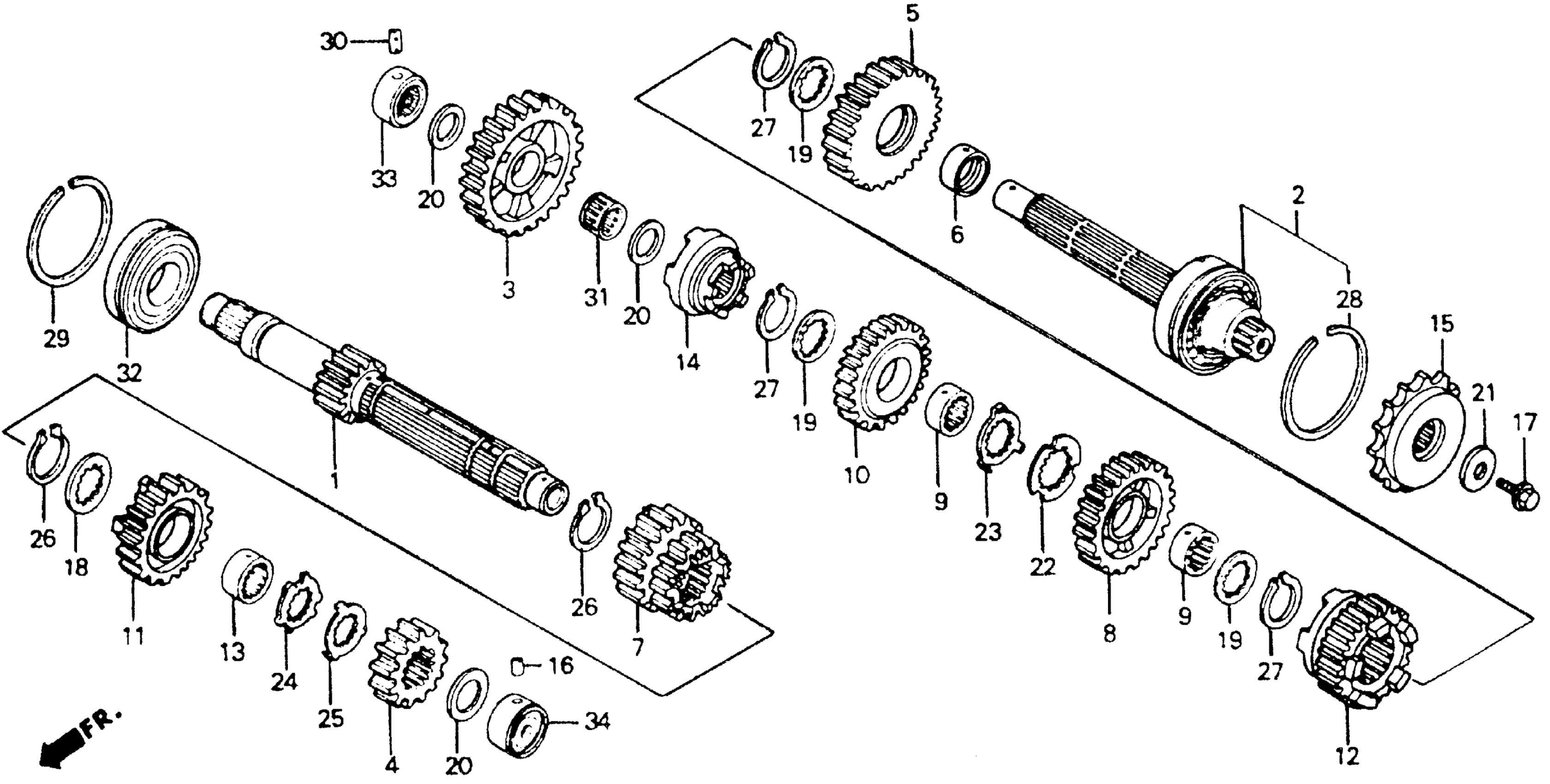

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (NOT AVAILABLE)

23211-MZ1-000

Unavailable

2

COUNTERSHAFT (SOURCE: VINTAGE PARTS INC.)

23220-MS2-610

Unavailable

3

GEAR, COUNTERSHAFT LOW (34T) (NOT AVAILABLE)

23421-MZ1-000

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23431-MZ1-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (33T) (NOT AVAILABLE)

23441-MZ1-000

Unavailable

6

COLLAR (30X11.2)

23442-MS2-610

$23.74

7

GEAR, MAINSHAFT THIRD & FOURTH (18T/23T) (NOT AVAILABLE)

23451-MZ1-010

Unavailable

8

GEAR, COUNTERSHAFT THIRD (27T) (NOT AVAILABLE)

23461-MZ1-000

Unavailable

9

COLLAR, SPLINE (30X12.7) (SOURCE: VINTAGE PARTS INC.)

23463-MM5-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (28T) (NOT AVAILABLE)

23481-MZ1-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23491-MZ1-000

Unavailable

12

GEAR, COUNTER FIFTH (26T) (NOT AVAILABLE)

23501-MZ1-000

Unavailable

13

COLLAR, SPLINE (28X15.9) (SOURCE: VINTAGE PARTS INC.)

23512-MM5-000

Unavailable

14

GEAR, SHIFTER (NOT AVAILABLE)

23521-MZ1-000

Unavailable

15

SPROCKET, DRIVE (17T)

23801-MAT-760

$98.56

15

SPROCKET, DRIVE (17T) This part replaces 23801-MZ1-610.

23801-MAT-760

$98.56

16

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

17

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

18

WASHER, SPLINE (28X34X1.5)

90451-MM5-000

$5.62

19

WASHER, THRUST SPLINE (30MM) (NOT AVAILABLE)

90452-MM5-000

Unavailable

20

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

21

WASHER (10.2MM)

90459-438-000

$5.83

22

WASHER, THRUST (30MM) (SOURCE: VINTAGE PARTS INC.)

90461-MM5-000

Unavailable

23

WASHER, LOCK (30MM) (SOURCE: VINTAGE PARTS INC.)

90462-MW7-000

Unavailable

24

WASHER, SPLINE (28X1.6) (SOURCE: VINTAGE PARTS INC.)

90464-MM5-000

Unavailable

25

WASHER, LOCK (28MM) (NOT AVAILABLE)

90465-MM5-010

Unavailable

26

CIRCLIP (28MM)

90603-MN4-000

$4.11

27

CIRCLIP (30MM)

90604-MM5-000

$4.48

28

RING, SNAP (72MM)

90605-MM5-000

$9.05

29

RING, SNAP (62MM)

90606-MM5-000

$8.66

30

PIN, BEARING SETTING (NOT AVAILABLE)

90705-MM5-000

Unavailable

31

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$34.56

32

BEARING, RADIAL BALL (28X62X16) (NOT AVAILABLE)

91004-MM5-003

Unavailable

33

BEARING, NEEDLE (22MM) (TOYO)

91022-MM5-003

$59.07

34

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05
