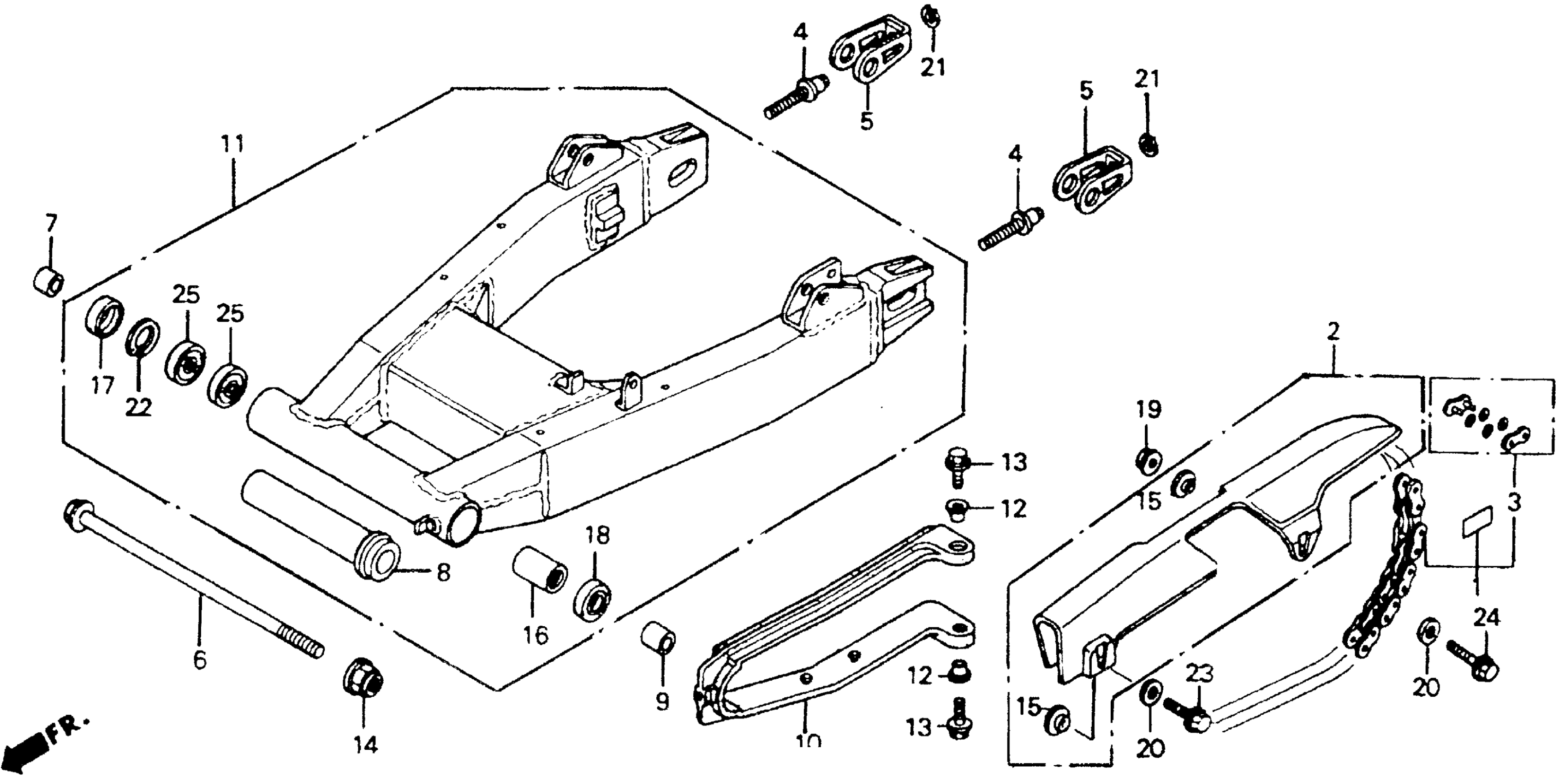

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK 102L-120L) (NOT AVAILABLE)

06405-MZ1-406

Unavailable

1

CHAIN SET, DRIVE (DID 102L-120L) (NOT AVAILABLE)

06405-MZ1-407

Unavailable

2

CASE, CHAIN (SOURCE: VINTAGE PARTS INC.)

40510-MZ1-000

Unavailable

3

MASTER LINK (DID) This part replaces 40535-MZ1-306.

40545-MCF-003

Unavailable

3

MASTER LINK (RK EXCEL) This part replaces 40535-MZ1-307.

40535-MZ1-317

$9.12

3

MASTER LINK (DID) This part replaces 40535-MZ1-316.

40545-MCF-003

Unavailable

3

MASTER LINK (RK EXCEL)

40535-MZ1-317

$9.12

4

BOLT, CHAIN ADJUSTING

40542-KV3-700

$7.52

5

ADJUSTER, CHAIN (NOT AVAILABLE)

40543-KV3-700

Unavailable

6

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

52101-MZ1-000

Unavailable

7

COLLAR B, SWINGARM PIVOT

52105-MJ0-000

$5.12

8

COLLAR, SWINGARM PIVOT DISTANCE (NOT AVAILABLE)

52141-MZ1-000

Unavailable

9

COLLAR, PIVOT (NOT AVAILABLE)

52142-MZ1-000

Unavailable

10

SLIDER, CHAIN (NOT AVAILABLE)

52170-MZ1-000

Unavailable

11

SWINGARM SET (NOT AVAILABLE)

52200-MZ1-305

Unavailable

12

COLLAR

81312-GJ5-000

$3.08

13

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

14

NUT, U (14MM)

90305-GE8-003

$3.59

15

WASHER (6X20)

90512-KF9-900

$2.85

15

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$2.85

16

BEARING, NEEDLE (24X31X28) (NOT AVAILABLE)

91063-MZ1-003

$15.85

17

OIL SEAL

91212-KM1-005

$4.59

18

DUST SEAL (24X32X5.5) (NOT AVAILABLE)

91251-KV3-831

Unavailable

19

NUT, FLANGE (6MM)

94050-06000

$0.59

20

WASHER, PLAIN (6MM)

94103-06700

$0.65

21

CIRCLIP (OUTER) (10MM)

94511-10000

$0.84

22

CIRCLIP (INNER) (32MM)

94520-32000

$1.61

23

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

24

BOLT, FLANGE (6X20)

96001-06020-07

$1.23

25

BEARING, RADIAL BALL (6002)

96100-60020-10

$10.43
