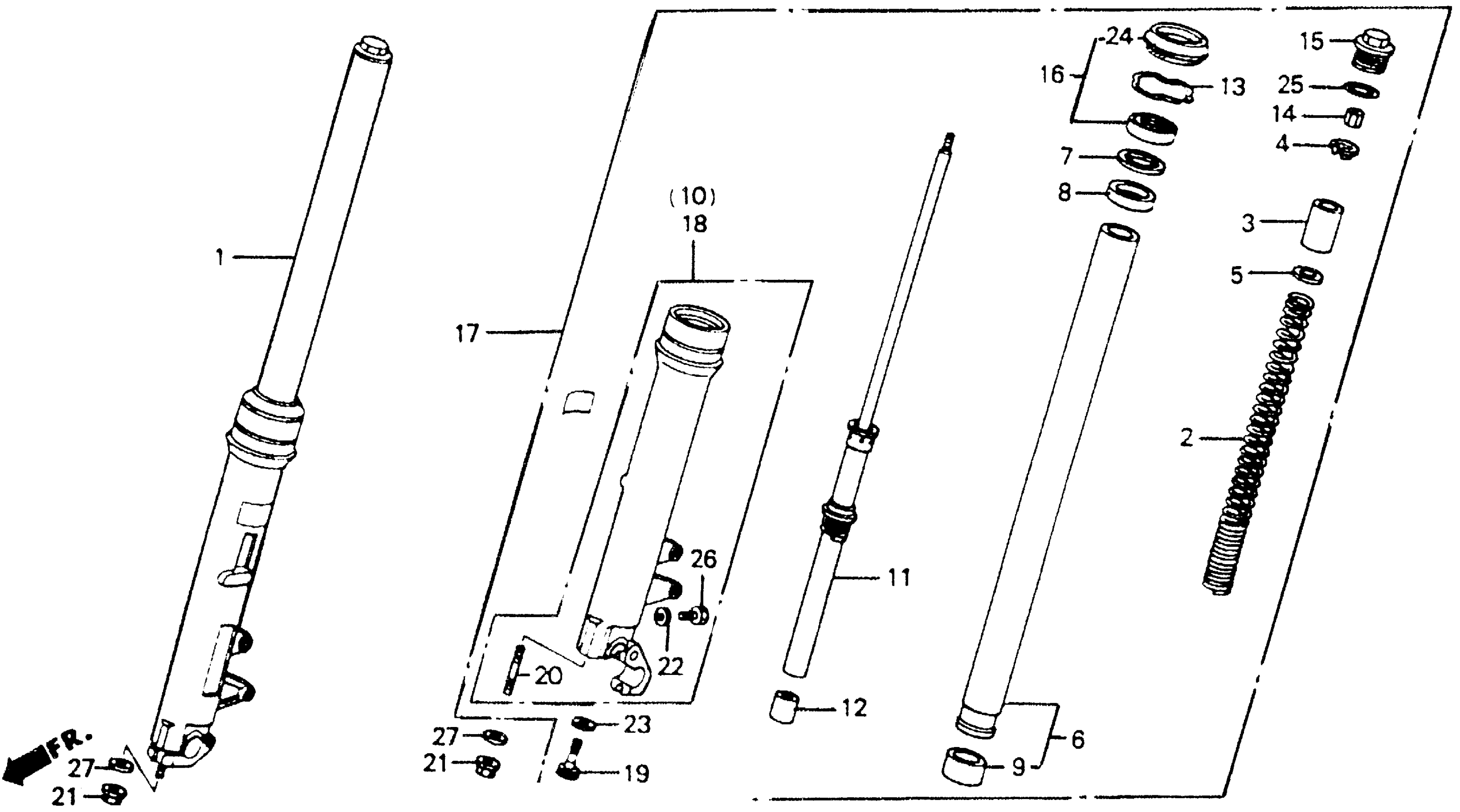

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MZ1-851

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MZ1-003

Unavailable

3

COLLAR, SPRING

51402-MZ1-003

$35.92

4

SEAT, SPRING

51404-MR7-003

$11.28

5

SEAT, SPRING

51405-KA4-711

$6.23

6

PIPE, FR. FORK (SOURCE: VINTAGE PARTS INC.)

51410-MZ1-003

Unavailable

7

RING, BACK-UP

51412-KA4-711

$9.65

8

BUSH, GUIDE

51414-MAZ-751

$7.14

8

BUSH, GUIDE This part replaces 51414-MN1-671.

51414-MAZ-751

$7.14

9

BUSH, SLIDER This part replaces 51415-KS6-831.

51415-MFN-D01

$31.52

10

CASE, R. (LOWER) (NOT AVAILABLE)

51420-MZ1-003

Unavailable

11

DAMPER, FR. (NOT AVAILABLE)

51430-MZ1-791

Unavailable

12

PIECE, OIL LOCK

51432-MS2-003

$30.07

13

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

14

NUT, LOCK

51451-KS7-003

Unavailable

15

BOLT, FR. FORK

51454-MZ1-003

$87.64

16

SEAL SET, FR. FORK

51490-MZ1-305

$38.79

17

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MZ1-851

Unavailable

18

CASE, L. (LOWER) (NOT AVAILABLE)

51520-MZ1-003

Unavailable

19

BOLT, SOCKET (8X27) (SHOWA)

90116-383-721

$5.13

20

BOLT, STUD (12X43.5) (NOT AVAILABLE)

90127-MR7-611

Unavailable

21

NUT, FLANGE (12MM)

90306-181-761

$6.08

22

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

24

DUST SEAL

91254-ML3-791

$16.10

25

O-RING (35.2X2.4)

91356-KA4-711

$3.76

26

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

27

WASHER, PLAIN (12MM)

94101-12000

$1.49
