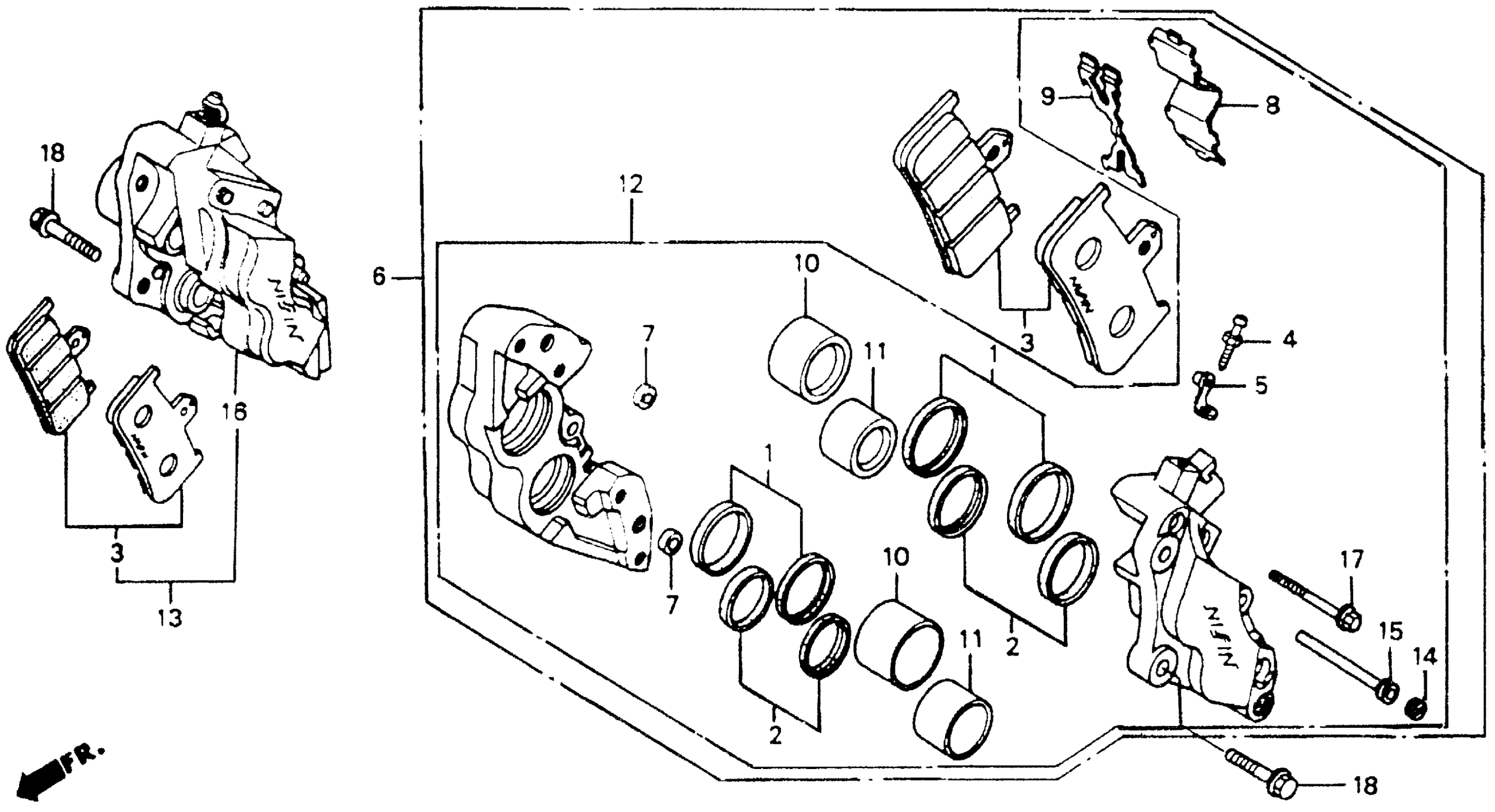

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-KV3-405

$12.11

SEAL SET, PISTON

06451-KV3-406

$12.11

PAD SET, FR. This part replaces 06455-MZ1-405.

06455-MW4-405

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SEAL, JOINT

45103-MR7-006

$3.72

COVER

45104-MR7-006

Unavailable

SPRING, PAD (NOT AVAILABLE)

45106-MZ1-006

Unavailable

PISTON A

45117-MR7-006

$54.33

PISTON

45117-MW0-006

Unavailable

CALIPER SUB-ASSY., L. FR. BRAKE (NOT AVAILABLE)

45150-KV3-305

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

CALIPER SUB-ASSY., R. FR. BRAKE (NOT AVAILABLE)

45250-KV3-305

Unavailable

BOLT, TORX

90107-KV3-701

$6.54

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75
