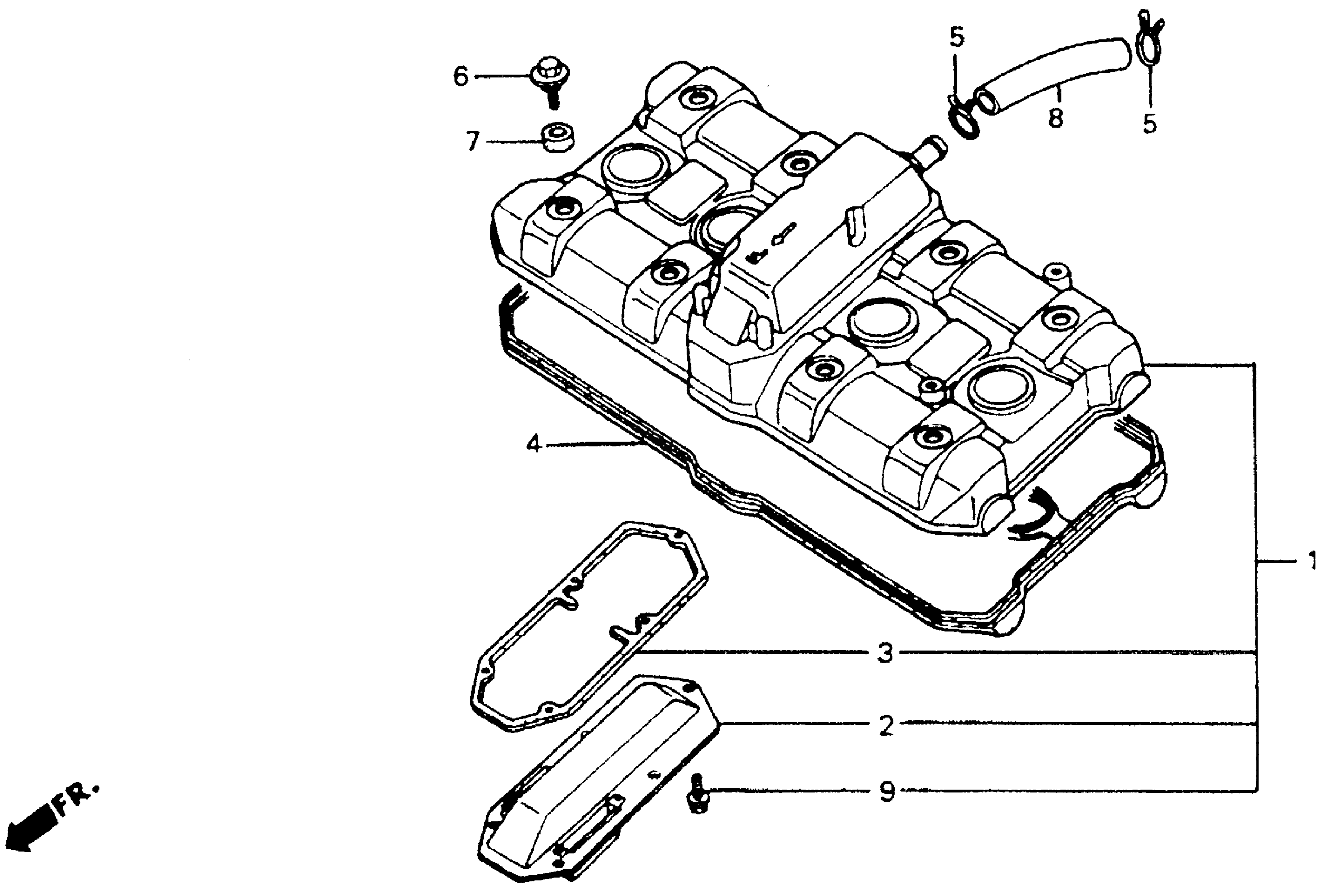

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER ASSY., CYLINDER HEAD (SOURCE: VINTAGE PARTS INC.)

12300-MZ1-000

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

12321-MM5-640

Unavailable

3

GASKET, BREATHER PLATE (NOT AVAILABLE)

12322-MW7-650

Unavailable

4

GASKET, CYLINDER HEAD COVER

12391-MM5-000

Unavailable

5

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

6

BOLT, HEAD COVER This part replaces 90017-KT7-010.

90017-MY9-790

$6.24

6

BOLT, HEAD COVER

90017-MY9-790

$6.24

7

RUBBER, MOUNTING

90543-MV9-670

$4.60

8

BULK HOSE, VACUUM (14X1000) (14X185)

95005-14001-10M

$67.23

9

BOLT, FLANGE (6X14)

95701-06014-08

$1.48
