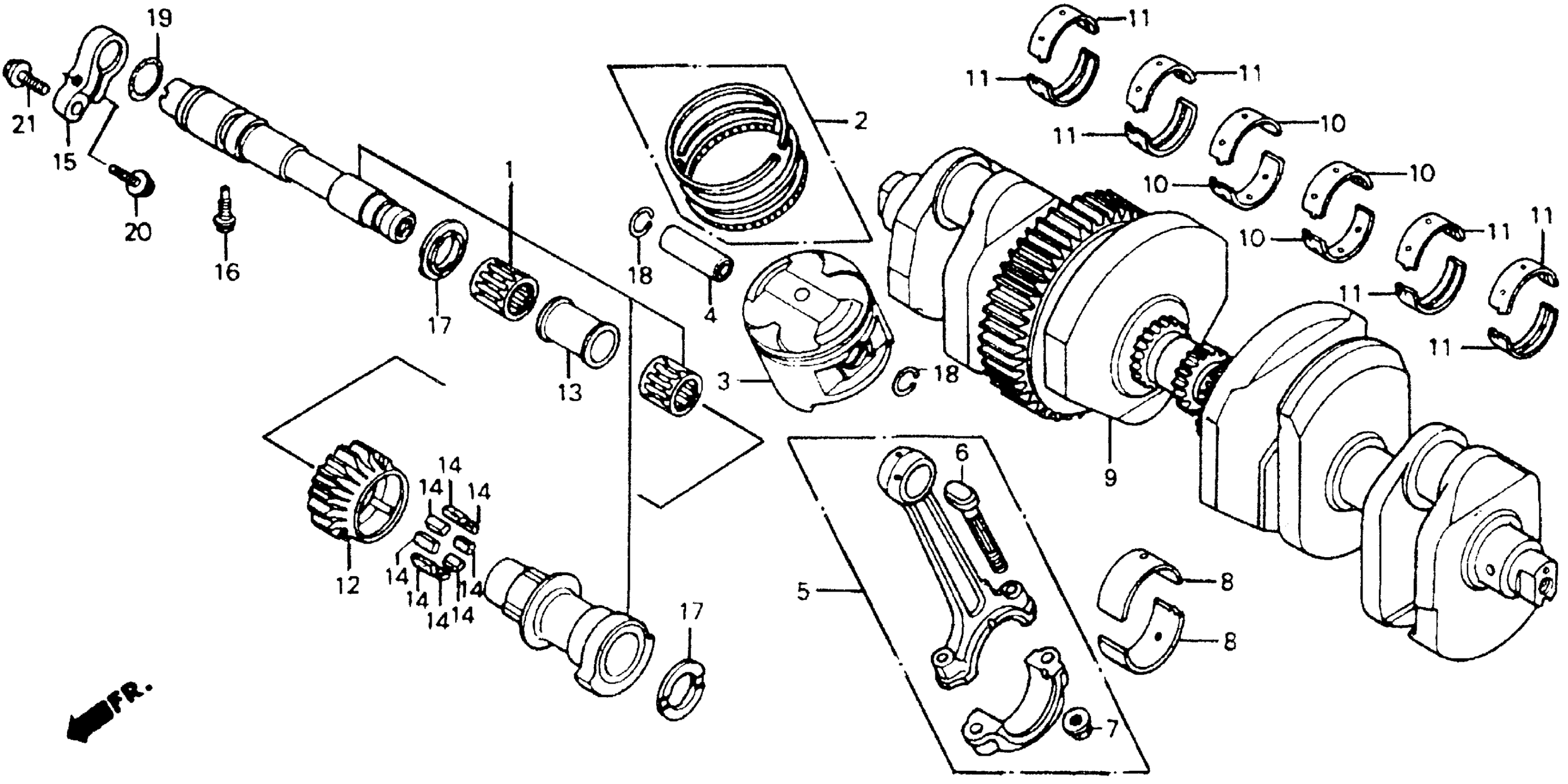

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 CRANKSHAFT Diagram

#

Description
Price

1

BALANCER SET (SOURCE: VINTAGE PARTS INC.)

06130-MS2-305

Unavailable

2

RING SET, PISTON (STD)

13011-MM5-640

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) (NOT AVAILABLE) | (Optional).

13012-MM5-640

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (SOURCE: VINTAGE PARTS INC.) | (Optional).

13013-MM5-640

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-MZ1-000

Unavailable

3

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-MZ1-305

Unavailable

3

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-MZ1-305

Unavailable

4

PIN, PISTON (NOT AVAILABLE)

13111-MZ1-000

Unavailable

5

ROD ASSY., CONNECTING (NOT AVAILABLE)

13210-MZ1-000

Unavailable

6

BOLT, CONNECTING ROD

13213-MS2-610

$9.92

7

NUT, CONNECTING ROD

13215-ML7-000

$3.89

8

BEARING A, CONNECTING ROD (BROWN)

13224-MS2-611

$14.43

8

BEARING B, CONNECTING ROD (GREEN)

13225-MS2-611

$14.43

8

BEARING C, CONNECTING ROD (YELLOW)

13226-MS2-611

$14.43

9

CRANKSHAFT (SOURCE: VINTAGE PARTS INC.)

13300-MS2-871

Unavailable

10

BEARING A, MAIN (14MM) (BROWN)

13311-MM5-003

$14.72

10

BEARING B, MAIN (14MM) (GREEN)

13312-MM5-003

$14.72

10

BEARING C, MAIN (14MM) (YELLOW)

13313-MM5-003

$14.72

10

BEARING D, MAIN (14MM) (PINK)

13314-MM5-003

$14.72

11

BEARING A, MAIN (17MM) (GREEN)

13315-MJ0-010

$10.04

11

BEARING B, MAIN (17MM) (YELLOW)

13316-MJ0-010

$10.16

11

BEARING C, MAIN (17MM) (PINK)

13317-MJ0-010

$10.16

11

BEARING D, MAIN (17MM) (BROWN)

13318-MM5-004

$14.72

12

GEAR, BALANCER (NOT AVAILABLE)

13421-MM5-641

Unavailable

13

COLLAR, DISTANCE

13433-MM5-000

$15.08

14

RUBBER, DAMPER

13435-MM5-000

$2.39

15

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

16

BOLT, SPECIAL (6X18)

90004-MM5-000

$2.23

17

WASHER A, BALANCER SIDE

90457-MM5-000

$5.38

18

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

19

O-RING (16X1.9)

91306-329-000

$2.92

20

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

21

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
