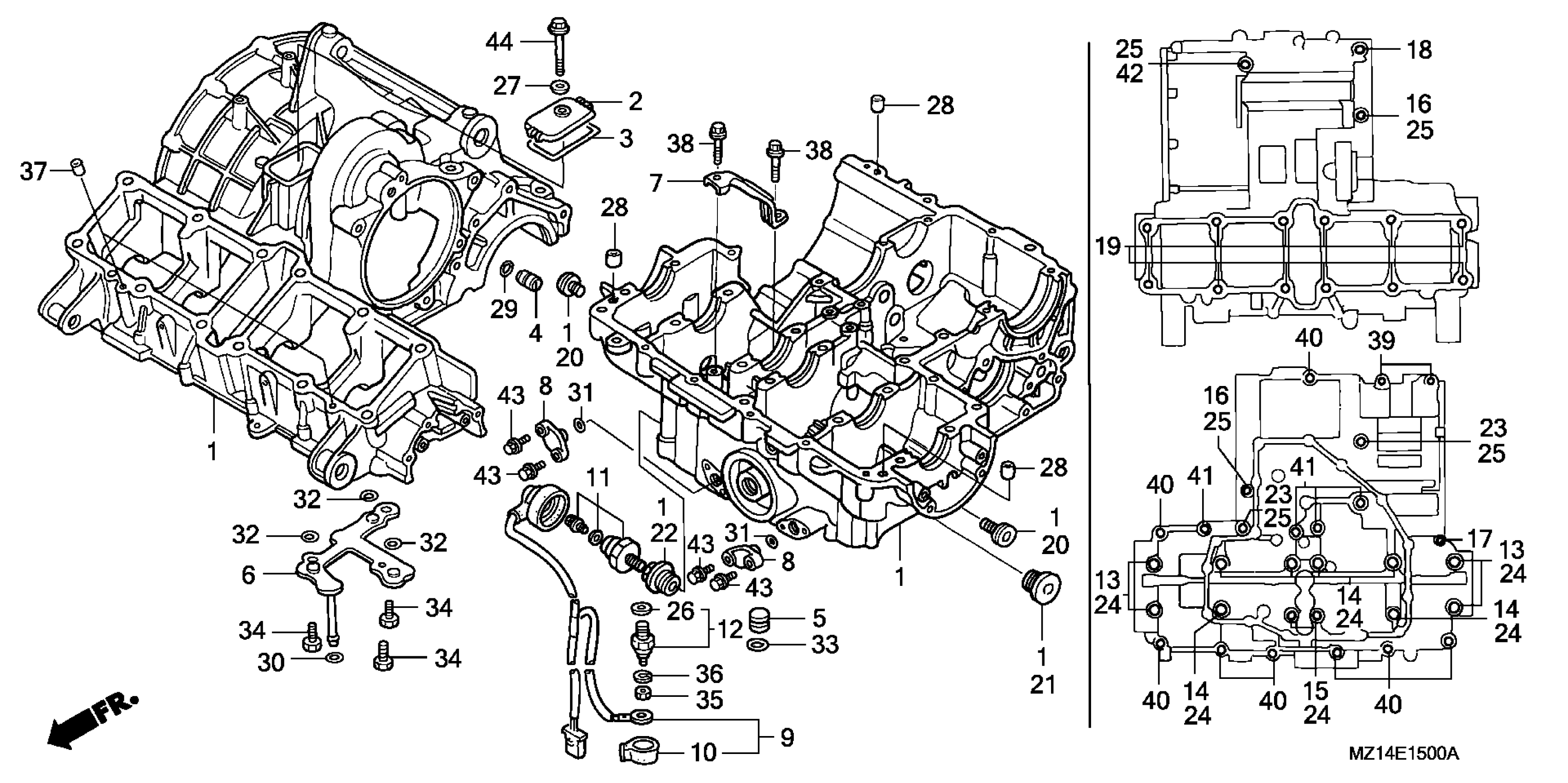

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (NOT AVAILABLE)

11000-MZ1-000

Unavailable

2

COVER, ALTERNATOR CHAMBER (SOURCE: VINTAGE PARTS INC.)

11103-MM5-000

Unavailable

3

GASKET, ALTERNATOR CHAMBER COVER (NOT AVAILABLE)

11104-MM5-000

Unavailable

4

COLLAR, CRANKCASE (UPPER) (NOT AVAILABLE) | Use up to Engine SN 2200762

11105-MS2-610

Unavailable

4

COLLAR, CRANKCASE (UPPER) (NOT AVAILABLE) | Use from Engine SN 2200763

11105-MS2-611

Unavailable

5

COLLAR, MAIN GALLERY (NOT AVAILABLE)

11208-MM5-000

Unavailable

6

PLATE, OIL PASSAGE (NOT AVAILABLE)

12260-MZ1-000

Unavailable

7

GUIDE, OIL PUMP CHAIN (SOURCE: VINTAGE PARTS INC.)

15162-MS2-610

Unavailable

8

CAP, OIL (NOT AVAILABLE)

15540-MZ1-000

Unavailable

9

SUB-HARNESS, ENGINE (NOT AVAILABLE)

32101-MZ1-000

Unavailable

10

COVER, NEUTRAL SWITCH (NOT AVAILABLE)

32550-MJ6-000

Unavailable

11

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

12

SWITCH ASSY., NEUTRAL (TEC)

35600-MM5-003

$18.90

13

BOLT, UBS (9X86) (NOT AVAILABLE)

90001-MM5-000

Unavailable

14

BOLT, UBS (9X131) (NOT AVAILABLE)

90002-MM5-000

Unavailable

15

BOLT, UBS (9X151) (SOURCE: VINTAGE PARTS INC.)

90003-MM5-000

Unavailable

16

BOLT, FLANGE (8X135)

90006-MM5-640

$6.74

17

BOLT, FLANGE (6X93)

90011-MM5-640

$5.75

18

BOLT, FLANGE (10X75)

90015-MM5-640

$5.22

19

BOLT, STUD (10X153) (NOT AVAILABLE)

90032-MM5-641

Unavailable

20

BOLT, SPECIAL (10MM)

90042-MM5-000

$6.39

21

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

22

BOLT, SEALING (20MM)

90048-MAL-600

$11.87

22

BOLT, SEALING (20MM) This part replaces 90048-MM5-000.

90048-MAL-600

$11.87

23

BOLT, FLANGE (8X115) (NOT AVAILABLE)

90069-MC7-000

Unavailable

24

WASHER, SEALING (10MM) (NOT AVAILABLE)

90403-MZ1-790

Unavailable

25

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

26

WASHER, NEUTRAL

90443-MJ6-000

$1.92

27

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

28

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

29

O-RING (3.6X1.4) (NOT AVAILABLE)

91301-MC0-000

Unavailable

30

WASHER, OIL SEAL PATH (ARAI) (NOT AVAILABLE)

91307-MM5-641

Unavailable

31

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

32

O-RING (9X2.3) (NOK)

91313-PC9-003

$3.43

33

O-RING (11.9X2.2)

91370-461-000

$2.39

34

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

35

NUT, HEX. (4MM)

94001-04000-0S

$1.49

36

WASHER, SPRING (4MM)

94111-04800

$1.49

37

PIN, DOWEL (10X16)

94301-10160

$2.28

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

39

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

40

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

41

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

42

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

43

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

44

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
