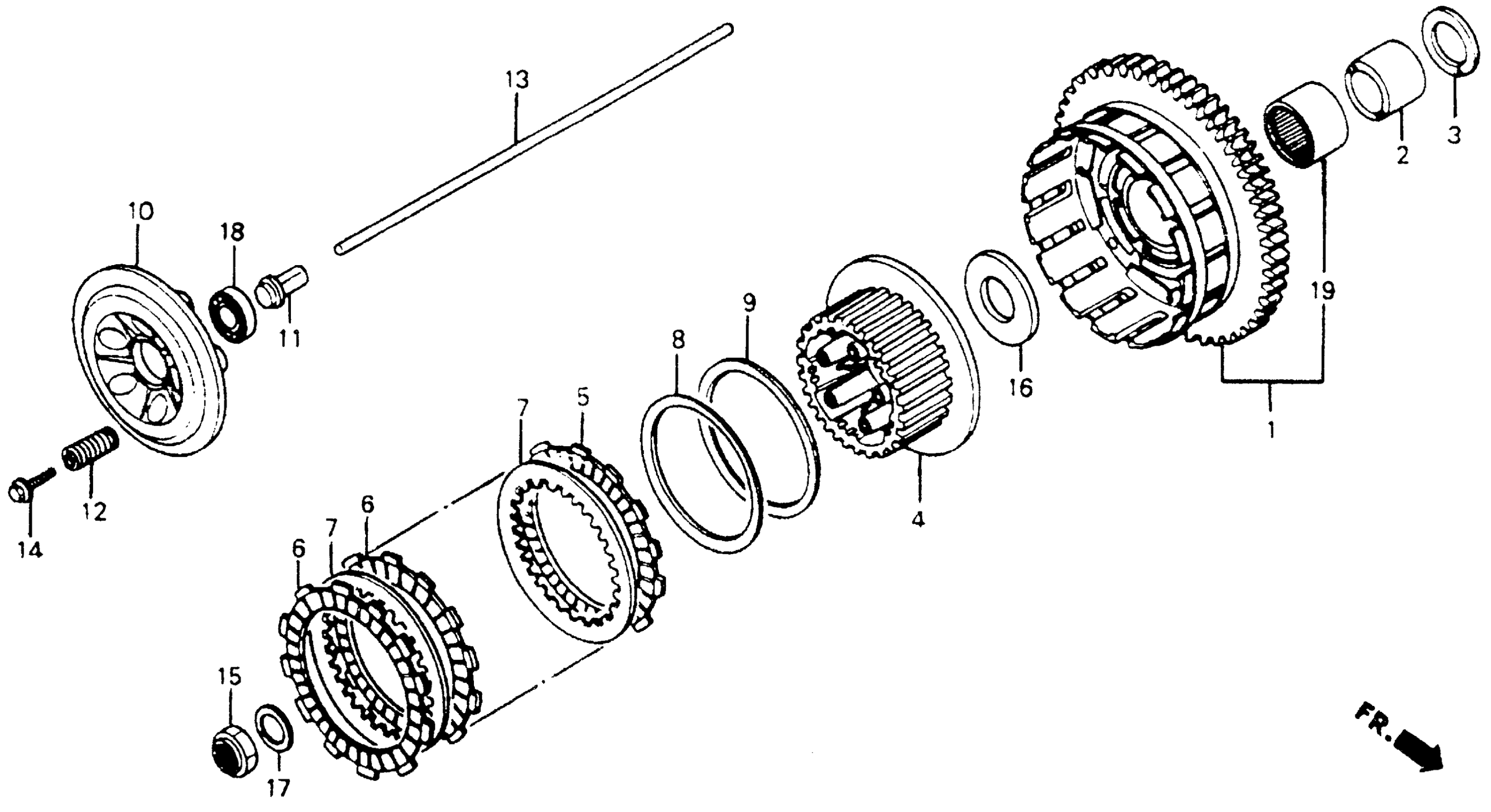

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MS2-870

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-MS2-610

$36.34

3

COLLAR, DISTANCE (NOT AVAILABLE)

22117-MS2-610

Unavailable

4

CENTER, CLUTCH

22120-MS2-610

Unavailable

5

DISK, CLUTCH FRICTION

22201-MA7-000

$15.90

6

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

7

PLATE, CLUTCH This part replaces 22321-ME5-003.

22321-GHB-811

$12.02

7

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

9

SEAT, JUDDER SPRING

22326-MN4-000

Unavailable

10

PLATE, CLUTCH PRESSURE

22350-MM5-000

Unavailable

11

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

12

SPRING, CLUTCH (NOT AVAILABLE)

22401-MZ1-000

Unavailable

13

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MJ0-000

Unavailable

14

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

15

NUT, LOCK (25MM)

90231-MS2-610

$18.78

16

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

17

WASHER, SPRING (25MM) (CHUO SPRING)

90432-MM8-003

$7.70

18

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, NEEDLE (40X47X31)

91024-MM5-003

$86.62
