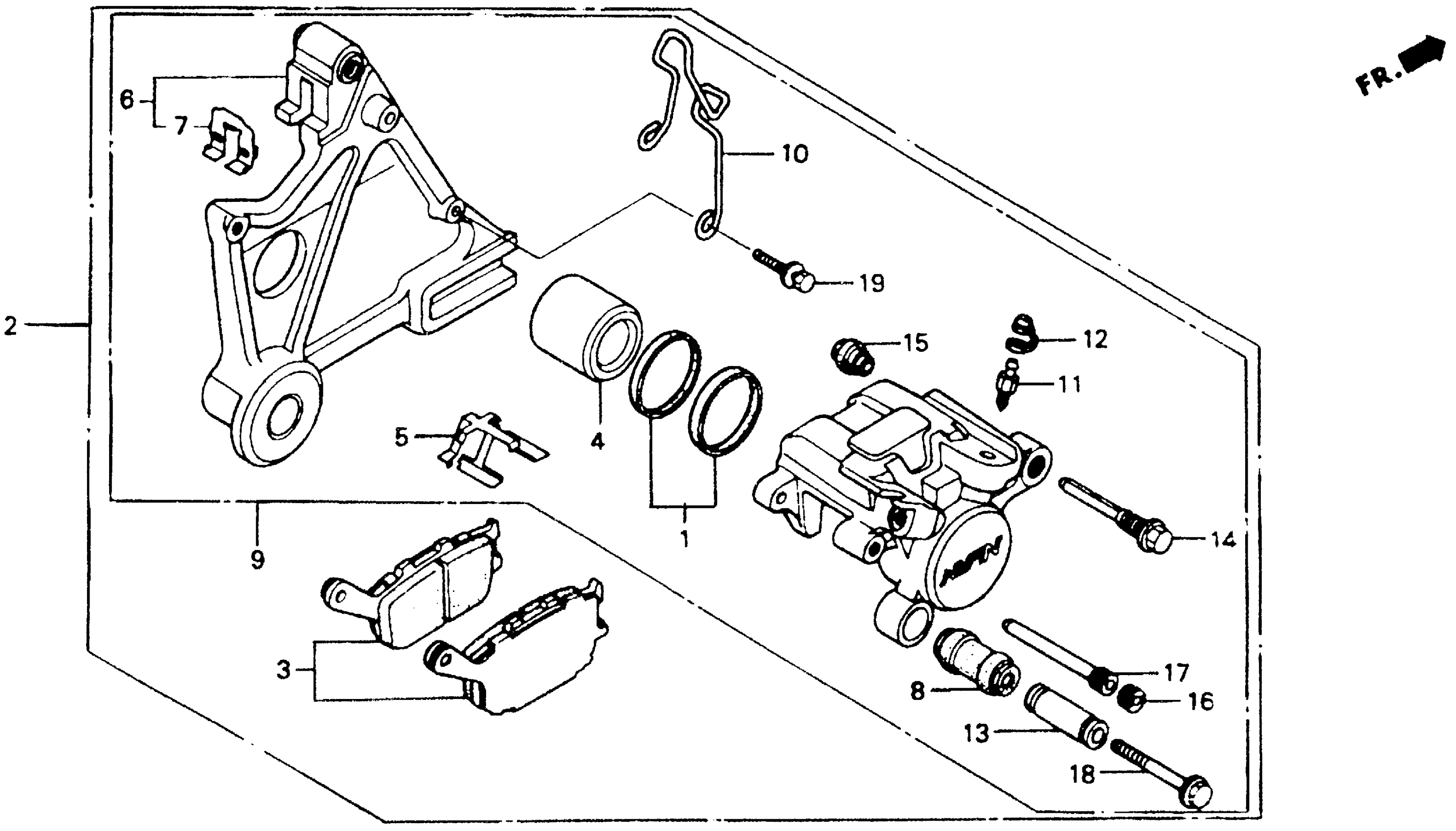

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-443-405

$13.23

CALIPER ASSY., RR. BRAKE (NISSIN) (NOT AVAILABLE)

43100-MZ1-006

Unavailable

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$53.45

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PAD SET, RR.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-KT7-761

$8.68

BRACKET, RR. BRAKE (NOT AVAILABLE)

43110-MZ1-006

Unavailable

RETAINER

43112-MV9-016

$10.65

BOOT, SLEEVE

43132-KT7-761

$8.52

GUIDE, RR. BRAKE HOSE (NOT AVAILABLE)

43350-MW3-600

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

BOLT-WASHER (6X20)

93401-06020-07

$1.62
