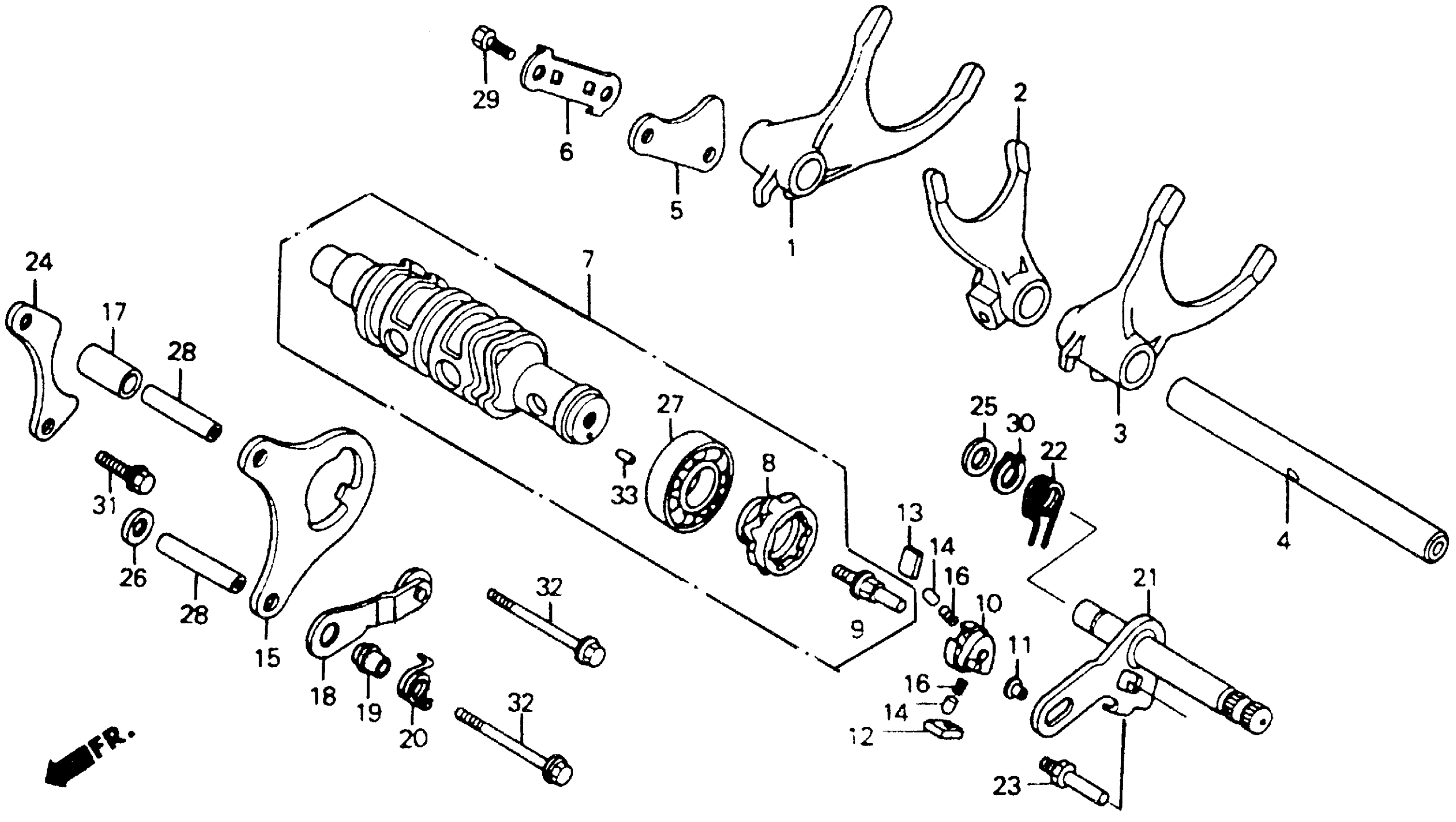

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-MZ1-000

Unavailable

2

FORK, CENTER GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

24212-MS2-610

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-MS2-610

Unavailable

4

SHAFT, GEARSHIFT FORK

24231-MS2-610

$23.38

5

STOPPER, GEARSHIFT FORK SHAFT (NOT AVAILABLE)

24235-MS2-610

Unavailable

6

PLATE, LOCK (NOT AVAILABLE)

24236-MS2-610

Unavailable

7

DRUM, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)

24310-MZ1-000

Unavailable

8

CENTER, GEARSHIFT DRUM This part replaces 24312-KY2-300.

24312-KY2-310

$37.64

8

CENTER, GEARSHIFT DRUM

24312-KY2-310

$37.64

9

PIN, SHIFTER

24315-HA0-000

$12.60

10

SHIFTER, DRUM This part replaces 24321-KT8-010.

24321-KT8-030

$55.03

10

SHIFTER, DRUM This part replaces 24321-KT8-020.

24321-KT8-030

$55.03

10

SHIFTER, DRUM

24321-KT8-030

$55.03

11

COLLAR, SHIFTER

24322-MM4-000

$5.12

12

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

12

PAWL A, RATCHET

24324-KA3-711

$13.21

13

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

13

PAWL B, RATCHET

24325-KA3-711

$13.21

14

PLUNGER, PAWL

24326-KBH-901

$5.81

15

PLATE, GUIDE (NOT AVAILABLE)

24328-MM5-000

Unavailable

16

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

17

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.97

18

STOPPER, DRUM (SOURCE: VINTAGE PARTS INC.)

24430-MM5-000

Unavailable

19

COLLAR, DRUM STOPPER

24434-KT7-000

$9.13

20

SPRING, DRUM STOPPER (SOURCE: VINTAGE PARTS INC.)

24435-MM5-000

Unavailable

21

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-MS2-610

Unavailable

22

SPRING, SHIFT RETURN (NOT AVAILABLE)

24651-KT7-000

Unavailable

23

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

24

PLATE, SHIFT DRUM BEARING SETTING

24655-MM5-000

$11.43

25

WASHER (14MM)

90451-155-000

$3.78

26

WASHER (8MM)

90485-040-000

$1.77

27

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

29

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

30

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

31

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

32

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

32

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

33

ROLLER (4X8)

96220-40080

$1.49
