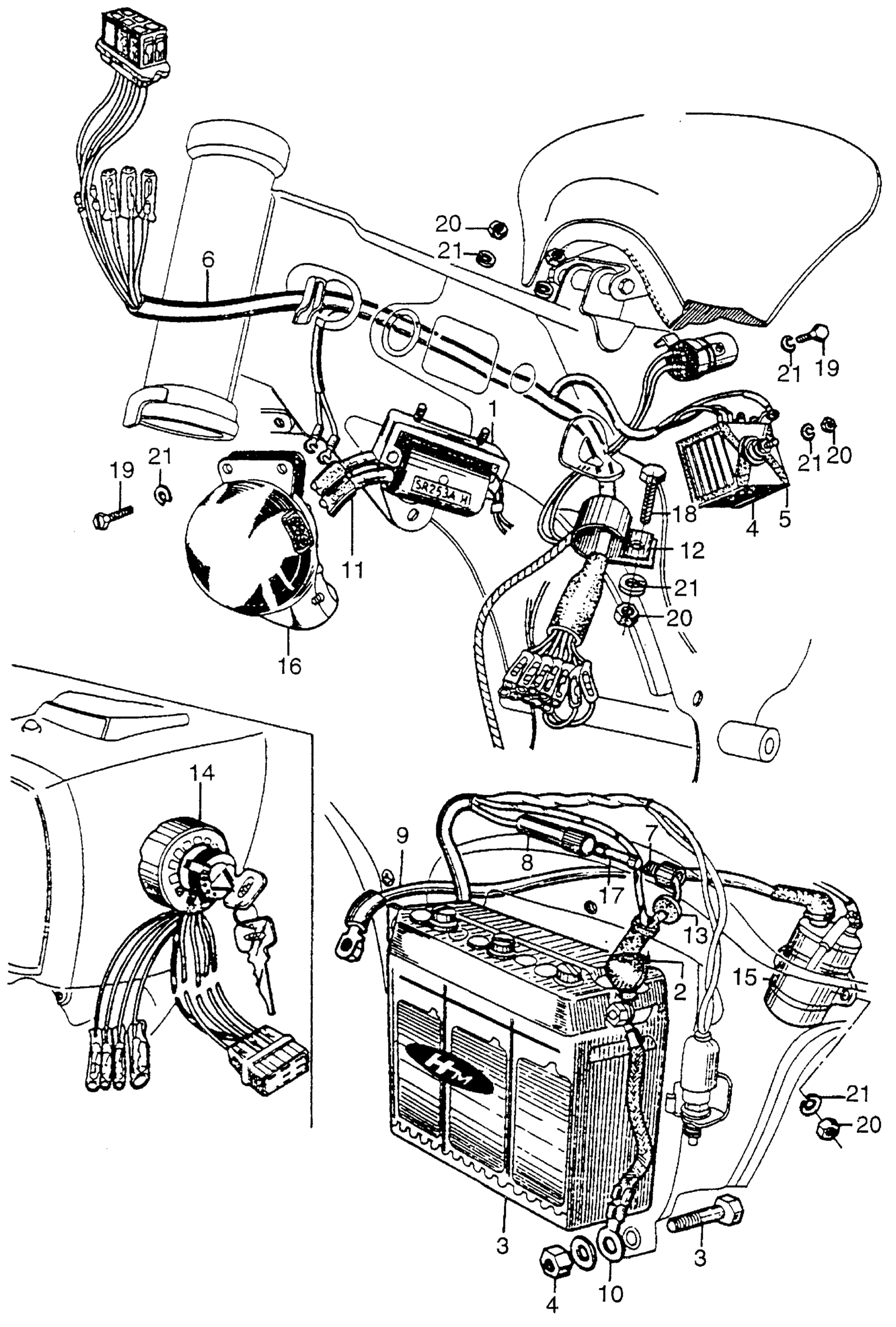

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION (NOT AVAILABLE) This part replaces 30500-202-004.

30500-230-000

Unavailable

1

COIL, IGNITION (NOT AVAILABLE)

30500-230-000

Unavailable

2

COVER, BATTERY TERMINAL (NOT AVAILABLE)

31468-253-000

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE)

31500-201-000

Unavailable

4

RECTIFIER ASSY. (NOT AVAILABLE)

31700-250-000

Unavailable

6

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 3106640

32100-203-010

Unavailable

6

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 3106641

32100-205-305

Unavailable

6

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 3106641 This part replaces 32100-215-000.

32100-205-305

Unavailable

7

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

8

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

9

CABLE, STARTER BATTERY (NOT AVAILABLE)

32402-201-010

Unavailable

10

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-201-000

Unavailable

11

TUBE, COIL WIRE RUBBER (NOT AVAILABLE)

32762-200-010

Unavailable

12

CLIP A, WIRE HARNESS CONNECTOR (NOT AVAILABLE)

32933-250-010

Unavailable

13

GROMMET, WIRE HARNESS This part replaces 32983-001-000.

32983-011-000

$3.31

13

GROMMET, WIRE HARNESS

32983-011-000

$3.31

14

LOCK, HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 3106640

35010-202-000

Unavailable

14

LOCK, HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 3106640 This part replaces 35100-202-000.

35010-202-000

Unavailable

14

LOCK, HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 3106640 This part replaces 53600-202-003.

35010-202-000

Unavailable

15

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE) This part replaces 35850-201-000.

35850-205-000

Unavailable

15

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-205-000

Unavailable

16

HORN ASSY. | Use up to Frame SN 3106640 This part replaces 38100-200-000.

38100-200-004

Unavailable

16

HORN ASSY. (NOT AVAILABLE) | Use from Frame SN 3106641 This part replaces 38100-212-000.

38100-212-004

Unavailable

16

HORN ASSY. (NOT AVAILABLE) | Use from Frame SN 3106641

38100-212-004

Unavailable

17

FUSE A (15A) This part replaces 38201-250-000.

98200-11500

$1.49

17

FUSE A (15A)

98200-11500

$1.49

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49
