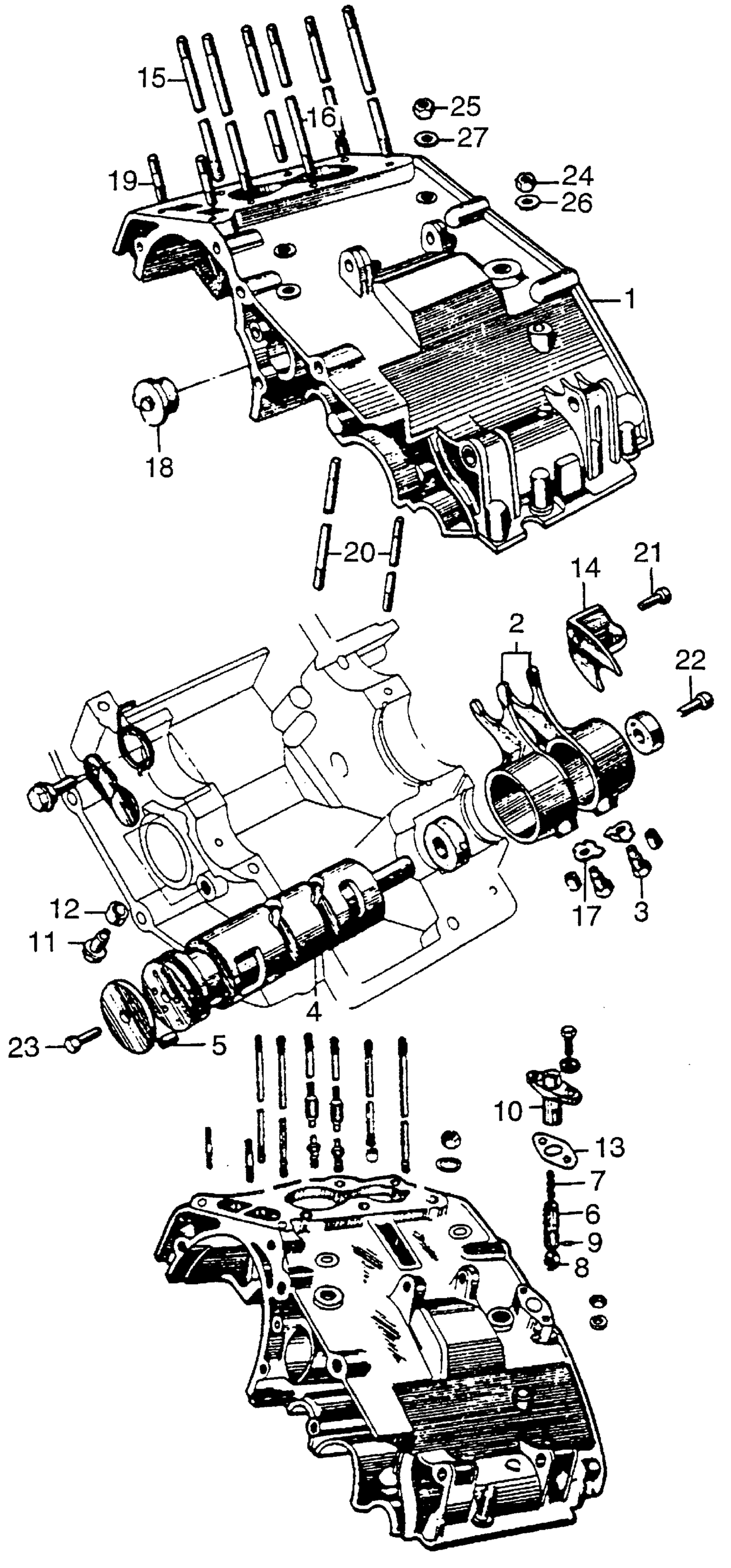

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 UPPER CRANKCASE + SHIFT DRUM Diagram

#

Description
Price

NI

CAP, BREATHER (NOT AVAILABLE) | Use up to Engine SN 1101007

15715-202-000

Unavailable

NI

COLLAR, BREATHER CAP (NOT AVAILABLE) | Use up to Engine SN 1101007

15716-202-000

Unavailable

NI

BODY, BREATHER (NOT AVAILABLE) | Use up to Engine SN 1101007

15721-202-000

Unavailable

NI

SPRING, BREATHER BODY SET (NOT AVAILABLE) | Use up to Engine SN 1101007

15727-205-000

Unavailable

NI

VALVE, BREATHER (NOT AVAILABLE) | Use up to Engine SN 1101007

15731-202-000

Unavailable

NI

SPRING, BREATHER VALVE (NOT AVAILABLE) | Use up to Engine SN 1101007

15732-201-000

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 010139 to 011037

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 2100001

11101-205-100

Unavailable

2

FORK, GEARSHIFT

24211-205-000

Unavailable

3

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-216-000

Unavailable

4

DRUM, GEARSHIFT

24301-203-000

Unavailable

5

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

5

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

6

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24431-205-000

Unavailable

7

SPRING, DRUM STOPPER

24435-205-000

Unavailable

8

ROLLER, SHIFT DRUM STOPPER (NOT AVAILABLE)

24436-205-000

Unavailable

9

PIN, SHIFT DRUM STOPPER ROLLER

24437-205-000

Unavailable

10

GUIDE, DRUM STOPPER (NOT AVAILABLE)

24441-205-000

Unavailable

11

SCREW, SHIFT DRUM GUIDE (NOT AVAILABLE)

24445-200-000

Unavailable

12

COLLAR, SHIFT DRUM GUIDE (NOT AVAILABLE)

24446-200-000

Unavailable

13

GASKET, DRUM STOPPER GUIDE (NOT AVAILABLE)

24449-205-000

Unavailable

14

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-200-000

Unavailable

15

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90031-200-000

Unavailable

16

BOLT C, CYLINDER STUD (NOT AVAILABLE)

90033-205-000

Unavailable

17

WASHER, SHIFT FORK PIN LOCK (NOT AVAILABLE)

90416-200-000

Unavailable

18

RUBBER, SEALING (26MM) (NOT AVAILABLE) | Use up to Engine SN 4008339

90802-200-000

Unavailable

18

RUBBER, SEALING (26MM) (NOT AVAILABLE) | Use from Engine SN 4008340

90802-200-010

Unavailable

19

BOLT, STUD (6X27) (NOT AVAILABLE)

92700-06027

Unavailable

20

BOLT, STUD (6X113)

92700-06113

Unavailable

21

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

21

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

22

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

22

SCREW, PAN (6X20)

93500-06020-0A

$1.49

23

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

23

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

25

NUT, HEX. (8MM)

94030-08000

$1.49

25

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49
