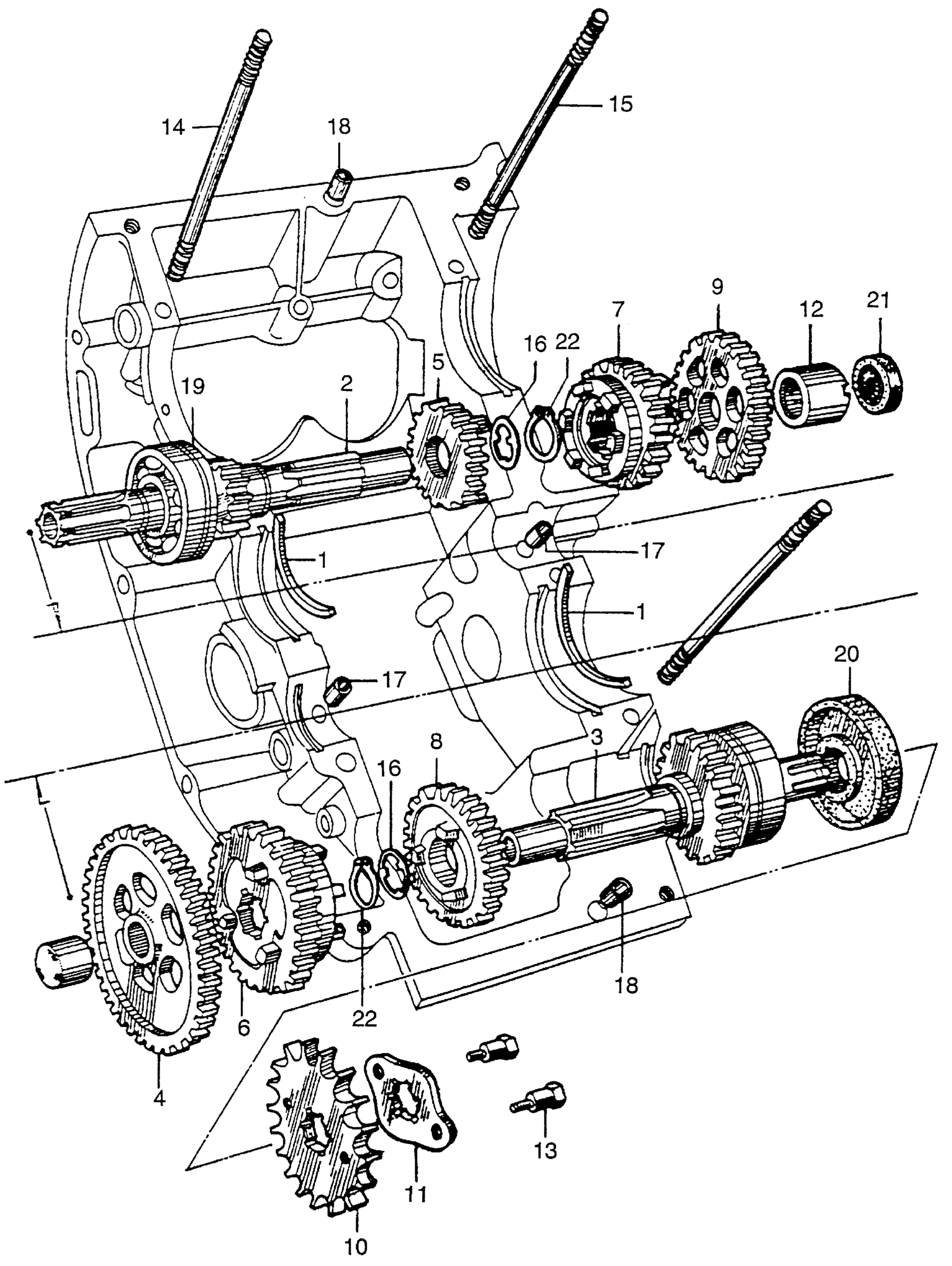

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 TRANSMISSION Diagram

#

Description
Price

1

SET-RING B, BALL BEARING (NOT AVAILABLE)

13492-200-000

Unavailable

2

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 1100514

23211-205-010

Unavailable

2

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 1100515 to 4011076 This part replaces 23211-205-020.

23211-205-030

Unavailable

2

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 1100515

23211-205-030

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 1100514

23221-205-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 1100515

23221-205-010

Unavailable

4

GEAR, LOW TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 1100515

23420-205-010

Unavailable

5

GEAR, SECOND MAINSHAFT (NOT AVAILABLE)

23430-205-000

Unavailable

6

GEAR, SECOND COUNTERSHAFT

23441-205-000

Unavailable

7

GEAR, THIRD MAINSHAFT

23451-205-000

Unavailable

8

GEAR, THIRD COUNTERSHAFT

23460-205-000

Unavailable

9

GEAR, TOP TRANSMISSION | Use up to Engine SN 1100514 This part replaces 23470-205-000.

23470-205-010

Unavailable

9

GEAR, TOP TRANSMISSION

23470-205-010

Unavailable

10

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

10

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

10

SPROCKET, DRIVE This part replaces 23801-028-000.

23801-121-000

Unavailable

10

SPROCKET, DRIVE This part replaces 23801-030-010.

23801-121-000

Unavailable

10

SPROCKET, DRIVE (15T) This part replaces 23801-030-811.

23801-KC6-000

Unavailable

10

SPROCKET, DRIVE This part replaces 23801-046-000.

23801-121-000

Unavailable

10

SPROCKET, DRIVE This part replaces 23801-052-010.

23801-121-000

Unavailable

10

SPROCKET, DRIVE (14T) This part replaces 23801-107-760.

23801-KF9-505

$38.11

10

SPROCKET, DRIVE

23801-121-000

Unavailable

10

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

11

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE) | Use up to Engine SN 010866 This part replaces 23811-200-010.

23811-206-000

Unavailable

11

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE) | Use up to Engine SN 5019831

23811-206-000

Unavailable

12

BUSH, BEARING A (15MM) (NOT AVAILABLE)

23931-200-000

Unavailable

13

BOLT, DRIVE SPROCKET FIXING (NOT AVAILABLE) | Use from Engine SN 010867 to 5012895

90025-205-000

Unavailable

14

BOLT, STUD (8X139)

90062-200-000

Unavailable

15

BOLT, STUD (8X111) (NOT AVAILABLE)

90063-200-010

Unavailable

16

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90451-200-000

Unavailable

17

DOWEL (6MM) (NOT AVAILABLE)

90702-200-000

Unavailable

18

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

OIL SEAL (20X47X10) (NOT AVAILABLE)

91202-200-000

Unavailable

21

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

21

OIL SEAL (8X25X8) (ARAI) This part replaces 91206-200-000.

91204-MB0-013

$4.06

21

OIL SEAL (8X25X8) (ARAI) This part replaces 91206-200-005.

91204-MB0-013

$4.06

22

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

22

CIRCLIP, OUTER (20MM) This part replaces 94510-20120.

94510-20000

$1.49
