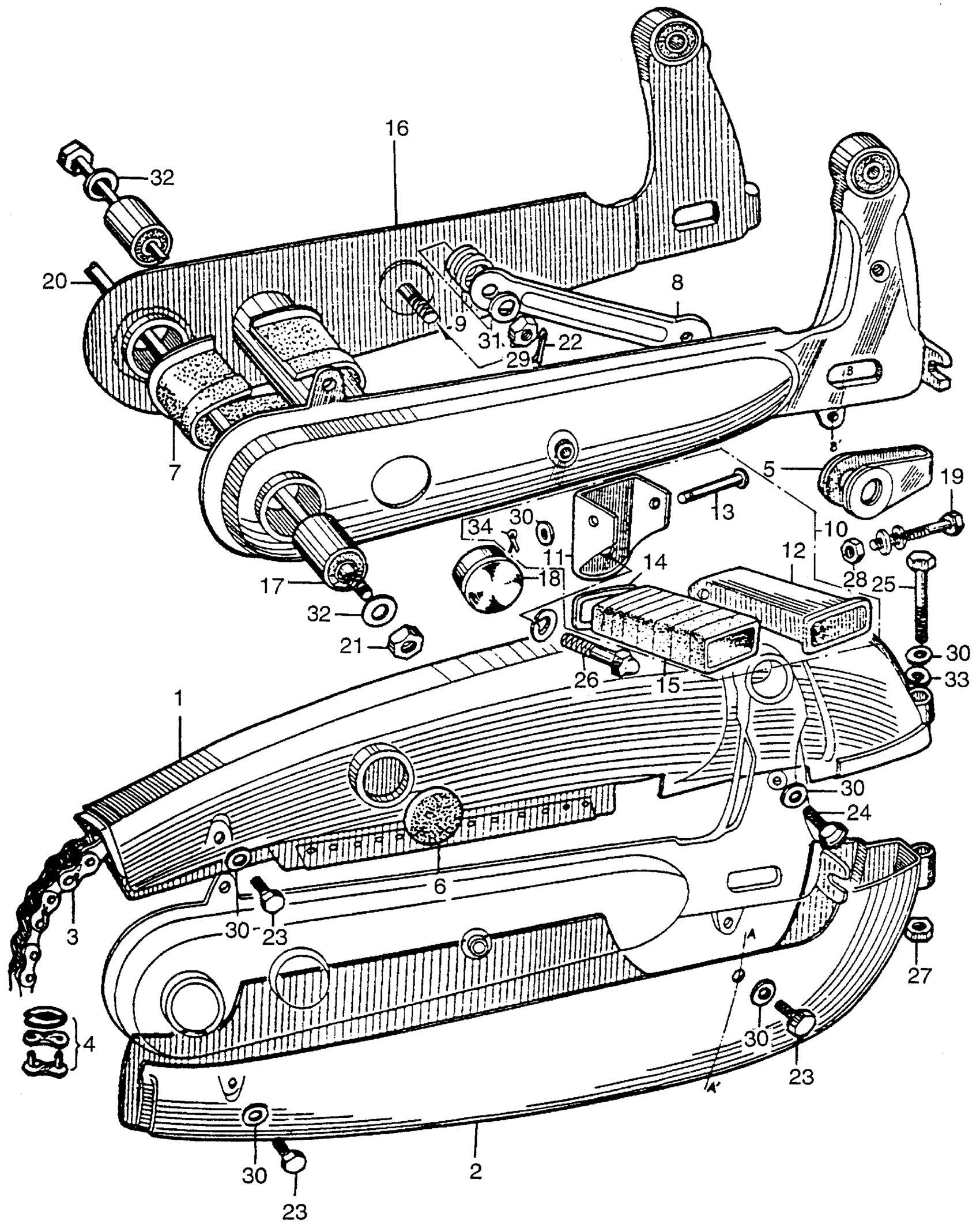

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (UPPER) (NOT AVAILABLE) This part replaces 40510-202-010Z.

40510-212-000Z

Unavailable

1

CASE, DRIVE CHAIN (UPPER) (NOT AVAILABLE)

40510-212-000Z

Unavailable

2

CASE, DRIVE CHAIN (LOWER) (NOT AVAILABLE) This part replaces 40520-202-010Z.

40520-212-000Z

Unavailable

2

CASE, DRIVE CHAIN (LOWER) (NOT AVAILABLE)

40520-212-000Z

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 5018871

405W3-KA8-505

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 5018871 This part replaces 40530-219-005.

405W3-KA8-505

Unavailable

3

CHAIN, DRIVE (104L) (DAIDO) | Use from Frame SN 5018871 This part replaces 40530-440-950.

405W3-KA8-505

Unavailable

4

MASTER LINK (NOT AVAILABLE)

40531-200-000

Unavailable

5

ADJUSTER, L. DRIVE CHAIN (NOT AVAILABLE)

40542-202-000

Unavailable

5

ADJUSTER, R. DRIVE CHAIN (NOT AVAILABLE) This part replaces 40543-202-010.

40543-205-000

Unavailable

5

ADJUSTER, L. DRIVE CHAIN (NOT AVAILABLE)

40544-212-000

Unavailable

6

CAP, CHAIN CASE

40545-001-000

$3.67

7

GASKET, DRIVE CHAIN CASE (NOT AVAILABLE)

40591-200-000

Unavailable

8

TORQUE LINK, RR. BRAKE

43131-200-000

Unavailable

9

SPRING, STOPPER ARM

43434-250-000

$2.00

10

STEP ASSY., PILLION (NOT AVAILABLE)

50700-257-010

Unavailable

11

STAY, PILLION This part replaces 50702-257-010.

50702-256-000

Unavailable

12

BAR, PILLION STEP (NOT AVAILABLE)

50706-257-000

Unavailable

13

PIN, PILLION STEP (NOT AVAILABLE)

50713-257-000

Unavailable

14

SEAT, PILLION STEP RUBBER (NOT AVAILABLE)

50716-257-000

Unavailable

15

RUBBER, PILLION STEP (NOT AVAILABLE)

50718-257-000

Unavailable

16

SWINGARM This part replaces 52100-203-000Z.

52100-203-305Z

Unavailable

16

SWINGARM

52100-203-305Z

Unavailable

17

BUSH, RUBBER SWINGARM PIVOT (N/A: SEE ASSEMBLY)

52119-250-000

Unavailable

18

CAP, CROSSMEMBER SIDE (NOT AVAILABLE)

52161-200-000

Unavailable

19

BOLT, CHAIN ADJUSTER (NOT AVAILABLE)

90119-205-000

Unavailable

20

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-200-000

Unavailable

21

NUT, SWINGARM (NOT AVAILABLE)

90308-250-000

Unavailable

22

CLIP, LATCH (10MM) (NOT AVAILABLE) This part replaces 90652-200-000.

90652-253-000

Unavailable

22

CLIP, LATCH (10MM) (NOT AVAILABLE)

90652-253-000

Unavailable

23

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.84

23

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.84

23

BOLT, HEX. (6X8)

92101-06008-0B

$1.84

24

BOLT, HEX. (6X14) (SOURCE: VINTAGE PARTS INC.)

92000-06014-02

Unavailable

25

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

25

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

25

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

26

BOLT, CAP (10X30) (SOURCE: VINTAGE PARTS INC.)

92500-10030-02

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06020.

94001-06020-0S

$1.49

28

NUT, HEX. (6MM)

94001-06020-0S

$1.49

29

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

29

NUT, HEX. (10MM)

94002-10000-0S

$4.06

29

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

WASHER, PLAIN (10MM)

94101-10000

$1.49

32

WASHER, PLAIN (12MM)

94101-12000

$1.49

32

WASHER, PLAIN (12MM) This part replaces 94101-12000-00.

94101-12000

$1.49

32

WASHER, PLAIN (12MM) This part replaces 94101-12200.

94101-12000

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49
