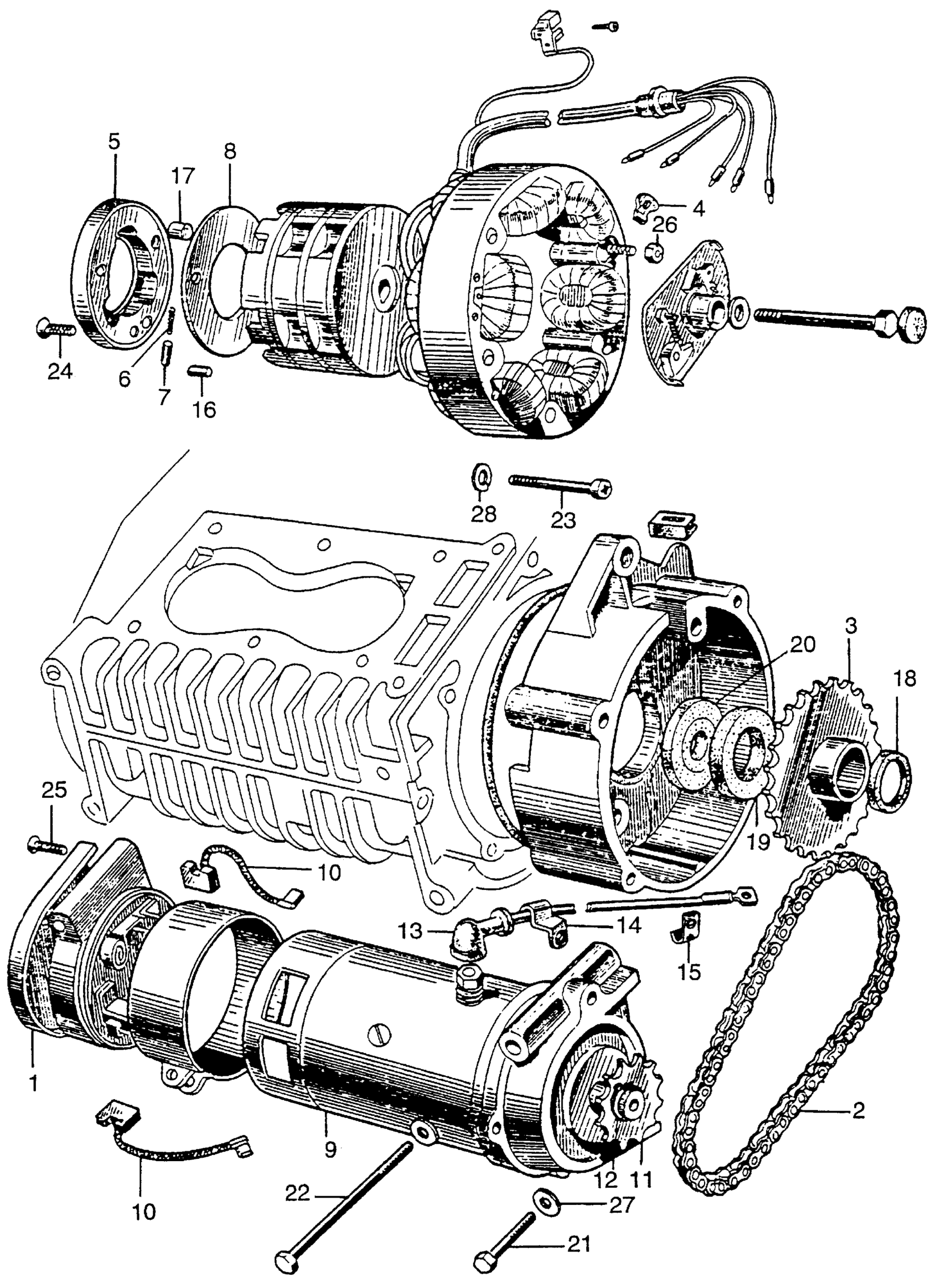

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 STARTER MOTOR Diagram

#

Description
Price

1

COVER, STARTER MOTOR SIDE (NOT AVAILABLE)

11641-201-020

Unavailable

2

CHAIN, STARTER (DK219H) (NOT AVAILABLE)

28101-201-003

Unavailable

3

SPROCKET, STARTER (NOT AVAILABLE)

28110-201-020

Unavailable

4

PLATE, STARTER SPROCKET SET (NOT AVAILABLE)

28117-201-000

Unavailable

5

CLUTCH, STARTER (OUTER)

28120-201-040

$87.06

6

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

8

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

9

MOTOR ASSY., STARTER | Use from Engine SN 1100002

31200-201-054

Unavailable

10

BRUSH, STARTER MOTOR CARBON (NOT AVAILABLE)

31201-253-014

Unavailable

11

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-253-003

Unavailable

11

SPROCKET, STARTER MOTOR (NOT AVAILABLE) This part replaces 31202-253-004.

31202-253-003

Unavailable

12

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-003.

94510-13000

$1.49

12

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-004.

94510-13000

$1.49

12

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

13

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-201-000

Unavailable

14

CLAMP A, STARTER CABLE (NOT AVAILABLE)

32911-201-000

Unavailable

15

CLAMP B, STARTER CABLE (NOT AVAILABLE)

32912-201-000

Unavailable

16

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

16

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

17

ROLLER (10.2X9.5)

91101-253-020

$3.98

18

OIL SEAL (18X27X5) (SC TYPE) (NOT AVAILABLE)

91201-201-000

Unavailable

19

OIL SEAL (28X38X5.5) (VC-TYPE) (NOT AVAILABLE)

91207-201-010

$13.10

20

OIL SEAL (17.9X38X5) (NOT AVAILABLE)

91305-202-010

Unavailable

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

22

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

22

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

23

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

23

SCREW, PAN (6X50)

93500-06050-0A

$1.49

24

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

24

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

25

SCREW, OVAL (5X12) This part replaces 93700-05012.

93700-05012-0A

$1.49

25

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49
