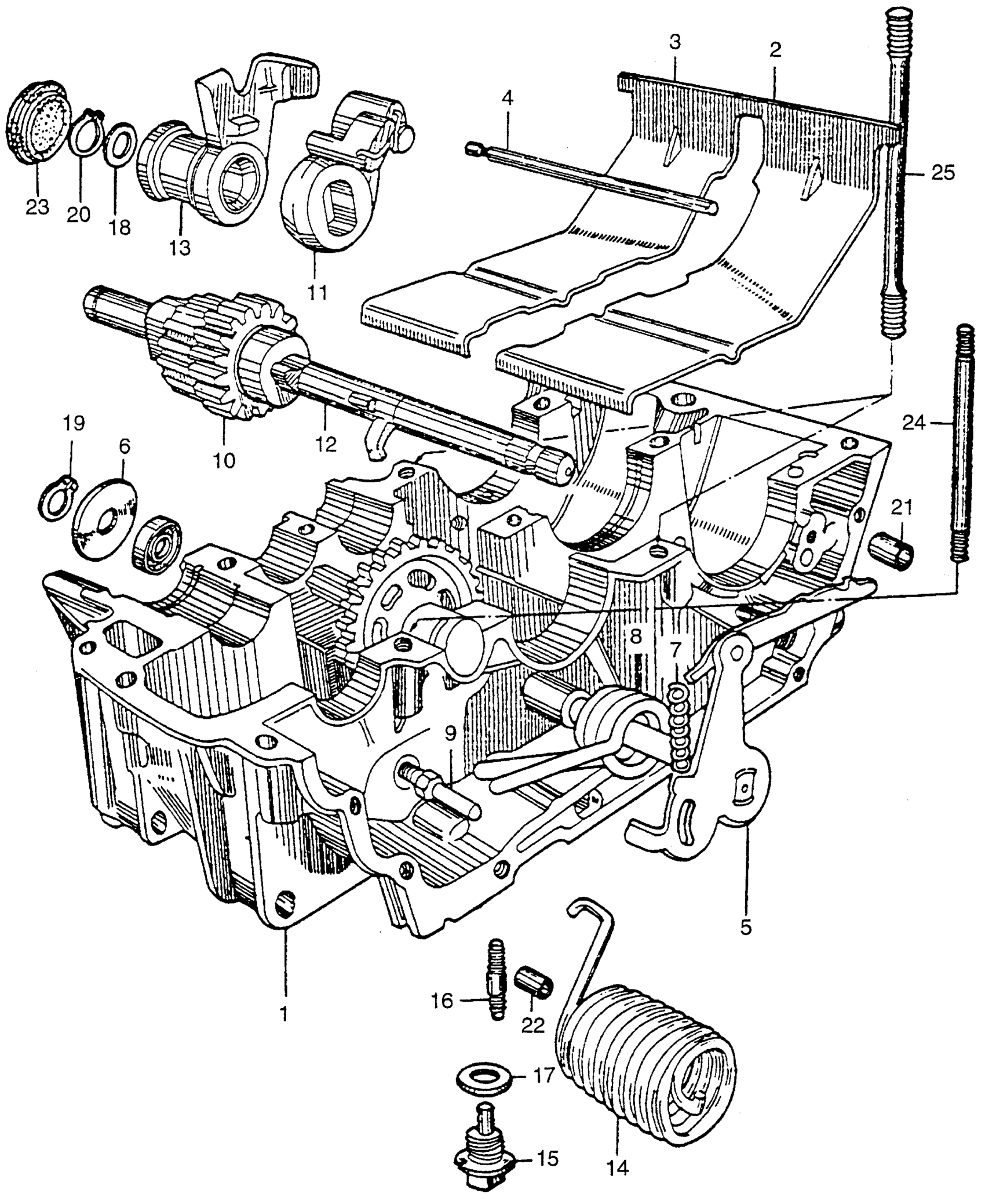

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 LOWER CRANKCASE + KICK STARTER Diagram

#

Description
Price

1

CRANKCASE (LOWER) | Use up to Engine SN 1101007 This part replaces 11200-203-000.

11200-203-020

Unavailable

1

CRANKCASE (LOWER) | Use up to Engine SN 1101007

11200-203-020

Unavailable

1

CRANKCASE (LOWER) | Use from Engine SN 2100001

11200-203-020

Unavailable

2

SEPARATOR, R. OIL (NOT AVAILABLE)

11761-205-000

Unavailable

3

SEPARATOR, L. OIL (NOT AVAILABLE)

11771-205-000

Unavailable

4

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-200-000

Unavailable

5

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-201-000

Unavailable

6

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

7

SPRING, GEARSHIFT ARM This part replaces 24641-200-000.

24641-216-000

$2.70

7

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

8

SPRING, GEARSHIFT RETURN

24651-200-000

Unavailable

9

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

10

PINION, KICK STARTER (NOT AVAILABLE)

28211-205-000

Unavailable

11

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-200-010

Unavailable

12

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-200-000

Unavailable

13

BUSH, KICK STARTER SPINDLE (NOT AVAILABLE)

28258-200-000

Unavailable

14

SPRING, KICK STARTER (NOT AVAILABLE)

28261-200-000

Unavailable

15

BOLT, DRAIN VALVE This part replaces 90013-205-000.

90013-230-000

Unavailable

15

BOLT, DRAIN VALVE

90013-230-000

Unavailable

16

BOLT, STUD (8X32) (NOT AVAILABLE)

90064-200-000

Unavailable

17

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

17

GASKET, DRAIN

90407-367-690

$4.15

18

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

18

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

19

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

20

CIRCLIP, OUTER (15MM) This part replaces 90604-200-000.

94510-15000

$1.49

20

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

21

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

90701-200-000

Unavailable

22

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

22

PIN A, DOWEL (10X14)

94301-10140

$2.28

23

RUBBER, SEALING (30MM) (NOT AVAILABLE)

90803-200-000

Unavailable

24

BOLT, STUD (6X93) (NOT AVAILABLE)

92700-06092

Unavailable

24

BOLT, STUD (6X93) (NOT AVAILABLE) This part replaces 92700-06093.

92700-06092

Unavailable

25

BOLT, STUD (8X110) (NOT AVAILABLE)

92700-08110

Unavailable
